- Page 1 DanX Pool AF User Manual Rev. 2.3 - 961405...
- Page 2 Der tages forbehold for trykfejl og ændringer Dantherm can accept no responsibility for possible errors and changes Irrtümer und Änderungen vorbehalten Dantherm n’assume aucune responsabilité pour erreurs et modifications éventuelles...
-
Page 3: Table Of Contents
0. TABLE OF CONTENTS 1. General ................................. 3 1.1 Introduction .............................. 3 1.2 Foundation for the unit ..........................3 1.3 Minimum distances ..........................3 2. Transportation ............................. 4 2.1 Unloading ..............................4 2.2 Lifting with a forklift ..........................4 2.3 Lifting with a crane ..........................5 2.4 Storage .............................. - Page 4 0. TABLE OF CONTENTS 5. Maintenance ............................... 19 5.1 Introduction ............................19 5.2 Maintenance plan ..........................19 5.3 Cabinet ..............................19 5.4 Fans ............................... 20 5.4.1 Centrifugal fans ..........................20 5.4.2 Plug fans ............................20 5.5 Filter ............................... 21 5.6 Heating coil ............................21 5.7 Fresh air damper ...........................
-
Page 5: General

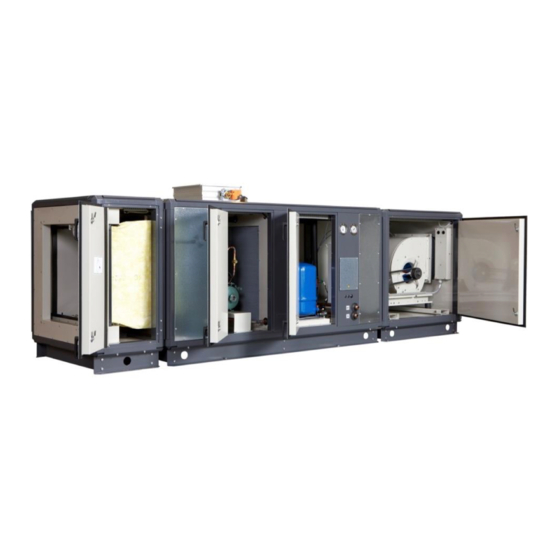

1. GENERAL 1. General 1.1 Introduction The DanX - AF equipment is designed mainly for the use for ventilation, humidity and temperature control in private and public swimming pool areas. The use of the unit includes the required inspection and maintenance for these units, which is described in the back of this manual. -
Page 6: Transportation
• Check the packing and modules for transport damage and report immediately any damage to the driver and to Dantherm Air Handling. • Retain the packing until the sections/modules are placed on the mounting location to avoid damages on cabinet parts or connecting pieces that overhang. -
Page 7: Lifting With A Crane
2. TRANSPORTATION 2.3 Lifting with a crane Never stand under a module when it is lifted with a crane as there always is a risk that the crane or helping material can be damage! Serious injuries or death can be the result! When lifting the modules with a crane, be aware of the following general points: •... -
Page 8: Installation
If the DanX - AF is delivered with an outside air damper a separate fan (not delivered by Dantherm) has to be mounted to extract the same amount of air from the swimming pool hall as the DanX - AF takes in through the outside air intake in the top of the unit to keep the air volume in the swimming pool hall in balance. -
Page 9: Installation Of Modules
3. INSTALLATION 3.3 Installation of modules Before placing the single modules in the right order, accordingly to chapter 3.2 the wooden crossbeams or pallets have to be removed and the separate delivered feet mounted on the base frame. To do so the following has to be done: •... - Page 10 3. INSTALLATION After placing all modules in the right order on the floor, the modules have to be assembled. Follow the following points to mount the modules: • Adjust the height of the modules with the help of the adjustable feet, so that all modules are in level and in same height.
-
Page 11: Duct Mounting
3. INSTALLATION 3.4 Duct mounting The ducts connected to the AHU have to be suspended or underpinned with support elements as the duct connection panel of the unit is not strong enough to hold the duct work. The ducts can be connected to the DanX with flexible connections (optional accessory) to suppress vibrations of the unit. -
Page 12: Installation And Connection Of Components
3. INSTALLATION 3.6 Installation and connection of components Before starting up and commissioning the DanX AF unit it is important to have installed all components of the air handling unit correctly. All installation and connection work should only being carried out by trained specialists or by people supervised by authorized staff. -
Page 13: Water Cooled Condenser
3. INSTALLATION 3.6.3 Water cooled condenser As an option the heat pump in a DanX AF unit can be fitted with a water-cooled condenser, so that any surplus heat, which can not be used for heating up the supply air, can be transferred to the pool or sanitary water. -
Page 14: Installation Of Electrical Components
3. INSTALLATION 3.7 Installation of electrical components If the DanX AF unit is equipped with an MVC 80 electrical panel, the component has to be installed in the following way. The functions of the MVC 80 panel are explained in a separate instruction manual. -
Page 15: Frequency Inverter For Ac Fan Motors
It is the responsibility of the user or installer to ensure correct earthing and protection in accordance with national and local standards. Frequency inverters delivered by Dantherm Air Handling are found in the fan section, where they are stored under transport. Unpack the frequency inverters and mount them either on a special framework on the fan section or in another place next to the DanX unit, depending on what has been ordered. -
Page 16: Commissioning
4. COMMISSIONING 4. C ommissioni ng 4.1 Introduction When working on air-handling unit always turn off the electricity on the main switch and repair switch (complete shut) and secure for reconnection from unauthorized persons. Only open the inspection doors when the unit is totally stopped and the fans have come to a stand still. -
Page 17: Plug Fan
4. COMMISSIONING 4.3 Plug fan To commission the plug fans for the first time, the following actions have to be taken: • Check that the four measuring probes below the pressure transmitter are blanked. • Check if the transportation brackets have been removed. •... -
Page 18: Pressure Transducer
4. COMMISSIONING (C) Navigation key and indicator lights 6. Not used in DanX 7. Inverter working LED 8. Warning LED 9. Alarm LED 10. Moving one step back 11. Manoeuvring between parameters 12. Selecting and accepting parameters (D) Operation keys and indicator lights 13. -
Page 19: Air Volume Check
4. COMMISSIONING If the green LED is flashing the reason could be that the + and – tube have been switched when connecting to the pressure transducer. Please check this first. Another reason for the green LED flashing can be that the pressure range setting is wrong. Change of setting can be done with the potentiometer (SW2). -
Page 20: Cooling Circuit
4. COMMISSIONING 4.4. Cooling circuit To commission the cooling circuit for the first time, the following actions have to be taken: • Check if the drain pipes have been installed correctly (see 3.6.1) and if the drip tray inside the unit is clean. •... -
Page 21: Maintenance
5. MAINTENANCE 5. M aintenanc e 5.1 Introduction For optimum operation conditions and a long life it is necessary to perform preventive maintenance on the various unit parts within the stipulated intervals (see 5.2). When working on air-handling unit always turn off the electricity on the main switch and repair switch (complete shut down) and secure for reconnection from unauthorized persons. -
Page 22: Fans
5. MAINTENANCE 5.4 Fans The following general steps should be taken to maintain the centrifugal or plug fans of the unit: • Check the fan wheel for unbalance (every 3 month). • Check the fan and motor bearings for unusual noise (every 3 month). •... -
Page 23: Filter
5. MAINTENANCE 5.5 Filter Every 6 month the filters should be checked on damage/leakages and dirt. The following steps should be taken: • Check the filter for dirt and damage. • Measure the pressure loose over the filter which should not be higher than 150 Pa (G3/G4) or 250 Pa (F5/F7). -
Page 24: Cooling Circuit
If you are in doubt about the condition of the cooling circuit, stop the compressor at once to avoid damage and call a cooling technician or the Dantherm service. -
Page 25: Faultfinding
6. FAULTFINDING 6. F aultfi ndi ng 6.1 Introduction Normally a fault of the unit will be shown in the display of the electric panel. Depending on which panel has been delivered these alarm messages can be called differently. Please refer to the manual of the electric panel for more details. -
Page 26: Disposal
7. DISPOSAL 7. Dis posal 7.1 Disposal of the unit Removal and disposal of the unit may only be performed by appropriate personnel! Before decommissioning and dismantling the equipment you have to shut down all supply lines like electricity and hot water. Make sure that there is not water-glycol mixture leaking out. Empty the heating coil for the water-glycol mixture before removing it from the unit. -
Page 27: Appendix
8. APPENDIX 8. Appendix 8. Parameter settings FC 101 Parameter Description Value Function / unit Comment 1-00 Configuration Process open loop 1-03 Torque characteristic Variable torque medium 1-20 Motor power * See motor plate 1-22 Motor voltage 1-23 Motor frequency 1-24 Motor current * See motor plate... - Page 31 +(0) 121 133 70 infodk@dantherm.com dantherm.no@dantherm.com infose@dantherm.com www.dantherm.com www.dantherm.no www.dantherm.se Dantherm Air Handling (Suzhou) Ltd. Dantherm Limited Dantherm Air Handling Inc. Bldg#9, No.855 Zhu Jiang Rd., 12 Windmill Business Park 110 Corporate Drive, Suite K Suzhou New District, Jiangsu Windmill Road, Clevedon...
- Page 32 Dantherm A/S Marienlystvej 65 7800 Skive Denmark www.dantherm.com service@dantherm.com...
