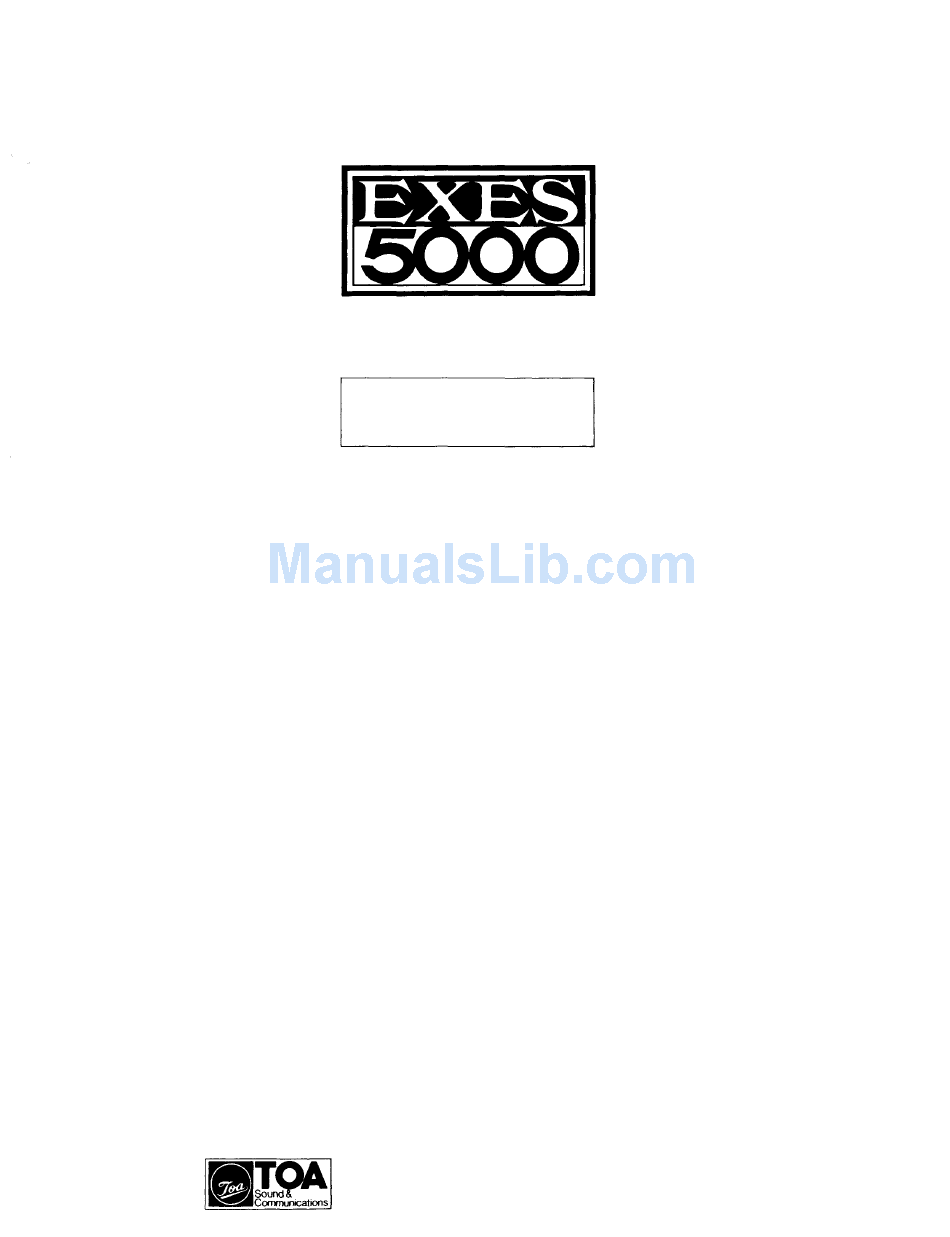

INTERCOM SYSTEM
CPU-55
Functions and

Operating Instructions

TOA ELECTRIC CO, LTD.
KOBE, JAPAN
133-02-475-1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EXES-5000 CPU-55 and is the answer not in the manual?

Questions and answers

Related Manuals for Toa EXES-5000 CPU-55

Summary of Contents for Toa EXES-5000 CPU-55

  • Page 1: Operating Instructions

    INTERCOM SYSTEM CPU-55 Functions and Operating Instructions TOA ELECTRIC CO, LTD. KOBE, JAPAN 133-02-475-1...
  • Page 2 Part names and functions on the station keyboard Volume switch Adjusts the vol u me of the station speaker. Pocket Pager response Conference Mic off Pocket Pager call Personal number cancellation Call Back Conference call clearance Clear entry during call Single digit dialing All-call paging response *The station number consists of from 200~ or 20~.

  • Page 3: Table Of Contents

    Function of the EXES-5000 CPU-55 Function Automatic line release Camp-on-busy Privacy Camp-on-privacy Press-to-talk (PTT) Mic off Personal number call Single digit dialing Master Sub relationship Secretary transfer Call transfer Priority Executive priority Continuous calling tone Talk back Conference Selectable calling tone duration...
  • Page 4 Classification Function Press-to-talk Continuous calling tone PRIVACY Privacy Privacy off PRIVACY Secretary transfer Secretary transfer off Single digit registration Single digit dialing Personal number registration Personal number cancellation Personal number call Call Confernce Conference clear Mic o f f Priority/priority response Executive priority Call transfer Camp-on-busy...
  • Page 5 Classification Function All-call plus 7-zone paging All-call plus 15-zone paging Combination paging Paging All-call response Zone paging response Conversation Paging transfer Conversation after response Personal number registration/cancellation operation In/Out annunciation — lamp on/off One-shot make output Make/break output Data Transmitting 8-selectable output (Decimal output) Receiving Unit...
  • Page 6 Classification of Functions Classification Function Station numbers (sequencial station numbers): Group Blocking max. of 8 groups The following system are available: (1) Group Programmable Restricted function: Restricted Access (1) Conference (2) All-call paging for Stations. (3) General purpose controls: * 4 decimal digits output Different (1) Emergency all-call paging types of paging...

  • Page 7: Automatic Line Release

    Automatic Line Release When, in dialing, all of the numbers are not dialed within 5 seconds, the station is automatically disconnected from the speech path and dialing cannot be completed. In this instance, the dialing process will have to be repeated from the beginning.

  • Page 8: Camp-On-Privacy

    Camp-On Privacy When the party you are calling has his station on Privacy mode, by simply waiting you will automatically "Camp- On" the line. (Busy tone sounds continuously.) As soon as the Privacy mode is released, you will be automatically connected.

  • Page 9: Personal Number Call

    Personal Number Call A personal number may be registered at any master station which the person to whom the number is assigned expects to be. A party wishing to receive personal number calls at a specific station may register his number at that station by touch dialing Personal Number.

  • Page 10: Single Digit Dialing

    Single Digit Dialing Single digit registration Register in advance as follows: Any four digits Any three digits Any two digits Single digit dialing When required, dial and the registered number will be called automatically. Note: 1. Any function dialing with long operation may be shortened by Single Digit Dialing.

  • Page 11: Master Sub Relationship

    Master Sub Relationship Master/Substation associations are set up by using station #200 as the programming station. Once these relationships have been established, substations can then contact their designated master stations by simply touch dialing With respect to this function, the stations in the system are divided into two categories;...

  • Page 12: Secretary Transfer

    Secretary Transfer This function is only available when a specified station is programmed for this purpose with use of Station #200 in the programming mode. Automatic transfer of incoming calls by an executive to his secretary is accomplished by placing the Privacy Switch on his station in the ON position. This function allows a secretary to accept all incoming calls placed to an executive.

  • Page 13: Call Transfer

    Call Transfer Call Transfer from Called Station During the conversation, first dial (the Station Number of the person the call is to be trans- ferred to). The original call is then held and the holding tone is trans- mitted to the other party, while the third party is called and asked whether he will accept the call.

  • Page 14: Priority

    Priority When the party called is on the line, as indicated by the busy tone, dialing transmits a priority tone to the called party. The same tone is audible at the calling station. The call is connected if the called party also responds by dialing In this event, the original conversation partner of the party called is temporarily placed on hold and the holding tone is transmitted to his station.

  • Page 15: Continuous Calling Tone

    Continuous Calling Tone When a specified station receives a call, the calling tone continues until PTT bar is depressed by this party. 1. When calls cannot be answered immediately or when it is difficult to hear a normal calling tone due to high back- ground noise, the station should be provided with the continuous calling tone function.
  • Page 16 Conference A "Hands-Free" conference call can be made with up to 4 persons. For a conference under this function the other participants may be called either through their station num- ber, personal number or by Single Digit Dialing. Addition of stations or personal numbers (total of only 4) may be added by anyone already connected.

  • Page 17: Selectable Paging Pre-Announcement Tone Duration

    Selectable Calling-Tone Duration The duration of the calling tone can be set for either a ''long" (1.3-second) or a "short" (0.7 second). Selectable Paging Pre-Announcement Tone Duration The duration of the all-call and zone paging tones can be set for either a "long" (2-second) or a "short" (1-second). Paging A variety of paging modes allows paging over a wide area from any master station.

  • Page 18: Other Paging Modes

    Other Paging Modes 1. Combination paging Combination paging is used when several zones must be paged simultaneously through External PA or Station paging. A special paging area can be created wherever the paging ranges overlap by combining several zones. A maximum of 10 combinations can be created in this way from a maximum of 1 5 individual zones.

  • Page 19: How To Select The Paging Area And Make The Paging Call

    How to select the paging area and make the paging call. Paging functions may includes both external PA and sta- tions, depending on the zone being used. The paging area is limited to individual zone, Combination paging and All-call paging depending on the call range. Paging area External PA paging All-call and maximum...

  • Page 20: All-Call Paging And Individual Zone Paging

    Such registration is required for both external and station paging. For further details, please refer to Installation Hand Book for EXES-5000 CPU-55. Table of stations used for individual zone paging. (Example) Zone...

  • Page 21: Combination Paging

    Combination Paging Several zones can be called simultaneously using external PA paging and station paging. This is combination paging and is initiated by pressing broadcast to predetermined zones. It is possible to wait for a response in this mode, but it is usually preferable to ter- minate the paging call and wait for a response.

  • Page 22: Emergency All-Call Paging

    To operate combination paging, No. 200 registration indi- cating the individual zones to be included in the combina- tion zone-must be made. For further details, refer to Installation Hand Book for EXES-5000 CPU-55. Table of zones included in combination zones (Example) Combination zone Emergency All-Call Paging The emergency all-call station, No.

  • Page 23: Paging Priority

    Paging Priority When using the standard paging functions, paging is not heard while other calls are in progress. Using paging priority: 1. Dial (zones: 1—7,all-call: 0), (zones: 01—15, all-call: 00), or (combination zones: 90—99). When the station being paged is already on the line, the call is interrupted.

  • Page 24: Digit Dialing

    This registration is also re- quired when station paging priority is unnecessary. For further details, see Installation Hand Book for EXES-5000 CPU-55. Note 5: Use of both station paging priority and external paging: Station paging priority interrupts calls in stations of zones 1 through 7 for both station and external paging.

  • Page 25: Programmable Station Numbering

    4. This function is programmed at station No. 200. Please see Installation Instructions for EXES-5000 CPU-55. 5. People operating the intercom stations need not be aware of the Hardwired station numbers. However, care must be taken when programming using station No.

  • Page 26: Group Blocking

    To use this function, station No. 200 programming of the allocated station number, group, paging zone, etc., must be set up in the exchange. For further details, please refer to Installation Hand Book for EXES-5000 CPU-55. Function registration (A) Function registration (B) Group No.

  • Page 27: Programmable Restricted Access For Stations

    The other members of the conference need not be allowed conference access. 2. No. 200 programming of the specified station must be made in the exchange. For further details, please refer to Installation Hand Book for EXES-5000 CPU-55. — 26 —...

  • Page 28: Receiving Units Calling Party Indication

    2. The in/out indication panel must be used with the Data Transmitting and Receiving Units (DT-E11 and DR-B61). 3. For further details, please refer to Installation Hand Book for EXES-5000 CPU-55 and Instructions for the Data Transmitting and Receiving Units. Calling Party Indication (Lamp Type)
  • Page 29 Calling Party Indication (7-SEG Display Type) A numerical type calling party indication panel can be provided for certain specified stations (32 stations from No. 200 to No. 231). 1. The party receiving the call is indicated in the area for the calling station number with 7 segment display.

  • Page 30: General Purpose Control

    General Purpose Control Station may be restricted from access to this function. This function can control other equipments by employing the Data Transmitting and Receiving Units. Select the required type of output. (Mode 1) One-shot make output Dial (000 ~ 499, max. of 500 contacts) and the relay output is made for 1 to 2 seconds.
  • Page 31 Note 1: In the event that an error has been made when dialing for Transfer or Conference, at the start of or during the conversation, dial This will restore the condition before the error was made, allowing the caller to make a correction without interrupting the call.
  • Page 32 TOA ELECTRIC CO., LTD. KOBE, JAPAN...
