TOA INTERCOM SYSTEM
EXES-6000
Function Specifications

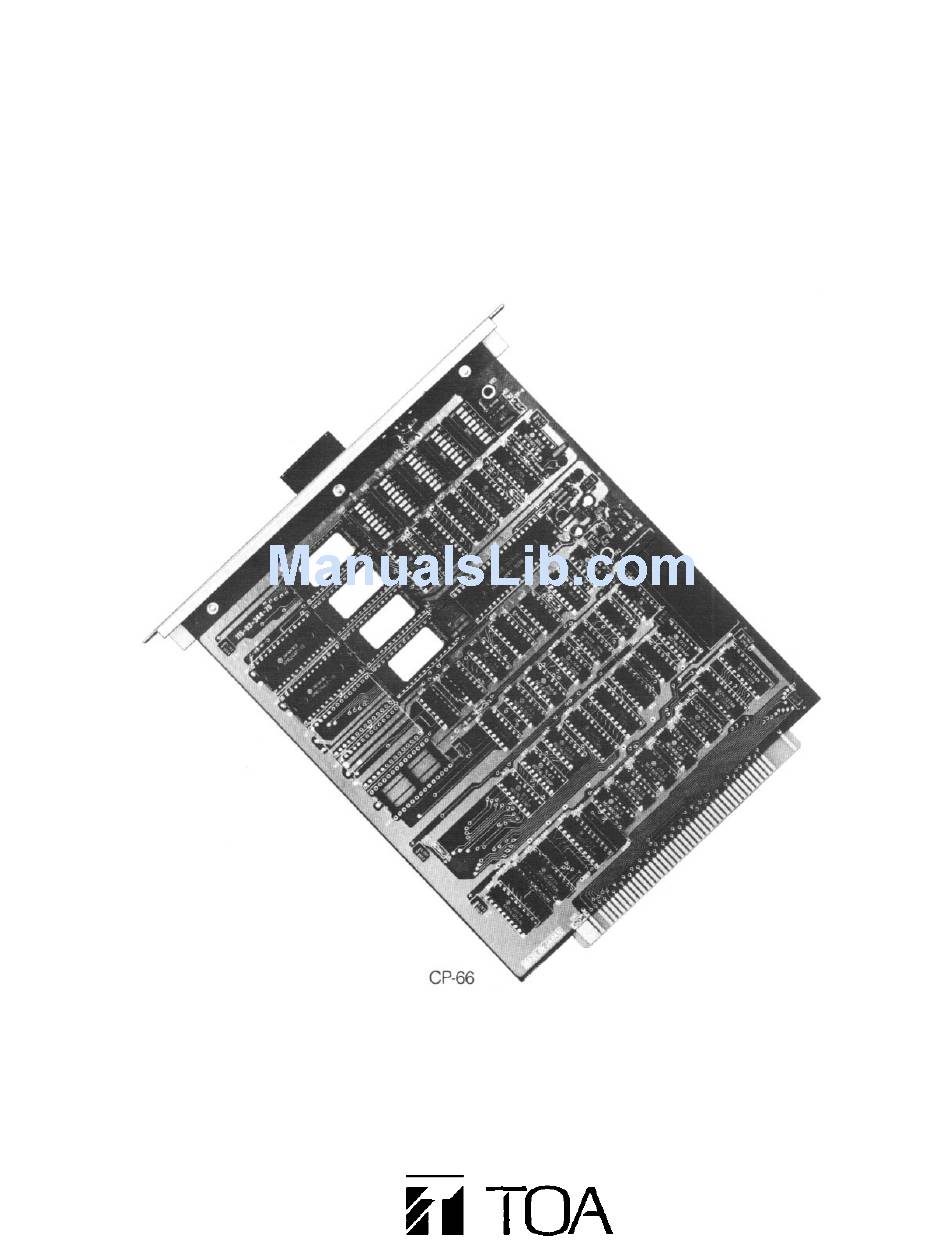

Central Processing CP-66

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CP-66 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Toa CP-66

Summary of Contents for Toa CP-66

  • Page 1 TOA INTERCOM SYSTEM EXES-6000 Function Specifications Central Processing CP-66...

  • Page 2: General Description

    The program memory of the Microcomputerized Central Processing Units determines for the most part the system composition and functions. With the CP-66, EXES-6000 (one exchange system: Maximum line capacity is 256) can provide not only a very wide range of functions but also the capabilities of connecting to telephone lines and PBX.
  • Page 3 3. Link Capacity A) Single exchange system (no tie-line function is used.) Normal links... Expandable to 16 links (without conference) Conference Links Expandable to 4 links (with 8 normal links) Number of Unit installed Number of Links Available DL-62A CL-62A Normal Link Classification Function...
  • Page 4 EXES-6000 4. Numbering Schedule for Stations and 1) Standard schedule (when personal Nos. are provided) Type of exchange System Without paging EX-610 200~263 EX-1 (Single) EX-620 200~327 EX-630 200~455 EX-610 200~247, 256~263 EX-620 200~311, 320~327 EX-2A/EX-3A EX-630 200~455 EX-610 470~517, 526~533 EX-620 470~581, 590~597 EX-2B/EX-3B...

  • Page 5: Function Specifications

    Function Specifications Besides fixed standard functions, there are selectable standard functions and optional functions. Selectable standard functions can be selected by changing over the CP Unit switches and/or by establishing station No. 200 programming. Optional functions can be made available by using external equipment or additional units. Note: When Tie-line function is employed, some functions are disabled and/or restricted.

  • Page 6: Optional Functions

    18) Restricted Access Stations with access to All-call Paging, Conference and General Purpose Control can be limited. 19) Selectable Calling Tone Duration (Calling Tone/Paging Pre-Announcement Tone) The time duration of the Calling Tone can be set for “long” (Trill note tone) or “short” (Single note tone) or none. Similarly, Paging Pre-Announcement Tone may be set for “long”...
  • Page 7 PV type & NP type Either “PV” Type (the system with Privacy function) or “NP” Type (without Privacy function) mode should be selected for the whole intercom system. When Privacy Switch (SW) of station is turned ON, privacy tone is available in “PV” Type system, while continuous calling tone is available in “NP”...
  • Page 8 CP-66: One Exchange system System Diagram of Data Transmitting and Receiving Units (Single Exchange)
  • Page 9 EXES-6000 Enlarged Block Diagram of Calling Party Indication...
  • Page 10 CP-66: Tie-line system System Diagram of Data Transmitting and Receiving Unit (Tie-line System) *Refer to “System Specifications EX-630 for Composition of Exchange and Electronic Specifications. *It is also possible to tie-line between the EX-630 and the other exchanges EX-610/620 which are employing the CP-63.
