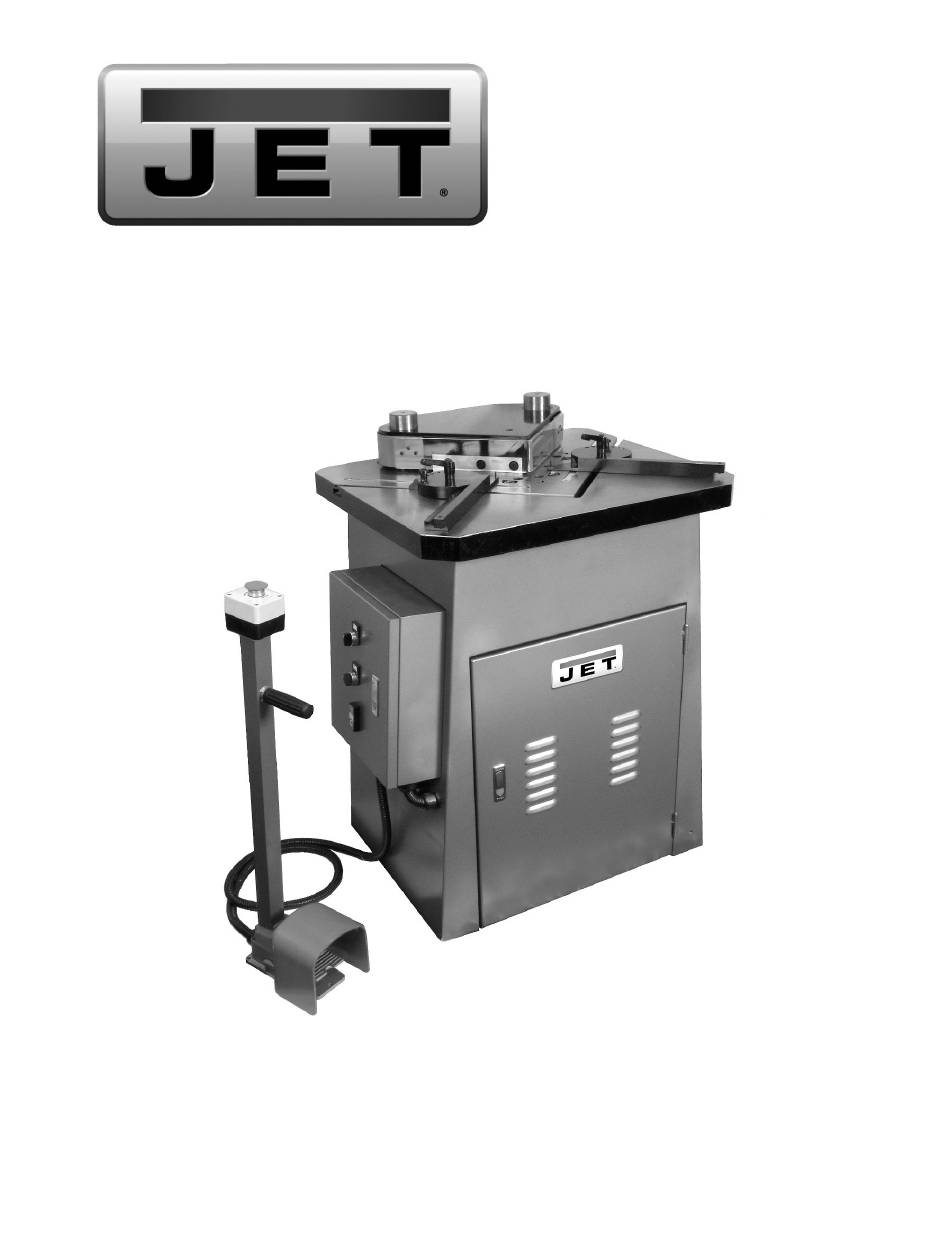

- Page 1 This .pdf document is bookmarked Operating Instructions and Parts Manual Electric (Hydraulic) Sheet Metal Notcher Model EMN-9 427 New Sanford Road LaVergne, Tennessee 37086 Part No. M-754410 Ph.: 800-274-6848 Edition 3 07/2020 www.jettools.com Copyright © 2016 JET...
-
Page 2: Important Safety Instructions
21. Do not overreach. Failure to maintain proper than its intended use. If used for other working position can cause you to fall into the purposes, JET disclaims any real or implied warranty and holds itself harmless from any machine or allow clothing to get caught, pulling you into the machine. -
Page 3: About This Manual
If there are questions or comments, please contact your local supplier or JET. JET can also be reached at our web site: www.jettools.com. -
Page 4: Table Of Contents
10.0 Troubleshooting EMN-9 Electric Notcher ....................10 11.0 Replacement Parts ............................. 10 11.1.1 EMN-9 Electric Notcher – Exploded View ................... 11 11.1.2 EMN-9 Electric Notcher – Parts List ....................12 12.0 Electrical Connections for EMN-9 Electric Notcher ..................14 ... -
Page 5: Specifications
L= length; W=width; H=height The specifications in this manual were current at time of publication, but because of our policy of continuous improvement, JET reserves the right to change specifications at any time and without prior notice, without incurring obligations. -
Page 6: Setup And Assembly
Read and understand the entire contents of this manual before attempting set- up or operation! Failure to comply may cause serious injury. 5.0 Setup and assembly Open shipping container and check for shipping damage. Report any damage immediately to your distributor and shipping agent. -
Page 7: Electrical Connections
If repair or The EMN-9 Electric Notcher is pre-wired for 230- replacement of the electric cord or plug is volt, three-phase operation. It is not provided with a necessary, do not connect the equipment-grounding power plug;... -
Page 8: Operation
7.0 Operation Adjust left and right fences (D) to match workpiece. 7.1 Controls Up/Down (located on electric cabinet): Regulates direction of head. Manu/Auto (located on electric cabinet): Manual mode allows switch (or foot pedal) to be bumped to lower the head in steps. Auto mode performs complete cycle of blade drop and rise. -
Page 9: Adjustments
If blades become dull, they can be removed and re- sharpened. 9.1 Additional servicing Any additional servicing should be performed by an authorized JET service center. Figure 8-2: gap adjustment Figure 8-3... -
Page 10: Troubleshooting Emn-9 Electric Notcher
Non-proprietary parts, such as fasteners, can be found at local hardware stores, or may be ordered from JET. Some parts are shown for reference only, and may not be available individually. -
Page 11: Emn-9 Electric Notcher - Exploded View
11.1.1 EMN-9 Electric Notcher – Exploded View... -
Page 12: Emn-9 Electric Notcher - Parts List
11.1.2 EMN-9 Electric Notcher – Parts List Index No. Part No. Description Size 1 ....EMN9-1 ..... Cabinet Door ....................1 2 ....TS-1503011 ....Socket HD Cap Screw ..........M6x8 ......11 3 ....EMN9-3 ..... Cabinet ......................1 4 .... - Page 13 92 ....EMN9-92 ....Guide Plate ....................1 ....JET-165 ..... JET Logo (not shown)..........165x68mm ....1 ....LM000222 ....ID Label, EMN-9 (not shown) ................ 1 ....LM000223 ....Warning Label (not shown) ................1...
-
Page 14: Electrical Connections For Emn-9 Electric Notcher
12.0 Electrical Connections for EMN-9 Electric Notcher... -
Page 15: Warranty And Service
JET sells through distributors only. The specifications listed in JET printed materials and on official JET website are given as general information and are not binding. JET reserves the right to effect at any time, without prior notice, those alterations to parts, fittings, and accessory equipment which they may deem necessary for any reason whatsoever. - Page 16 427 New Sanford Road LaVergne, Tennessee 37086 Phone: 800-274-6848 www.jettools.com...
