Replacement Parts - VWR Standard Series Instruction Manual

r P - s
ePlaceMent arts tandard

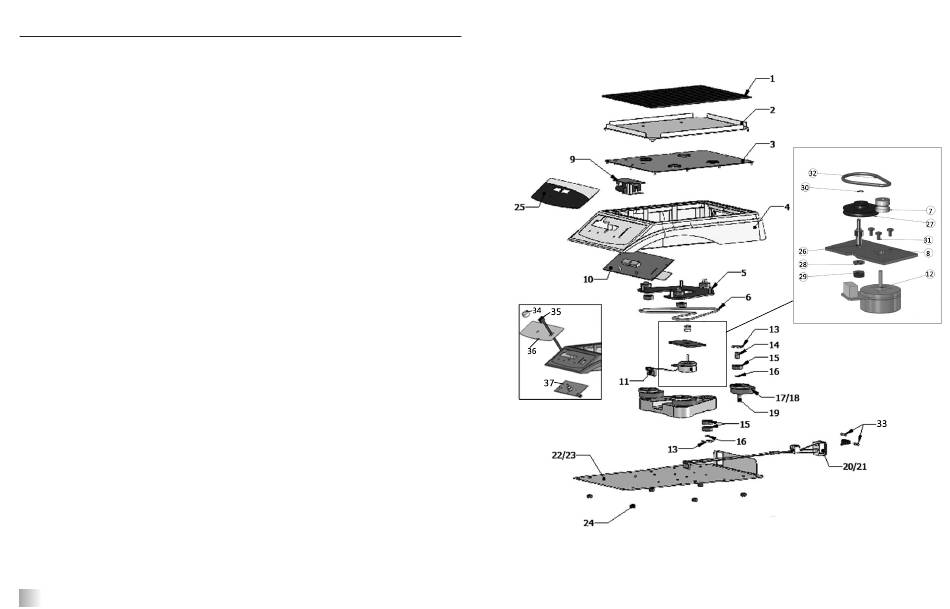

DESCRIPTION
1. Rubber Mat
2. Tray (STD)
Tray (ADV)
3. Top Plate
4. Housing
5. Shaker Plate
6. Belt
7. Motor Pulley
8. Motor Plate
9. Power Supply
10. PC Board
11. Motor Connection Cable
12. Motor 380763-00
13. Snap ring internal
14. Idler Stud
15. Bearing
16. Snap ring external
17. Eccentric counter weight
18. Eccentric pulley
19. Eccentric shaft
20. Wire assembly, 120V
21. Wire assembly, 230V
22. Base plate, 120V
23. Base plate, 230V
24. Foot
25. Front Panel Membrane Switch
26. Idler Shaft
27. Pulley Speed Reduction
28. Washer, .25" Split Lock
29. 1/4-20 Hex Nut
30. Snap Ring, External .156 Dia
31. Screw 180037-00
32. Belt Speed reduction
33. Fuse
34. Knob
35. Switch Assembly
36. Overlay
37. PC Board
13
1000
PART NUMBER
480016-00
280760-00
580050-00
280758-00
280302-00
280759-00
280757-00
280756-00
280720-00
380762-00
380806-00
380765-00
180040-00
280752-00
180059-00
180039-00
280754-00
280755-00
280753-00
380760-00
380767-00
280328-00
280329-00
530052-00
380704-00
280721-00
280723-00
180080-00
172007-00
180081-00
280722-00
380238-00
287010-00
380769-00
380764-00
380766-00
