Golden Compass Sport GP605 CC Owner's Manual

Center-wheel drive power chair
Hide thumbs Also See for Compass Sport GP605 CC:
Table of Contents

Advertisement

Quick Links

Compass Sport
™
Owner's Manual

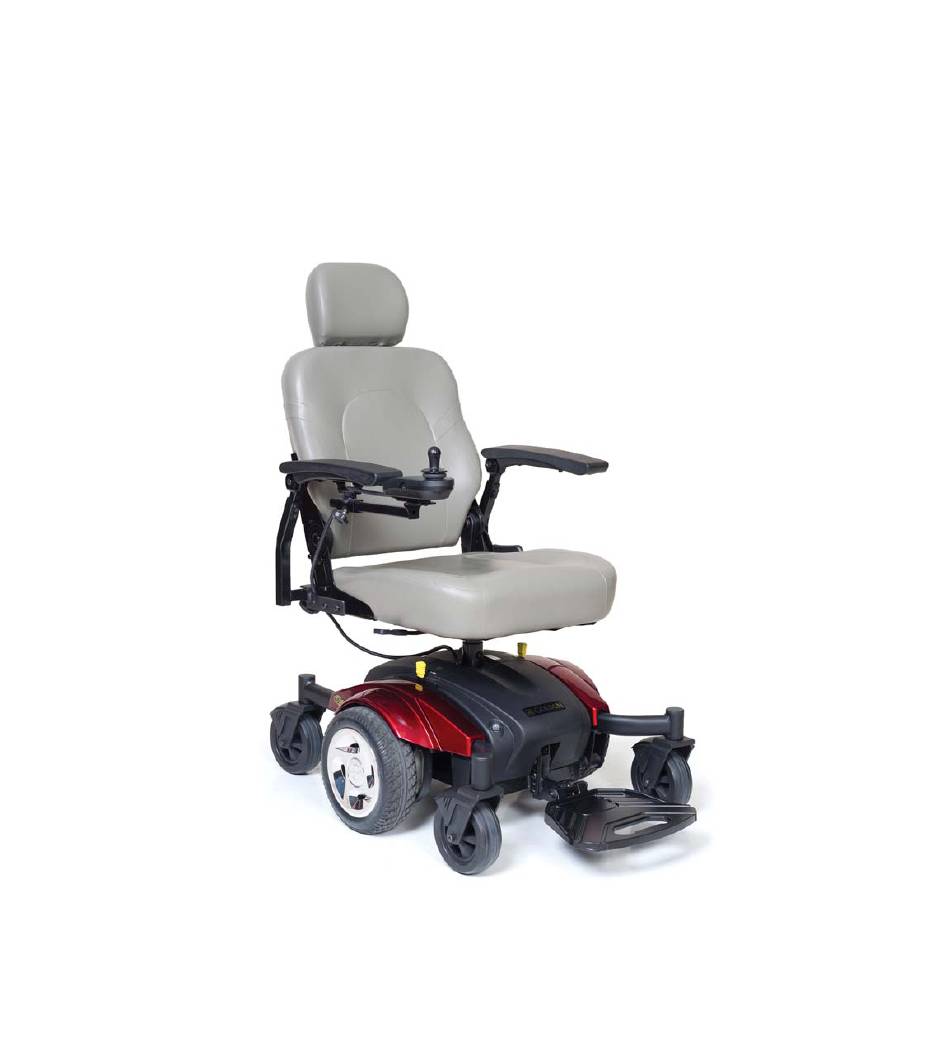

Compass Sport
™
Center-Wheel Drive Power Chair
GP605 CC/GP605 SS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Compass Sport GP605 CC and is the answer not in the manual?

Questions and answers

Related Manuals for Golden Compass Sport GP605 CC

Summary of Contents for Golden Compass Sport GP605 CC

  • Page 1 Compass Sport ™ Owner’s Manual Compass Sport ™ Center-Wheel Drive Power Chair GP605 CC/GP605 SS...

  • Page 2: Table Of Contents

    Compass Sport Owner’s Manual – Model # GP605 CC, GP605 SS Revised 10/27/14 CONTENTS INTRODUCTION …………………………………………………… SAFETY..............……….. 5-8 EMI/RFI ............…….…….. 9 SPECIFICATIONS…………………………………………………… 10 ASSEMBLY/DISASSEMBLY……………………………………… 11-15 COMFORT SETTINGS…………………………………………….. 16-19 OPERATION/DIAGNOSTICS ……………………………………. 20-26 BATTERY CHARGING ……………………………………………. 27-28 CARE AND MAINTENANCE …………………………………….. 29 WARRANTY…………………………………………………………..

  • Page 3: Introduction

    Compass Sport Owner’s Manual – Model # GP605 CC, GP605 SS Revised 10/27/14 INTRODUCTION Safety Guidelines The symbols below are used in the owner's manual and/or on the product to identify warnings and to notify you of important safety information. Make sure you read and understand them completely.

  • Page 4: Safety

    Before operating you Compass Sport, please ensure you read and understand this owner’s manual in its entirety. If any uncertainty exists after reading this manual, please ask for further instruction or training from your authorized Golden Dealer / Representative. Compass Sport BEFORE GETTING ON YOUR ™...
  • Page 5 Compass Sport Owner’s Manual – Model # GP605 CC, GP605 SS Revised 10/27/14 SAFETY DRIVING ON AN INCLINE Drive with caution when attempting to negotiate any incline, even handicap access  ramps. Try to keep your Compass Sport moving when climbing an incline. If you do come ...
  • Page 6 Golden Technologies. Do not disassemble the tire. If disassembly is required, have your authorized  Golden Compass Sport dealer perform any necessary maintenance or repair. Do not attempt to inflate the tires of your Golden Compass Sport . Your  ™...
  • Page 7 Please be sure to follow this important warning about adding electrical or mechanical devices to your Golden Compass Sport power wheelchair: DO NOT ALLOW ANYONE EXCEPT AN AUTHORIZED GOLDEN TECHNOLOGIES, INC. REPRESENTATIVE TO CONNECT ANY ELECTRICAL OR MECHANICAL DEVICE TO YOUR COMPASS SPORT™. UNAUTHORIZED ACCESSORIES WILL VOID THE WARRANTY AND MAY CAUSE INJURY.

  • Page 8: Emi/Rfi

    Compass Sport Owner’s Manual – Model # GP605 CC, GP605 SS Revised 10/27/14 EMI/RFI The rapid development of electronics, especially in the area of communications, has saturated our environment with electromagnetic (radio) waves that are emitted by television transmitters, cellular phones, citizen’s band radios (CBs), amateur radios (ham radios), wireless computer links, microwave transmitters, paging transmitters, etc.

  • Page 9: Specifications

    1. Battery range will vary due to rider weight, drive surface, and terrain. 2. Electronics warranty excludes batteries. Literature is current at the time of printing. Golden Technologies reserves the right to make changes to the product or literature at any time.

  • Page 10: Assembly/Disassembly

    You will need only basic tools. If you do not have the required tools, or if you do not feel capable of safely assembling your power chair, please contact your local Golden Technologies, Inc. representative. Main Components 1. Frame with power module, controller cable & connectors for battery cables.
  • Page 11 Compass Sport Owner’s Manual – Model # GP605 CC, GP605 SS Revised 10/27/14 ASSEMBLY / DISASSEMBLY Before operating or assembling your Compass Sport , be sure to connect ™ will the power cable from the batteries to the Linx power module. Your Compass Sport ™...
  • Page 12 Compass Sport Owner’s Manual – Model # GP605 CC, GP605 SS Revised 10/27/14 ASSEMBLY / DISASSEMBLY Seat Post Stinger Power Cable Power Module Figure 1 Figure 2 Seat Swivel Handle Backrest Angle Adjustment Lever Seat Post Figure 3 Figure 4 JOYSTICK INSTALLATION/REMOVAL 1.
  • Page 13 Compass Sport Owner’s Manual – Model # GP605 CC, GP605 SS Revised 10/27/14 ASSEMBLY / DISASSEMBLY ACCESSING THE BATTERIES 1. Remove the seat. Refer to “Seat Removal” on page 12. 2. Locate the two “Battery Box Covers”, front and rear. 3.
  • Page 14 Compass Sport Owner’s Manual – Model # GP605 CC, GP605 SS Revised 10/27/14 ASSEMBLY/ DISASSEMBLY BATTERY INSTALLATION/REMOVAL Battery shown with cable connected properly. Black (-) Red (+) Battery Figure 8 Figure 9 Color Coded Buckle Strap Connector Buckle Strap Color Coded Connector Figure 10 1.

  • Page 15: Comfort Settings

    You may be spending a great deal of time on your Compass Sport . To provide you with ™ the maximum seating comfort, Golden Technologies, Inc. has designed this power chair to incorporate the following adjustments for operator comfort. COMFORT SETTINGS 1.
  • Page 16 Compass Sport Owner’s Manual – Model # GP605 CC, GP605 SS Revised 10/27/14 COMFORT SETTINGS HEADREST HEIGHT ADJUSTMENT 1. Standing behind the chair, push and then release the clamp on the left post of the headrest while you are pulling up or pushing down on the head rest. See figure 12. 2.
  • Page 17 Compass Sport Owner’s Manual – Model # GP605 CC, GP605 SS Revised 10/27/14 COMFORT SETTINGS FOOTREST ANGLE ADJUSTMENT 1. Fold the footrest upward for easy access to the angle adjustment bolt. See figure 15. 2. Turn the jam nut counter-clockwise with a 17mm wrench to loosen. 3.
  • Page 18 Compass Sport Owner’s Manual – Model # GP605 CC, GP605 SS Revised 10/27/14 COMFORT SETTINGS Allen Adjustment Screws Knob (3mm) Figure 17 Figure 18 Joystick Adjustment Knob Figure 19 ARMREST HEIGHT ADJUSTMENT 1. Loosen the two armrest height adjustment screws on the outside of the armrest with a 3mm Allen wrench until you can slide the armrest up and down freely.
  • Page 19 Your Compass Sport is simple to operate. However, for your safety and the safety of ™ others, Golden Technologies, Inc. recommends that you carefully read and understand the following operating instructions. We also recommend that you practice operating your Compass Sport in an area free of any obstacles.
  • Page 20 Compass Sport Owner’s Manual – Model # GP605 CC, GP605 SS Revised 10/27/14 OPERATION DRIVING: Joystick Power On/Off Button To turn on the power to your Compass Sport ™, press the power button. If the system is healthy, the Status indicator (through the Power Button) will light up green, and the Battery Gauge will display the current battery status.
  • Page 21 Compass Sport Owner’s Manual – Model # GP605 CC, GP605 SS Revised 10/27/14 OPERATION The Joystick The joystick (see figure 20 on page 20) controls the speed (up to the maximum limit set by the speed dial) and direction of your power chair. Pushing the joystick away from the neutral (center) position will move your Compass Sport™...
  • Page 22 Compass Sport Owner’s Manual – Model # GP605 CC, GP605 SS Revised 10/27/14 OPERATION The Battery Gauge The battery gauge comprises five different LEDs (1 x RED, 2 x AMBER, 2 x GREEN), located above the horn button. The number of LEDs lit depends on the status of the battery, as shown.

  • Page 23: Operation/Diagnostics

    Compass Sport Owner’s Manual – Model # GP605 CC, GP605 SS Revised 10/27/14 OPERATION/DIAGNOSTICS For Compass Sport Units with the LINX Controller If, when powered up, there is an error with the system, then the status indicator will flash red. The number of flashes will indicate the type of error.
  • Page 24 Compass Sport Owner’s Manual – Model # GP605 CC, GP605 SS Revised 10/27/14 OPERATION Freewheel Lever Freewheel Lever Figure 21 FREEWHEEL MODE ♦ To disengage the gears and put your power chair in freewheel mode, pull the freewheel levers forward towards the front of your chair. See figure 21. ♦...
  • Page 25 Compass Sport Owner’s Manual – Model # GP605 CC, GP605 SS Revised 10/27/14 OPERATION Reset Button (Circuit Breaker) Figure 22 Reset Button If the main circuit breaker trips, please wait for approximately 1 minute and then push the reset button to reset the main circuit breaker. See figure 22. Usually, the thermal rollback feature is more sensitive than the main circuit breaker.

  • Page 26: Battery Charging

    Compass Sport Owner’s Manual – Model # GP605 CC, GP605 SS Revised 10/27/14 BATTERY CHARGING You must use only the charger that is supplied with your Compass Sport . The use of any other charger on this power chair will void the ™...
  • Page 27 Compass Sport Owner’s Manual – Model # GP605 CC, GP605 SS Revised 10/27/14 BATTERY CHARGING CHARGING THE BATTERIES Your Compass Sport’s charging system is designed for your safety and for your convenience. Follow the steps below to recharge the batteries. 1.

  • Page 28: Care And Maintenance

    Tire Tread: Regularly visually inspect the tire tread. If the remaining tread is less than 1/32 of an inch, have your local Golden representative replace the worn tires. Joystick and Controller: Protect the joystick and controller from adverse weather conditions.
  • Page 29  LiteRider GP162 Limited Lifetime Warranty: In the event of defective materials or workmanship, Golden Technologies will repair or replace at our option any of the following structural frame components found to be defective by an authorized Golden Technologies representative: ...

  • Page 30: Warranty

    Items not mentioned or listed are covered at the discretion of Golden Technologies. Any accessories, standard or optional, supplied by Golden Technologies, are covered for a period of one year from the date of purchase with the particular unit.

This manual is also suitable for:

Compass sport gp605 ss
