- Page 1 Owner’s Manual Power WheelChair Model GP303 Golden Technologies - 401 Bridge Street - Old Forge, PA 18518 Tel: 800-624-6374 - Fax: 800-628-5165 - www.goldentech.com LIT-GP303-OM, Rev. B...
- Page 2 Owner’s Manual Charger Tool Kit FOR YOUR RECORDS Please fill in your Ally information below. This information will be useful in the event that you ever need to contact Golden Technologies, Inc. concerning your power chair. Your Ally Model ____________________ Serial Number _______________________...
- Page 3 Intended Use: The intended use of the Ally power wheelchair is to provide mobility to adults, limited to a sitting position and have the capability to operate a simple hand control. CONTENTS Introduction..……………..4 Safety........5 III. EMI/RFI/FCC......10 Specifications......12 Main Components....13 Folding this Device....14 VII.
- Page 4 Congratulations on the purchase of your new Ally. The Ally, combines cutting edge technology with attractive designs that are also highly functional in today’s world. We at Golden Technologies, Inc. know that you have chosen a power chair that will give you years of dependable operation and also will enhance the quality of your life by providing you with the mobility to experience an active daily lifestyle.
- Page 5 Safety Guidelines The symbols below are used in the owner’s manual and/or on the product to identify warnings and to notify you of important safety information. Make sure you read and understand them completely. WARNING! Indicate(s) a hazardous situation which, if not avoided, could result in death or serious injury.
- Page 6 It is not recommended to drive your Ally, up or down a step or curb that is higher than 1-1/2 inches. Never back up or down a step or curb.
- Page 7 Never tether a live animal to your device, doing so may cause harm to yourself and the animal. Do not operate or store your Ally where it will be exposed to rain, snow,mist, and below freezing temperatures. Never transfer on or off of this power wheelchair using the seat backrest and arms for support during transfer.
-
Page 8: Entering And Exiting
15- This will prevent the possibility of accidentally activating the joystick and causing injury to you or to others. • Check to be certain that your Ally is not in the freewheel mode. See the “Operation” section. • Flip up the armrests. -
Page 9: Maximum Weight
Drive with caution when attempting to negotiate any incline, even handicap access ramps. • Try to keep your Ally moving when climbing an incline. If you do come to a stop, restart and accelerate slowly and carefully. Always climb or descend a gradient by driving straight up or straight down the face of the slope. -
Page 10: Emi/Rfi Recommendations
• Turn off the power if your Ally is going to be in a stationary position for any length of time. • Be aware that adding accessories or components or modifying your power chair may make it more susceptible to EMI/RFI. -
Page 11: Fcc Rules Part
FCC RULES PART 15 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. - Page 12 Model Number GP303 Medicare Code Not Coded Weight Capacity 330 lbs. Drive Wheels Rear Maximum Speed 4.4 mph Operating Range 9.3 miles Ground Clearance 2.5” Turning Radius 28.5” Type Batteries 1x24V12 AH Lithium Colors Teal, White, Black Freewheel Mode Electronic Speed Control Electro-Mechanical Brakes Charger Off Board...

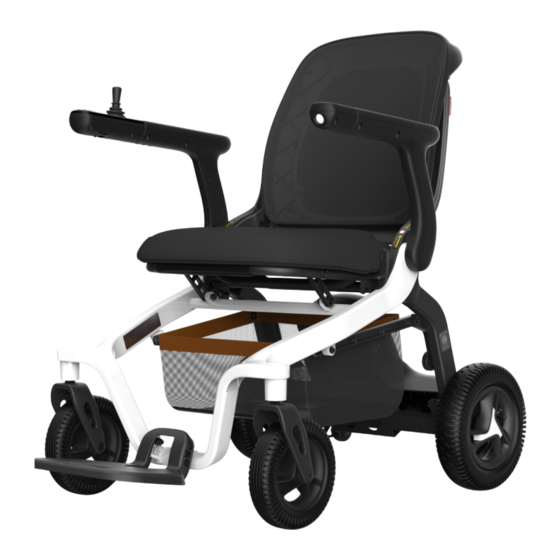

- Page 13 Armrests Joystick Controller Ventilated Mesh Back Seat Cushion Headlight & USB Port Storage Basket Foot Plate Frame Caster Wheels Push Handle Backpack Battery Pack Drive Wheels Freewheel Levers Anti-Tip Wheels...
- Page 14 UNFOLDING 1. Grasp the rear of the frame with one hand. Push down to unlock. 2. With your other hand grasp the Push Handle and lift upward. Note: An audible “click” indicates the latch has engaged and is now in the locked position.
- Page 15 Read and follow the owner’s manual. Your Ally is simple to operate. However, for your safety and the safety of others, Golden Technologies, Inc. recommends that you carefully read and understand the following operating instructions. We also recommend that you practice operating your Ally in an area free of any obstacles.
-
Page 16: Display Features
Joystick. CRUISE CONTROL Your Ally is equipped with Cruise Control feature which will, when activated, maintain forward motion of this device at one of the five speed settings. 1. Bring your device to a complete stop, and set the speed setting to 1. -
Page 17: Freewheel Mode
To Deactivate Novice Mode: Press the Fn button. FREEWHEEL MODE Your Ally is equipped with a Freewheel Mode feature which will, when activated, allow this device to be pushed manually. Turn the unit off. You will find two brake levers on the back of the unit, one attached to each motor. - Page 18 Battery Charging Your Ally charging system is designed for your safety and for your convenience. Follow the steps below to recharge the battery pack. 1. Position your unit close to a standard wall electrical outlet.
- Page 19 Joystick or battery pack when the batteries are fully charged. Battery Pack Removal Your Ally is equipped with a removable battery pack. On each side of the unit you will find a lockable latch. Unlock each side to remove the battery. Installation is the reverse.
- Page 20 ARMREST FEATURES AND FUNCTIONS Your Ally is equipped with a headlight, a USB-A port, and a USB-C port. It also has the capability of extending the joystick and switching the joystick to the left arm. Left Armrest Features View from Bottom...
- Page 21 Re-install those items on opposite sides. DRIVING Your Ally is simple to operate. However, for your safety and the safety of others, Golden Technologies, Inc. recommends that you carefully read and understand the following operating instructions. We also recommend that you practice operating your Ally in an area free of any obstacles.
- Page 22 HELPFUL DRIVING TIPS AND INSTRUCTIONS Control Through Tight Spots As you use your Ally to increase your mobility, you will undoubtedly encounter some obstacles that will require practice to negotiate smoothly and safely. Below are some common obstacles that you may meet during the daily use of your power wheelchair.
- Page 23 4. Allow the power of your Ally to pull the door completely open. 5. When the door is completely open, stop your power wheelchair. 6. Drive through the doorway while keeping your hand on the door to prevent it from hitting or blocking your power wheelchair.
-
Page 24: Voice Prompts
VOICE PROMPTS Some functions and actions may trigger a vocal response from your Ally. Below you will find a list of these prompts and a description of their meaning. Description. Voice prompts Pressed the novice mode button. Enter novice mode Quit novice mode Press the novice mode button again. - Page 25 Fault Codes For your convenience, the Ally has an automatic fault warning system. If, when powered up, there is a fault with the system, the display screen will show the fault. These faults are described in the table below. Code...
-
Page 26: Routine Maintenance
We recommend that you check the following: Tire Tread: Regularly visually inspect the tire tread. If the remaining tread is less than 1/32 of an inch, have your local Golden retailer replace the worn tires. Joystick Control: Protect the joystick control from adverse weather conditions. - Page 27 Storage Your Ally should be stored in a clean indoor environment with an ambient temperature of 32°F -122°F, relative humidity ≤80%, with good ventilation. Remove the battery pack from the power wheelchair prior to storage.
-
Page 28: Phone App
PHONE APP Your Ally is equipped with the option of utilizing a phone app to operate the unit, adjust settings, and other various functions. Before installing and using the App. Read and adhere to the following instructions and warnings. SECURITY We recommend that the user creates strong password for their mobile device, to avoid illegal intrusion of equipment. -
Page 29: Installation
OPERATION Setup 1. With your Ally powered on, open the App. The screen below will show. Follow the instructions on the screen to pair your Ally with the App. Note: Bluetooth must be enabled, if it is not, a prompt will come up requesting... - Page 30 Click on "Try it and will show the following screen. now". 3. You have now succesfully paired your mobile mobile device and Ally. Be sure you have paired your mobile device with your Ally. 4. Verify you are paired to your Ally.
- Page 31 Settings. See Will disconnect page 33. the app from your Ally. Will power off Shows the your Ally and charge of the disconnect the battery. Bluetooth. Allows you to operate the Allows you to chair with...
- Page 32 OPERATION Remote Control Be aware of any and all obstacles before operating your power wheel chair. Adhere to all instructions and warnings within this manual while operating the power wheel chair with this application or the joystick. Touch to exit your Remote Control session and...
- Page 33 This feature saves brightness of the speed setting the battery you are on when light. you turn off your Ally. Reference Allows you to page 15. enable or disable the ability to activate the cruise control Allows the feature.
-
Page 34: Warranty
Five-Year Limited Warranty: For the period of five years from the date of purchase, in the event of defective materials or workmanship, Golden Technologies will repair or replace at our option any of the following structural frame components found to be defective by an authorized Golden Technologies representative: •... - Page 35 Items not mentioned or listed are covered at the discretion of Golden Technologies. Any accessories, standard or optional, supplied by Golden Technologies, are covered for a period of one year from the date of purchase with the particular unit. Warranty Exclusions:...
- Page 36 LIT-GP303-OM, Rev. B...
