Attaching The Front Leg - Concept2 D1 Assembly Instructions Manual

attaching
the
front leg
4
tool needed:
Allen Wrench (provided)

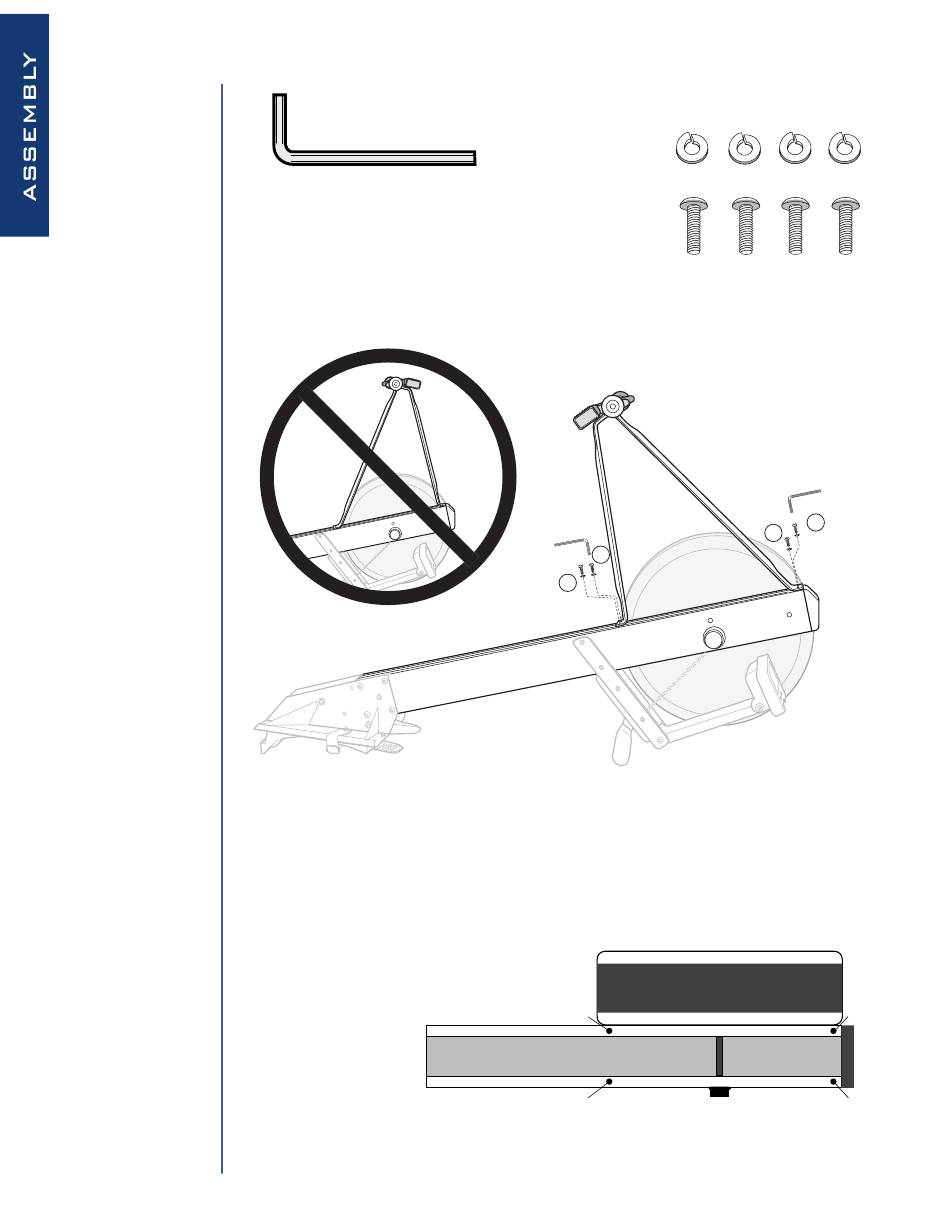

This is an illustration of the bottom view
of the front end/flywheel housing.
Insert socket screws in this order.
parts needed:
4 washers
4 screws
3/4"
or 2cm
Attach the front leg as shown
in the illustration.
Note the leg lengths.
23.5"
(60cm)
19"
(49cm)
1
3
➀
➂
2
4
➁
➃
