Parts List
Parts are listed by part number, description, and
quantity. Parts are updated periodically and may
vary in color or shape.
Hoist-A-Top
Part
Description
Frame
Hardware Parts Bag
HAC-028
HAT-050
HAT-125
Unit & Mounting Components
HA
Single Flush Mount Pulley
A
HOIST
Qt
1
TOP
®
S
HAT-
HAT-050 HAT-125
HAT-091
HDW-031
HA
HAT-116
HAT-018
HAC-028
HA C-043
HAC-023
HAT-142
Advertisement
Related Manuals for Lange Originals Hoist-A-Top
Summary of Contents for Lange Originals Hoist-A-Top

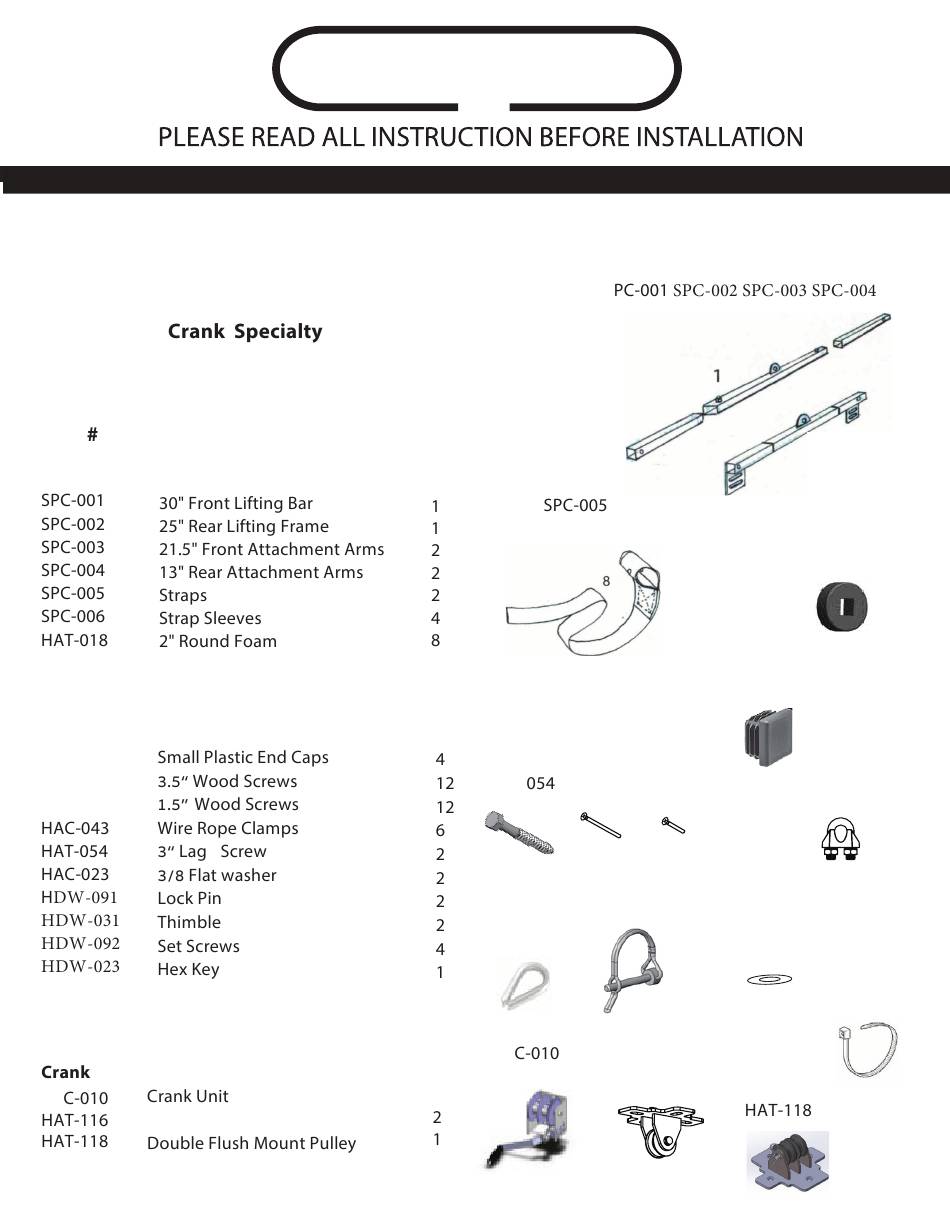

- Page 1 HOIST ® Parts List Parts are listed by part number, description, and quantity. Parts are updated periodically and may vary in color or shape. Hoist-A-Top Part Description Frame HAT-018 HAC-028 Hardware Parts Bag HAC-028 HAT-050 HAT- HAT-050 HAT-125 HA C-043...
- Page 2 We use these products ourselves and like them, we hope you will too. Lange Originals® is not responsible for damage or personal injury due to improper installa- tion, custom installation that doesn’t follow the instructions, or neglect.
- Page 3 Installa on of the crank unit Call toll free 1866 284 7428 langeoriginals.com copyright lange originals 2017 Page 4...
- Page 4 ½ inch le of center on the 2x6. This will allow the second cable to run along the ceiling without interfering with the other cable. Call toll free 1866 284 7428 langeoriginals.com copyright lange originals 2017 Page 5...
-
Page 5: Installing The Cable
Use the farthest back hole for the second li ing point. Call toll free 1866 284 7428 langeoriginals.com copyright lange originals 2017 Page 6... -
Page 6: Frame Assembly
HOIST ® Frame Assembly Frame Bridge Assembly There are four frame pieces. Assemble into the format shown in Figure f. Use the two allen set screws to secure the three-piece front bridge Figure f-1. This bridge should be two inches wider than the object you are lifting. Back of top Door corner. - Page 7 Slide the looped end of each Straps on the end of the Bridge and align the holes in the strap with the hole in the Bridge. Pin the straps to the Bridge through these holes with the Safety Pins. Close the clip on the Safety Pins so the strap is secured.
- Page 8 Experience says that problems occur when screws miss the wood and instead are held by just sheet rock. Test the Hoist-a-Top with several up and down cycles to make sure you know how to operate the winch. Make sure that the safety stop is working at the top of the lift cycle, and that the Winch stops automatically.
- Page 9 ITEM 1: The worm gear and drive have a normal break in period. During this time the worm drive and gear will have some sacrificial metal shavings. This is normal. The drive and gear requires lubrication each time it is used. Some lubrication is provided and should be used before any turning of the gears. ITEM 2: Contrary to any other written instruction or video the orientation of the winch crank unit should be as pictured below with the guide rod and crank toward the ceiling.
- Page 10 10. Minor cosmetic issues such as paint flaws, mis-shaped foam pieces that do not affect the function of the product as determined by Lange. Lange Originals LLC reserves the right to change this document at any time and is not limited to the terms and conditions described here. For a comprehensive warranty on your specific part number/product please visit us at www.langeoriginals.com...
