Lange Originals 025-692 Instructions

Mirror II Passenger/Driver Side Mirror Instructions
Includes Part Numbers: 025-692, 023-693, 023-110, 023-111
Tools needed: T-40 torques head ratchet driver ( for removal of Jeep windshield bolts)

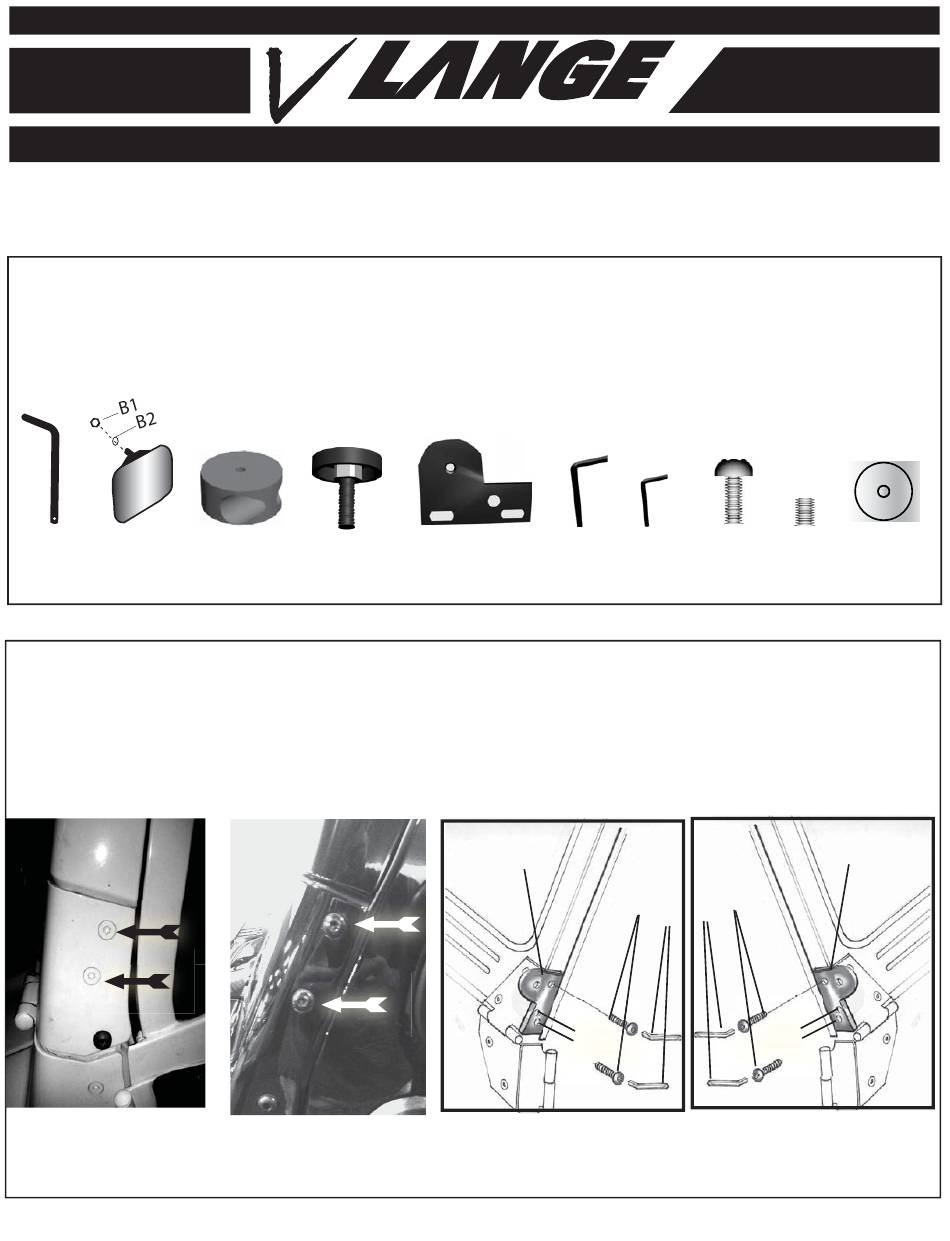

STEP 1: Identify Parts
If parts are missing please call the Lange Originals factory toll-free1-866-284-7428. Or go to the
contact page at www.langeoriginals.com, and send us an e-mail. In your correspondence please include
the description of the missing part, your name, shipping address, phone number, who you ordered the
part from, and e-mail address. Colors and style may vary.
A 1 B 1
x x
Stem Mirror Head
STEP 2: Mounting the backing plate (E)
Remove Torque head screw bolts on windshield using T-40 Torque head socket shown in figure 2
and 3 (tip: this bolt may be stubborn to remove, be sure to use the right size of torque driver with a ratchet
driver for improved leverage). Follow figure 4 and 5 to then put the backing plate on the windshield
bracket. Fig. 4 Illustrates a driver side installation. Fig. 5 Illustrates a passenger side installation. Only two
holes will align with your bracket, the third is not used.
Fig 2
TJ two bolts for
removal
ORIGINALS
C 1 D 1
x x
Turret Rosette Knob Bolt
Figure 3
JK two bolts for
removal
E 1 F 1 G
x x
Backing Plate Hex Key 1/8" Hex Key 3/16" Button Head
E
TJ TJ Hole TJ Hole H l
CJ/YJ/JK Hole
Figure 4
Drivers side
installation
Page 1
1 H 2 I 1
x
x x
Set
Screw
Allen Bolt
H H
F
F
TJ TJ Hole Hole
CJ/YJ/JK Hole
Figure 5
Passenger side
installation
J 1
x
Clear Washer
E
