Parts and Functions

TEMP
MODE
5
4

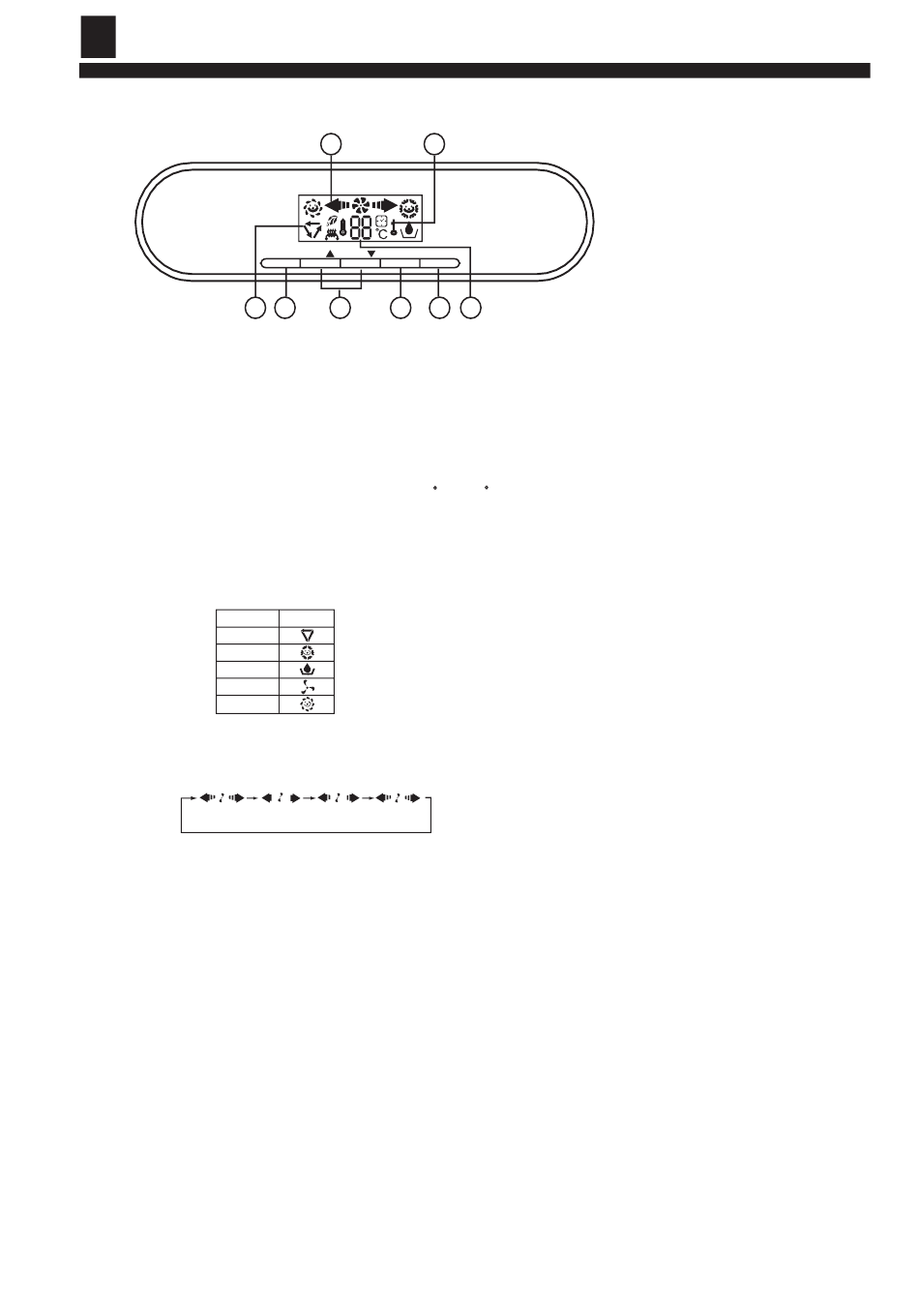

1.Power ON/OFF Button
Used for unit start or stop
2.FAN Button
Used to select fan speed:AUTO,LOW,MID,HIGH.
3.TEMP Setting Button
Used to set temperature. (Setting ranges: 16 C to 30 C)
4.MODE Button
Used to select operation mode: AUTO COOL DRY FAN HEAT
5.Operation MODE Display
Mode
Panel
AUTO
COOL
DRY
FAN
HEAT
6.FAN SPEED Display
AUTO(Flash)
LOW
7.LOCK State Display
8.TEMPERATURE Display
Used to display set temperature and room temperature.
6
7
TEMP
FAN
ON/OFF
8
2
1
3
MID
HIGH
2
