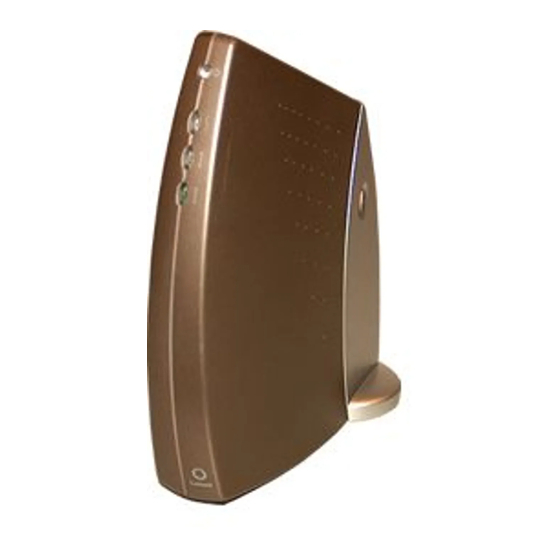

Summary of Contents for Lucent Technologies RiNOCO RG-1000
-
Page 2: Table Of Contents
Table of Contents Table of Contents Quick Start Overview Kit Contents Network Options Wireless Networks Wireless to Internet via Phone Line Wireless to Internet via Ethernet Connect & Power Up Connect Cables Power-up the Unit Customizing the RG Settings Introduction Start the RG Setup Utility View/Modify RG Settings Finding Information... - Page 3 Table of Contents Using your RG General Guidelines Wall Mount the RG Specifications Regulatory Information Technical Support ORiNOCO Residential Gateway - Getting Started...
-
Page 4: Quick Start
Quick Start Overview Installing the ORiNOCO Residential Gateway (RG) is easy, following the quick steps described below to power up your wireless network: 1. Connect cables and power up the RG (see Chapter 2 of this document). 2. Insert the ORiNOCO CD-ROM and install the following software on your computer: ORiNOCO Client Manager ORiNOCO RG Setup Utility... -
Page 5: Kit Contents
Quick Start - Kit Contents Kit Contents Your Residential Gateway kit includes the following items: Power Adapter Residential Gateway Telephone Cable Guide and CD-ROM Screws and Plugs ORiNOCO Residential Gateway - Getting Started... -
Page 6: Network Options
Quick Start - Network Options Network Options The ORiNOCO Residential Gateway (RG) enables you to build various types of wireless network applications in your home or small office environment. To build a Lucent ORiNOCO system you need: one ORiNOCO Residential Gateway A base station that will bridge communication between your wireless computers and the Internet. -
Page 7: Wireless Networks
Quick Start - Network Options Wireless Networks Wireless networking is the ‘out-of-the-box’ mode of operation for the ORiNOCO Residential Gateway (RG). In this mode the RG will forward the data communication from one wireless computer to another. You can easily extend your Lucent ORiNOCO system by adding more wireless computers. -
Page 8: Wireless To Internet Via Phone Line
Quick Start - Network Options Wireless to Internet via Phone Line The Residential Gateway (RG) includes a built-in analog 56k/V90 modem that allows you to share an Internet connection between multiple computers. To access the Internet via the RG modem, you must have a traditional phone line, and an account with an ISP (Internet Service Provider). -
Page 9: Wireless To Internet Via Ethernet
Quick Start - Network Options Wireless to Internet via Ethernet You can also use the Residential Gateway (RG) to connect to the Internet using an: Cable modem xDSL modem ISDN modem To access the Internet via an external modem you must have an account with an ISP (Internet Service Provider) that supports this type of connection. -
Page 10: Connect & Power Up
Connect & Power Up Connect Cables 1. Remove rear cover of the RG unit by pressing the latches. Figure 2-1 Removing rear cover release latches unit rear cover 2. Write down the ID of your Residential Gateway as you will need it later. You can find the RG ID on a small label on the rear of the unit (see Figure 2-2 on the next page). - Page 11 Connect & Power Up - Connect Cables Figure 2-2 Label with ID (example) RG ID 3. Plug the power connector into the power socket on the RG unit (see Figure 2-3). Figure 2-3 Connecting Power Adapter ORiNOCO Residential Gateway - Getting Started...
- Page 12 Connect & Power Up - Connect Cables 4. If you want to connect to the Internet via your phone line (as described on page 1-5): plug the telephone cable connector into socket A (see Figure 2-4). Figure 2-4 Connecting Telephone Cable Plug the opposite end of the phone cable connector into a phone outlet.
- Page 13 Connect & Power Up - Connect Cables NOTE: Ethernet cables are not included, they are available from your local computer dealer. See Appendix A for detailed information about possible cable types. 6. Close the rear cover by attaching it to the unit. Press the latches to insert the unit into the rear cover.
-
Page 14: Power-Up The Unit
Connect & Power Up - Power-up the Unit Power-up the Unit 1. Plug the power adapter into an AC power outlet. WARNING: After applying power to the RG, do not cover the unit or block the airflow to the unit with any other objects. Figure 2-6 Residential Gateway LEDs Power... - Page 15 Connect & Power Up - Power-up the Unit Table 2-1 LED Activity Table (normal operation) Icon Name Color/Activity Description Power Steady Green Power enabled Wireless Off, or Flashing Green Wireless activity Ethernet Off, or Flashing Green Ethernet activity Telephone Off, or Flashing Green Modem activity Modem NOTE:...
- Page 16 Customizing the RG Settings Introduction Having installed the ORiNOCO PC Card, the Residential Gateway (RG) is ready for use in a Wireless Network as described on page 1-4. To connect to the Internet you will need: Subscription to an Internet Service Provider (ISP). Customize the RG settings by using the RG Setup Utility.
-
Page 17: Customizing The Rg Settings Introduction
Customizing the RG Settings - Introduction 5. Follow the instructions on your screen. If you encounter difficulty accessing the RG device to view or modify its current settings: Verfiy that the Network Name setting of your PC Card matches the exact value of the RG ID. -
Page 18: View/Modify Rg Settings
Customizing the RG Settings - View/Modify RG Settings View/Modify RG Settings The RG Setup Utility allows you to view or modify the following network settings: Internet Access settings Wireless Connection settings Internet Access Settings To setup your Residential Gateway (RG) for Internet Access you will need information from your Internet Service Provider (ISP), like for example a user name, password, telephone number and/or IP address. -
Page 19: Finding Information
Customizing the RG Settings - Finding Information Finding Information This Getting Started manual provides only basic instructions. For more detailed information, please consult the Online Help that was installed with the ORiNOCO software. This Online Help contains detailed instructions, including a troubleshooting section. For context-sensitive help press the button on the screens of your Help... - Page 20 Using your RG General Guidelines When using your Residential Gateway (RG) please follow the guidelines listed below: Safety Guidelines Do not cover the unit or block the airflow to the unit. Keep the RG away from excessive heat and humidity. Keep the unit free from vibration and dust.
- Page 21 Using your RG - Wall Mount the RG Wall Mount the RG If you want to mount the Residential Gateway (RG) to the wall proceed as follows: 1. Remove the rear cover as described in Chapter 2. 2. Use a sharp pointed object (like a small screwdriver) to open the three rear cover screw holes (see Figure 4-1).
- Page 22 Specifications Technical Specifications Compatibility IEEE 802.11 Standard for high speed Wireless LANs. Wireless Fidelity (Wi-Fi) certified by the Wireless Ethernet Compatibility Alliance (WECA). Bit Error Rate better than 10 Range up to 550 metres (see details on page A-3) Frequency band / Channels 2.4 Ghz.
- Page 23 Specifications Interfaces (built-in) Modem 56K, V.90, RJ-11 connector (female) modem Ethernet 10BASE-T, RJ-45 (female) socket Wireless ORiNOCO Interface power socket Ethernet socket unit 1.8 m/ 6ft. cable included. Use cross-over cables (not included) for connection to external modems. Use regular cables for connection to HUB or switch.
- Page 24 Specifications Radio Specifications Radio Output Power 15 dBm (nominal) Spreading 11-chip Barker Sequence Wireless Data Rate Environment 11 Mb/s 5.5 Mb/s 2 Mb/s 1 Mb/s Max. range 160 m 270 m 400 m 550 m (525 ft.) (885 ft.) (1300 ft.) (1750 ft.) Modulation DSSS CCK...
- Page 25 Specifications NOTE: The range values provide a rule of thumb and may vary according to the actual radio conditions at the location where the product will be installed. The range of your wireless devices can be affected when: Antennas have been placed near metal surfaces and solid high- density materials.
- Page 26 Consult the dealer or an experienced radio/TV technician for help Lucent Technologies is not responsible for any radio or television interference caused by unauthorized modification of the device, or the substitution or attachment of connecting cables and equipment other than specified by Lucent Technologies. The correction of interference caused by such unauthorized modification, substitution or attachment will be the responsibility of the user.
- Page 27 Regulatory Information Exposure to Radio Frequency Radiation The radiated output power of the equipment is far below the FCC radio frequency exposure limits. Nevertheless, it is advised to use the equipment in such a manner that the potential for human contact during normal operation is minimized. Use of the internal modem The internal modem of this equipment complies with Part 68 of the FCC Rules.
- Page 28 Regulatory Information may need service. See the service and support information that came with your product for instructions on how to contact Lucent Technologies or a Lucent Technologies authorized service provider for assistance. If you do not disconnect your equipment when it is adversely affecting the telephone line, the telephone company has the right to disconnect your service temporarily until you correct the problem.
- Page 29 Regulatory Information terminals allowed to be connected to a telephone interface. The termination on an interface may consist of any combination of devices subject only to the requirement that the sum of the Ringer Equivalence Numbers of all the devices does not exceed five (5.0) Telephone jack type: CA11A Repairs Repairs to certified equipment should be made by an authorized Canadian maintenance facility...
- Page 30 Regulatory Information Some telephone companies require that you notify the local business office when you hook up a modem to their lines. Australia Use of the internal modem All telecommunications devices are required to be labelled as complying to the Australian telecommunications standards, ensuring the health and safety of the operator and the integrity of the Australian telecommunications network.
- Page 31 Regulatory Information with the New Zealand telecommunications standards, ensuring the health and safety of the operator and the integrity of the New Zealand telecommunications network. Note: Customers in New Zealand who are prompted to choose a country for their modem should choose the “Australia”...
- Page 32 Technical Support If you encounter problems when installing or using this product, please consult the ORiNOCO website at: for: http://www.lucent.com/orinoco the latest software, user documentation and product updates the Frequently Asked Questions (FAQ) Alternatively please contact your local authorized ORiNOCO reseller for Technical Support.
