Item # 1001 518 096
Model # FCS70357CS-ST
USE AND CARE GUIDE

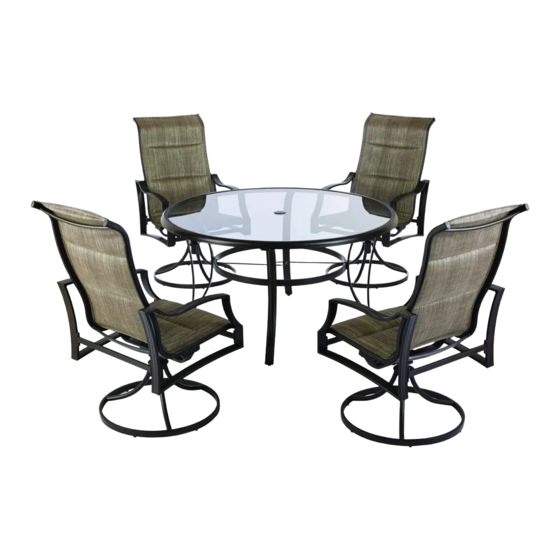

STATESVILLE 5PC DINING SET
Questions, problems, missing parts? Before returning to the store
call Hampton Bay Customer Service.
8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday
1-855-HD-HAMPTON
HAMPTONBAY.COM
THANK YOU
We appreciate the trust and con dence you have placed in Hampton Bay through the purchase of this dining set. We strive to continually create
quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
Thank you for choosing Hampton Bay!

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the STATESVILLE FCS70357CS-ST and is the answer not in the manual?

Questions and answers

Related Manuals for HAMPTON BAY STATESVILLE FCS70357CS-ST

Summary of Contents for HAMPTON BAY STATESVILLE FCS70357CS-ST

  • Page 1 THANK YOU We appreciate the trust and con dence you have placed in Hampton Bay through the purchase of this dining set. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.

  • Page 2: Table Of Contents

    Table of Contents Table of Contents ............2 Pre-Assembly ..............3 Safety Information ............2 Planning Assembly ..............3 Hardware Included ..............3 Product Caution ..............2 Safety Warnings ..............2 Chair Package Contents ............4 Table Package Contents ............5 Warranty ................

  • Page 3: Pre-Assembly

    Pre-Assembly PLANNING ASSEMBLY Read all instructions before assembly. To avoid damaging this product, assemble it on a soft, non-abrasive surface such as carpet or cardboard. NOTE: More than one person may be required to assemble this product. HARDWARE INCLUDED NOTE: Hardware not shown to actual size. Part Description Quantity...

  • Page 4: Chair Package Contents

    Pre-Assembly (continued) CHAIR PACKAGE CONTENTS Part Description Quantity Chair bucket Left arm Right arm support bar Front connection bar Rear connection bar Swivel base...
  • Page 5 Pre-Assembly (continued) TABLE PACKAGE CONTENTS Part Description Quantity Table top Table leg Leg connector HAMPTONBAY.COM Please contact 1-855-HD-HAMPTON for further assistance.

  • Page 6: Chair Assembly

    Chair Assembly Connecting the support bar to the chair bucket Place the chair bucket (A) upside down on a soft surface. Attach the support bar (D) to the bottom of the chair bucket (A) using M8x20 hex bolts (EE), M8 spring washers (FF) and M8 washers (GG).
  • Page 7 Chair Assembly (continued) Connecting the left arm to the chair bucket and the connection bars Attach the left arm (B) to the chair bucket (A) using M6x30 bolts (AA) and M6 washers (DD). Attach the front connection bar (E) and rear connection bar (F) to the left arm (B) using M6x18 bolts (CC) and M6 washers (DD). NOTE : Loosely tighten all the bolts using the hex wrench (HH).
  • Page 8 Chair Assembly (continued) Connecting the right arm to the chair bucket and connection bars Repeat step 2 to attach the right arm (C) to the chair bucket (A) and front connection bar (E) and rear connection bar (F). NOTE : Loosely tighten all the bolts using the hex wrench (HH).
  • Page 9 Chair Assembly (continued) Tightening all bolts, connecting the support bar to the swivel base Turn the chair right side up. Fully tighten all bolts. Insert the support bar (D) into the swivel base (G). HAMPTONBAY.COM Please contact 1-855-HD-HAMPTON for further assistance.
  • Page 10 Chair Assembly (continued) Checking the chairs Ensure all connections are secure before use.
  • Page 11 Table Assembly Connecting the leg connector to the table legs Attach the leg connector (J) to the table legs (I) using M6x20 bolts (BB) and M6 washers (DD). NOTE : Loosely tighten all the bolts using the hex wrench (HH). HAMPTONBAY.COM Please contact 1-855-HD-HAMPTON for further assistance.
  • Page 12 Table Assembly (continued) Connecting the table legs to the table top Place the table top (H) upside down on a soft surface. Attach the assembled table legs (I) to the table top (H) using M6x20 bolts (BB) and M6 washers (DD) as shown below. NOTE : Loosely tighten all the bolts using the hex wrench (HH).

  • Page 13: Care And Cleaning

    Table Assembly (continued) Tightening the bolts Once all bolts are in place, fully tighten all the bolts. Turn the table right side up. Ensure that all connections are secure before use. Care and Cleaning For best results, clean the frame and fabric with a damp cloth and dry thoroughly. This will help prevent mildew by removing dirt particles that may accumulate.
  • Page 14 Questions, problems, missing parts? Before returning to the store, call Hampton Bay Customer Service. 8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday 1-855-HD-HAMPTON HAMPTONBAY.COM Retain this manual for future use.
