- Page 1 PHOTOCENTRIC CURE L INSTALLATION GUIDE CUR E L UK - Cambridge House, Oxney Road, Peterborough, PE1 5YW. +44 1733 349937 www.photocentricgroup.com USA - 2205 West Parkside Lane, Phoenix, 85027, AZ. (623) 581-3220...

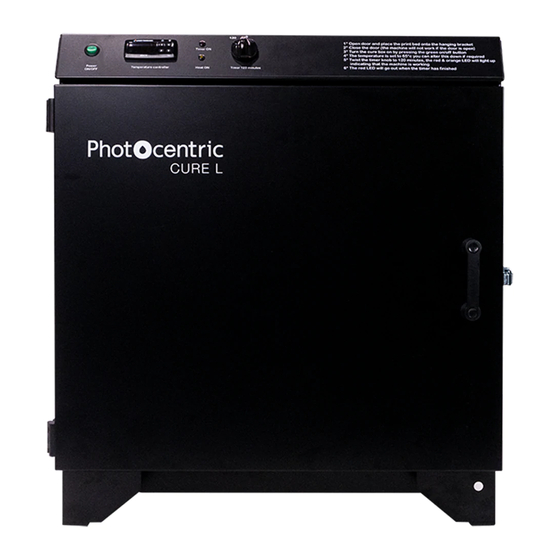

- Page 2 CURE L PHOTOCENTRIC CURE L INSTALLATION GUIDE 1. Cure L at a glance Figure 1: Cure L general layout On Off switch Timer indicator Heater Glass shelf Internal fan Heater indicator Door seal Timer switch Rear UV light Temperature unit...
- Page 3 CU RE L CU RE L 2. Suitable location When choosing a suitable location for your Photocentric Cure L, allow plenty of space (see Figure 2 and Figure 3). All diagrams have dimensions in millimetres unless otherwise stated. Consider the ergonomics of operating the cure unit.
- Page 4 3. Unboxing & Placing Cure L Remove the outer packaging and recycle it. Photocentric Cure L weighs 64 kg. Carefully consider how it will be lifted into position. Allow plenty of space to work and remove any potential obstructions. Four people will be required to lift Photocentric Cure L, one at each corner.
