UK - Cambridge House, Oxney Road, Peterborough, PE1 5YW. +44 1733 349937
USA - 2205 West Parkside Lane, Phoenix, 85027, AZ. (623) 581-3220
www.photocentricgroup.com

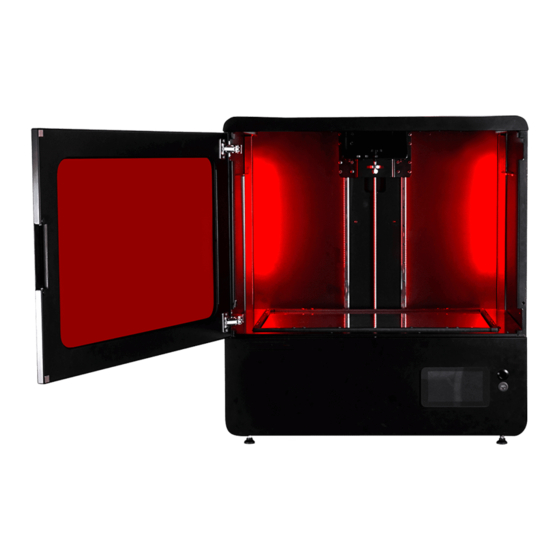

LC MAGNA
SETUP

Advertisement

loading
Need help?

Need help?

Do you have a question about the LC MAGNA and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for PhotoCentric LC MAGNA

Summary of Contents for PhotoCentric LC MAGNA

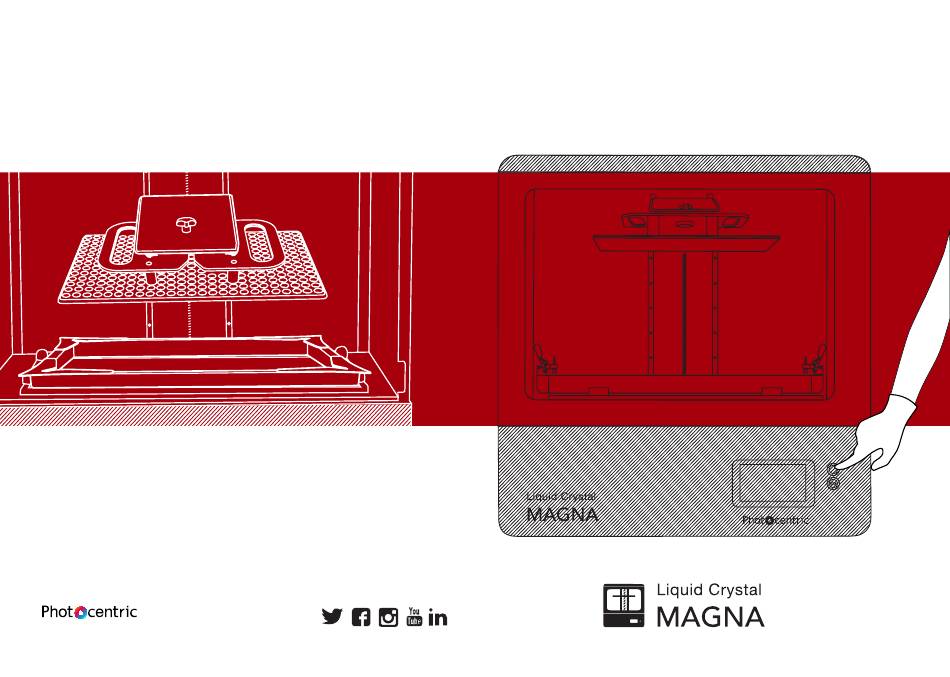

  • Page 1 LC MAGNA SETUP UK - Cambridge House, Oxney Road, Peterborough, PE1 5YW. +44 1733 349937 www.photocentricgroup.com USA - 2205 West Parkside Lane, Phoenix, 85027, AZ. (623) 581-3220...
  • Page 2 LC MAGNA SETUP 1. Liquid Crystal Magna at a glance 1. LIFTING HANDLES 1. PRINT PLATE TURN KNOB 2. PRINT PLATE (IN HOME POSITION) 2. EXTRACTION PORT 3. RESIN VAT 4. SHUT OFF RESET BUTTON 5. POWER BUTTON 3. POWER CONNECTION 6.

  • Page 3: Ambient Light

    2. Suitable location When choosing a suitable location for your Liquid Crystal Magna, allow plenty of space (see Figure 3 and Figure 4). All diagrams have dimensions in millimetres unless otherwise stated. Consider the ergonomics of operating the machine. Ambient light Liquid Crystal Magna uses resins that cure when exposed to light in the blue part of the spectrum.
  • Page 4 3. Un-crating Magna 4. Lifting Magna 4-1. We recommend using a forklift truck or pallet lifting machine to handle your Liquid Crystal Magna. - Lift the printer from the front or back, not the side (Figure 5). - Adjust the fork spacing so that both forks fit between the feet. - Make sure that the forks reach fully under the printer before lifting.
  • Page 5 4-2. Alternatively, you can lift Liquid Crystal Magna with a winch 4-3. If it is necessary to lift Liquid Crystal Magna manually, four or hoist (eg an engine hoist). people will be required. - Make sure the equipment used is rated to safely carry the load. - Remove the door and cover panels as described above (Section 4-2).

  • Page 6: Power Requirements

    5. Extraction 6. Power requirements Liquid Crystal Magna has an extraction port on the back, with a - Liquid Crystal Magna requires a mains power supply with a voltage cover plate. The cover plate is attached by four screws (Figure of 100 VAC - 240 VAC and a frequency of 50 Hz - 60 Hz.
  • Page 7 7. Connectivity NOTES - Liquid Crystal Magna has a USB socket and an RJ45 network socket on the back (Figure 10). - Plug a Wi-Fi dongle (provided) into the USB port if you would like to access your printer via a Wi-Fi network connection. - Plug a network cable (eg CAT6) into the RJ45 socket if you would like to access your printer via a wired network connection.
  • Page 8 NOTES NOTES Contact for further enquiries Mon – Friday – 09:00 – 17:00 GMT Telephone +44(0)203 2391417 magna.concierge@photocentric.co.uk Cambridge House, Oxney Road, Peterborough, PE1 5YW www.photocentricgroup.com...
