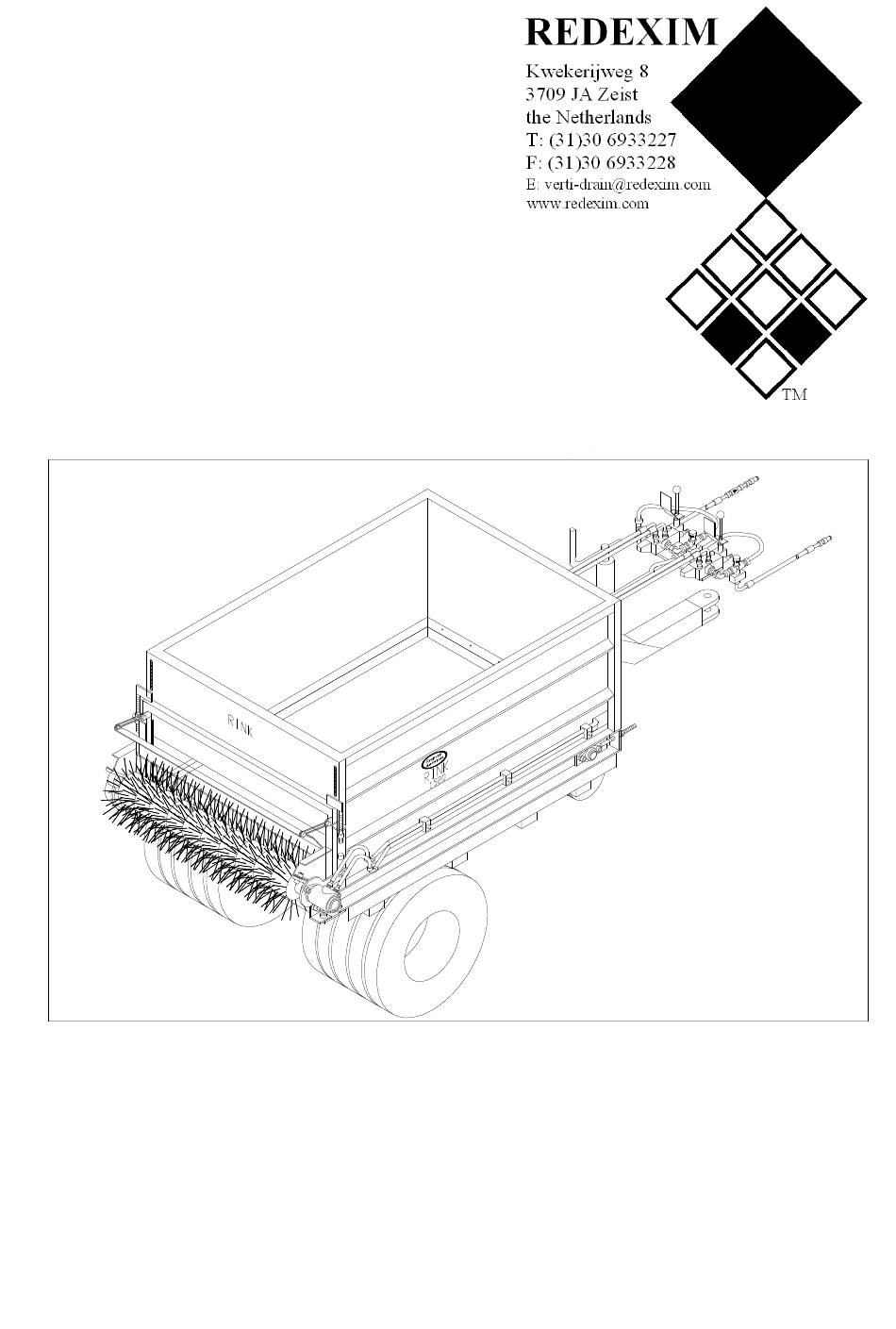

Operating and Parts
manual
RINK
Model 1520
Serial number:
IN ORDER TO ENSURE THE SAFE USE AND TO ACHIEVE THE
BEST PERFORMANCE, IT IS ESSENTIAL THAT THIS OPERATING
MANUAL IS CAREFULLY READ BEFORE THE RINK IS USED.
NOTE:
0948 English 933.120.412

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RINK 1520 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Redexim RINK 1520

Summary of Contents for Redexim RINK 1520

  • Page 1 Operating and Parts manual RINK Model 1520 Serial number: NOTE: IN ORDER TO ENSURE THE SAFE USE AND TO ACHIEVE THE BEST PERFORMANCE, IT IS ESSENTIAL THAT THIS OPERATING MANUAL IS CAREFULLY READ BEFORE THE RINK IS USED. 0948 English 933.120.412...

  • Page 2: Table Of Contents

    T A B L E O F C O N T E N T S Contents Page Safety regulations................ 3, 4 Short description ................. Technical data................Initial Operating ................Operation ....................* Before every ride................. * Coupling and taking off .............. * Loading..................

  • Page 3: Safety Regulations

    SAFETY REGULATIONS Topdresser 1520 is built solely for spreading small-grained, loose material such as sand, small granular material or similar products. Any other usage is not in accordance with the indicated use. The manufacturer does not answer for any damage resulting from incorrect usage. The user alone has to incur the risk.
  • Page 4 SAFETY REGULATIONS (6) Before starting work, the operator must make himself familiar with all fittings and controls as well as their functioning. Spreaders must be properly attached (Risk of injuries !) Before driving away, check the immediate vicinity and care for a good field of vision. (7) Whilst spreading is in operation, no one is allowed to enter the loading ramp.

  • Page 5: Short Description

    SHORT DESCRIPTION The Topdresser 1520 is used for spreading small-grained, loose material, such as sand, small granular material or similar products. The spreading equipment of the Topdresser is driven by a gear box with hydraulic motor for conveyor belt and a separate hydraulic motor for the brush roll.

  • Page 6: Initial Operating

    INITIAL OPERATING The user is responsible for the transport of the Rink 1520 behind the tractor along the public streets. Check on the national legislations. * After the first ride with a full load - Retighten wheel nuts. - Check wheel hub clearance and have it adjusted, if necessary.

  • Page 7: Coupling And Taking Off

    OPERATION Coupling and taking off When the spreader has come to a stop, use the change lever brake and secure spreader by means of wheel chocks to prevent it from rolling away. - Attach spreader to towing vehicle; for spreaders licensed by the Technical Control Board, additionally apply the catchment loop around the coupling mouth of the towing vehicle.

  • Page 8: Spreading

    SPREADING Controls: 1 Regulator for adjusting the number of revolutions of the brush roll: Scale distribution 0 to 10 2 Brush roll shift lever: Middle setting: Drive of the brush roll OFF Front setting (A): Brush roll spreads at the bottom side Rear setting (B): Brush roll spreads at the top side 3 Regulator for setting the speed of the conveyor belt:...

  • Page 9: Repair And Maintenance

    REPAIR AND MAINTENANCE Lubricate spreader (every 50 operating hours) Lubricate with multi-purpose grease: 1 Bearings on both sides of the brush roll 2 Bearings on both sides of the rear conveyor shaft 3 Bearings on both sides of the front conveyor shaft Bearings without a lubricating nipple require no greasing.

  • Page 10: Oil Change For Conveyor Belt Gears (Every 2 Years)

    REPAIR AND MAINTENANCE Oil change for conveyor belt gears (every 2 years) - Unscrew filler screw (1). - Loosen drain plug (2) from the below inside area and drain off oil. - Screw on drain plug. - Add oil SAE 120 to 140 right up to the level of the filler screw (1). - Screw on filler screw.

  • Page 11: Adjust Distance Between The Brush And Belt

    REPAIR AND MAINTENANCE Adjust distance between the brush rolls (according to requirements) - Loosen the two screws (4) on both sides of the brush roll. - Move the brush roll until it slightly contacts the conveyor belt. - Retighten screws (4). - Loosen screws (2) and (3) on both sides of the protective plate (1).

  • Page 12: Installing And Removing The Conveyor Belt

    REPAIR AND MAINTENANCE Installing and removing the conveyor belt - Remove both triangular plate and lateral cover plate ( A & B). - Release tension in conveyor belt, evenly loosen the tension bolt (1) on both sides. - Take off conveyor belt gear, loosen screw (6) frontside. - Take off eccentric ring (8) at the flange bearing (9) on both sides and unscrew flange bearing on both sides.

  • Page 13: External Hydraulic Unit

    REPAIR AND MAINTENANCE External hydraulic unit Oil change for the hydraulic pump (every 100 operating hours) - Unscrew filler screw (1). - Loosen drain plug (2) and drain off oil. - Screw on drain plug with new gasket. - Add oli SAE 90 right up to the level of the control screw (3). - Screw on filler screw with new gasket.
  • Page 14 Parts list RINK 1005/ 1010 ( Only most important parts are mentioned) Ordering spare parts To ensure that your spare parts order can be processed quickly, always specify the following data when ordering. - Chassis number / Ident. number - Model (year of construction if available) - Part number from respective spare parts list - Designation - Order number...
