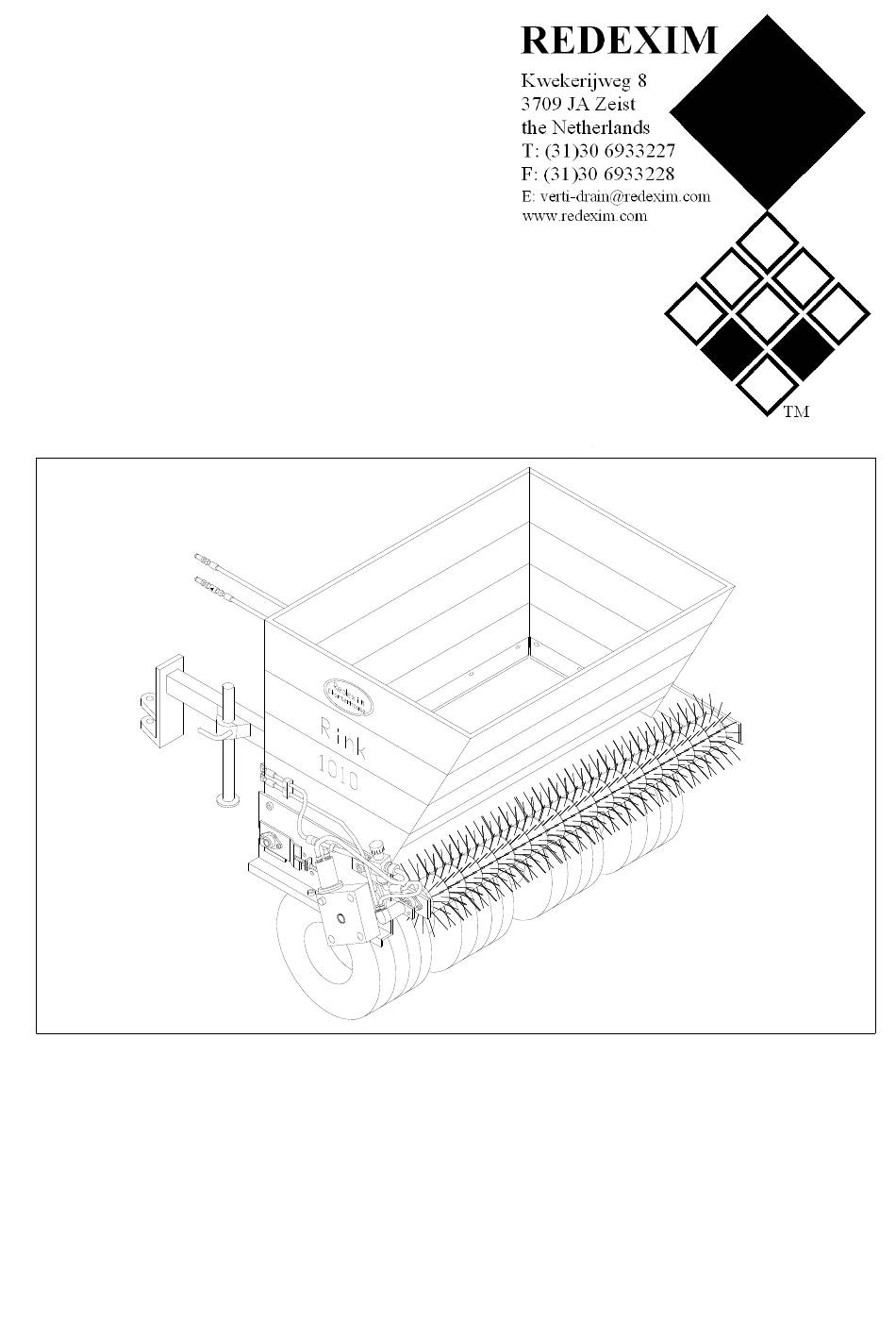

Operating and Parts
manual
RINK
Model 1005 & 1010
Serial number:
NOTE:
IN ORDER TO ENSURE THE SAFE USE AND TO ACHIEVE THE
BEST PERFORMANCE, IT IS ESSENTIAL THAT THIS OPERATING
MANUAL IS CAREFULLY READ BEFORE THE RINK IS USED.
0948 English 933.120.410

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RINK 1005 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Redexim RINK 1005

Summary of Contents for Redexim RINK 1005

  • Page 1 Operating and Parts manual RINK Model 1005 & 1010 Serial number: NOTE: IN ORDER TO ENSURE THE SAFE USE AND TO ACHIEVE THE BEST PERFORMANCE, IT IS ESSENTIAL THAT THIS OPERATING MANUAL IS CAREFULLY READ BEFORE THE RINK IS USED. 0948 English 933.120.410...

  • Page 2: Table Of Contents

    T A B L E O F C O N T E N T S Contents Page Safety regulations................ 3, 4 Short description ................. Technical data ................Initial Operating ................Operation ....................* Before every ride ................. * Coupling and taking off............... * Loading..................

  • Page 3: Safety Regulations

    SAFETY REGULATIONS Topdresser 1005/ 1010 is built solely for spreading small-grained, loose material such as sand, small granular material or similar products. Any other usage is not in accordance with the indicated use. The manufacturer does not answer for any damage resulting from incorrect usage. The user alone has to incur the risk.

  • Page 4: Short Description

    SAFETY REGULATIONS (6) Before starting work, the operator must make himself familiar with all fittings and controls as well as their functioning. Spreaders must be properly attached (Risk of injuries !) Before driving away, check the immediate vicinity and care for a good field of vision. (7) Whilst spreading is in operation, no one is allowed to enter the loading ramp.

  • Page 5: Technical Data

    The Topdresser 1005/ 1010 is used for spreading small-grained, loose material, such as sand, small granular material or similar products. The spreading equipment of the Topdresser is driven by a gear box with hydraulic motor for conveyor belt and a separate hydraulic motor for the brush roll.

  • Page 6: Initial Operating

    INITIAL OPERATING * Should the spreader be used on public roads (German law: only possible with licensing certificate and registration) Attach license plate to plate holder at the left-handed rear side. - Check lighting set * After the first ride with a full load - Retighten wheel nuts.

  • Page 7: Coupling And Taking Off

    OPERATION Coupling and taking off - Attach spreader to towing vehicle. - Carry out hydraulic connection: - Pressure pipe positioned below, return pipe above, Oil circulation is required. In the factory, the hydraulic system was filled with the hydrauic liquid CG46. - With External Oil Supply , mount the plug-on pump on the PTO driver on the tractor and secure against slippage using the mounted torque support.
  • Page 8 Controls: The brush roller speed can only be controlled by the tractor revs. 1 Regulator for setting the speed of the conveyor belt: Scale distribution 0 to 10 Adjusting spreading thickness: The spreading thickness (mm) is dependent on - the speed of the towing vehicle - the speed of the conveyor belt (regulator) Set the required spreading thickness on a firm surface before starting work.

  • Page 9: Lubricate Spreader (Every 50 Operating Hours)

    Lubricate spreader (every 50 operating hours) Lubricate with multi-purpose grease: 1 Bearings on both sides of the brush roll 2 Bearings on both sides of the rear conveyor shaft 3 Bearings on both sides of the front conveyor shaft 4 Bearings on both sides of the drive axle Bearings without a lubricating nipple require no greasing.

  • Page 10: Oil Change For Conveyor Belt Gears (Every 2 Years)

    Oil change for conveyor belt gears (every 2 years.) - Unscrew filler screw (1). - Loosen drain plug (2) from the below inside area and drain off oil. - Screw on drain plug with new gasket. - Add 0.6 l Oil SAE 120 to 140. - Screw on filler screw with the new gasket.

  • Page 11: Stretch Conveyor Belt (In Case Of Slipping)

    - Loosen the two screws (1) on each side of the brush roll. - Move the brush roll until it slightly contacts the conveyor belt. - Retighten screws (1). Stretch conveyor belt (in case of slipping) -Loosen counternut (1). -Turn nut (2) once clockwise. -Tighten counternut.

  • Page 12: Stretching Conveyor Belt After Assembly

    - Remove the brush roller by loosening the screws (2). - Release the tension on the conveyor belt on both sides (3). - Remove the bearing on the right seen in the direction of travel (4). - Pull away the side element (5) with tension bearing (6). - Remove the conveyor belt.
  • Page 13 - Screw the filling nozzle back on. Please note: This is a closed hydraulic circuit. In order to prevent the ingress of contaminants, the runback filter (4A) must be replaced every 100 operating hours. Parts list RINK 1005/ 1010 ( Only most important parts are mentioned)
  • Page 14 Ordering spare parts To ensure that your spare parts order can be processed quickly, always specify the following data when ordering. - Chassis number / Ident. number - Model (year of construction if available) - Part number from respective spare parts list - Designation - Order number Ordering example:...

This manual is also suitable for:

Rink 1010
