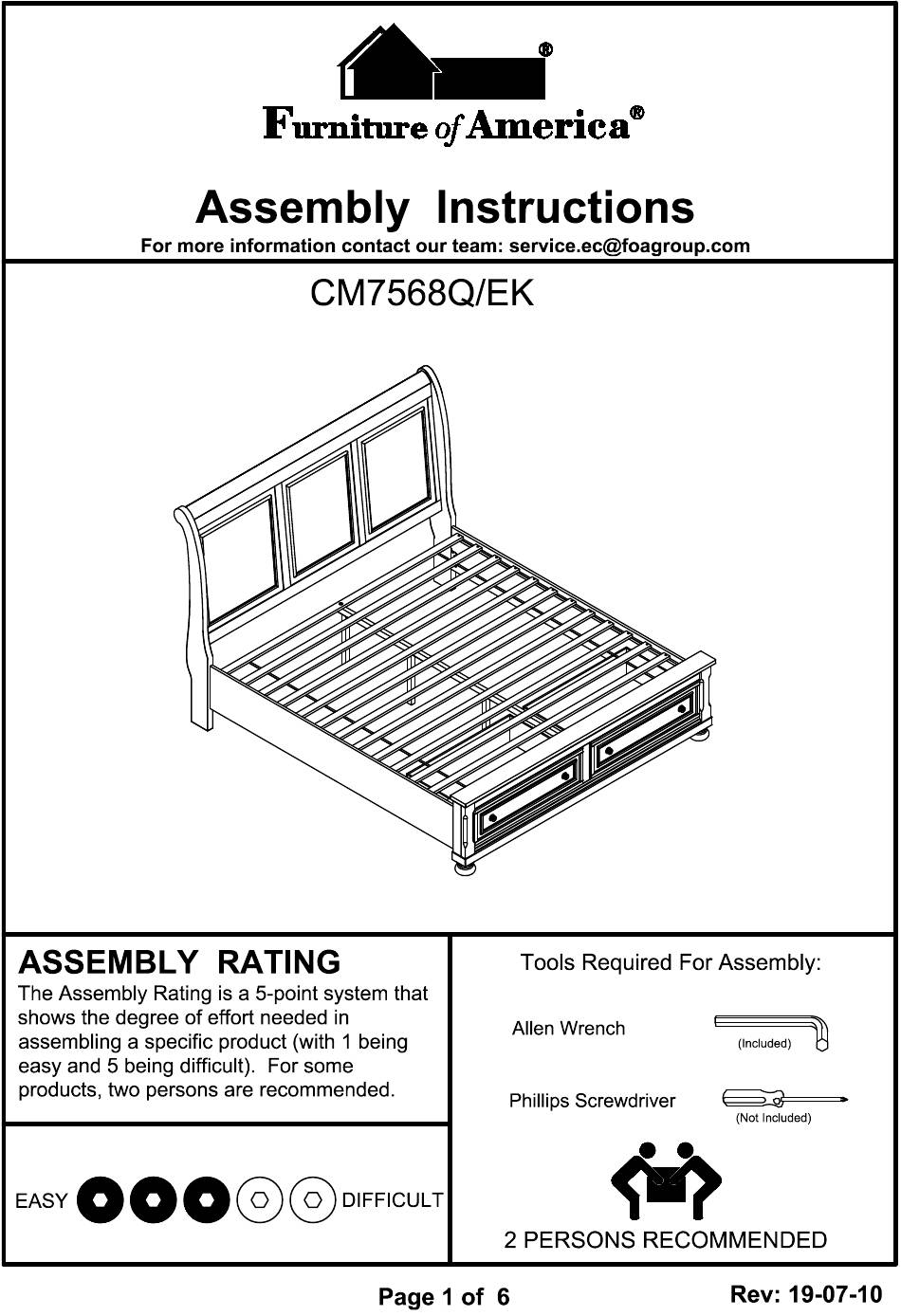

Assembly Instructions
EASY
DIFFICULT
Page 1 of 6
ASSEMBLY RATING
The Assembly Rating is a 5-point system that
shows the degree of effort needed in
assembling a specific product
(with 1 being
easy and 5 being difficult). For some
products, two persons are recommended.
CM75 68Q/EK
2 PERSONS RECOMMENDED
Tools Required For Assembly:
Allen Wrench
(Included)
For more information contact our team: service.ec@foagroup.com
Phillips Screwdriver
(Not Included)
Rev: 19-07-10
Advertisement
Related Manuals for Furniture of America CM7568Q
Summary of Contents for Furniture of America CM7568Q
- Page 4 Align HB legs (#2R/L) to the headboard (#1), then secure by using bolts (#A) with washers (#B,C).
- Page 5 Attach FB legs (#4) to the footboard (#3), then attach support leg (#5) to footboard (#3). Align and hook the side rails (#5) to the headboard (#1) and footboard (#3). Make sure it is firmly in place.
- Page 6 Attach support legs (#9,10) to the center support rail (#8), then adjust leveler of the support legs (#10) according to ground level. Align slats (#7) to side rails, then secure by using screws (#H). Align center slat (#8) to the slats (#7), then secure by using bolts (#D) with washers (#E,F)
