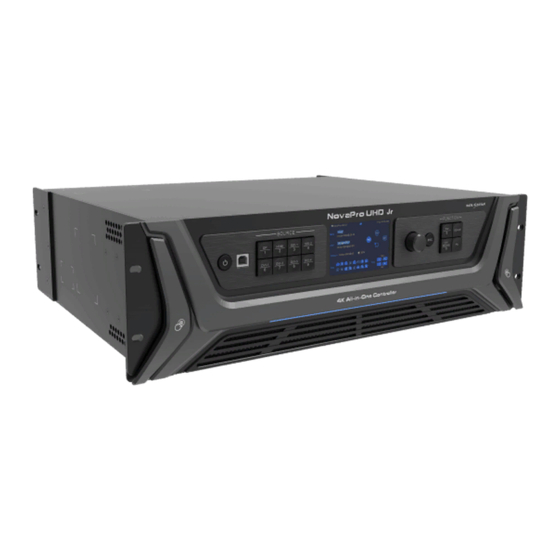

- Page 1 NovaPro UHD Jr All-in-One Controller V1.1.1 NS160000579 User Manual...
- Page 2 NovaPro UHD Jr All-in-One Controller User Manual Change History Version Hardware Release Date Description Version None V1.1.1 V1.1.0.0 2019-10-30 V1.1.0 V1.1.0.0 2019-10-09 New features: Added the third layer (PIP2). Added the description for optical fiber port and Ethernet port statuses displayed on home screen.
-
Page 3: Table Of Contents
NovaPro UHD Jr All-in-One Controller User Manual Contents 1 OVERVIEW ..................................1 2 APPEARANCE ................................. 2 2.1 F ................................2 RONT ANEL 2.2 R ................................3 ANEL 2.3 D ................................. 5 IMENSIONS 3 APPLICATIONS................................6 4 HOME SCREEN ................................7 5 MENU OPERATIONS .............................. -
Page 4: Overview
The NovaPro UHD Jr can send the processed video to the LED screen via Neutrik Ethernet ports and optical fiber ports. Thanks to its powerful video processing capabilities and sending functions, the NovaPro UHD Jr is well suited for stage control systems, conference sites, activities, exhibition sites and other high-end rental applications as well as fine-pitch LED displays. -
Page 5: Appearance
NovaPro UHD Jr All-in-One Controller User Manual 2 Appearance 2.1 Front Panel Button Description Power button Power on: Press the button to power on the device. Power off: Hold down the button to pop up a dialog box, then rotate the knob to select Yes and press the knob to power off the device. -
Page 6: Rear Panel
NovaPro UHD Jr All-in-One Controller User Manual 2.2 Rear Panel Input Connector Quantity Description Four DVIs are all single-link DVI connectors by default. − 4 × DVI inputs − Each DVI: Input resolution up to 1920×1200@60Hz, downward compatible − 4 DVI input sources constitute 1 input source (DVI MOSAIC). - Page 7 USB (Type-B) Connect to the PC for device control. Used as the input connector to connect a NovaPro UHD Jr unit for image mosaic USB (Type-A) Used as the output connector to connect a NovaPro UHD Jr unit for...
-
Page 8: Dimensions
NovaPro UHD Jr All-in-One Controller User Manual 2.3 Dimensions Unit: mm www.novastar.tech... -
Page 9: Applications
NovaPro UHD Jr All-in-One Controller User Manual 3 Applications www.novastar.tech... -
Page 10: Home Screen
4 Home Screen Figure 4-1 Home screen Table 4-1 Home screen descriptions Area Icon Description Denotes the layer is active and displays the layer input source name and resolution. Denotes the layer is inactive. Displays the resolution and frame rate of the configured screen. - Page 11 The Genlock function is not turned on successfully. Display control The LED screen displays the black screen. The LED screen displays the selected test pattern. The LED screen displays the current input source normally. The output image is frozen. The BKG function is turned on. The BKG function is turned off.
-
Page 12: Menu Operations
Figure 4-3 Optical fiber port statuses – Hot backup 5 Menu Operations Button descriptions: Knob On the home screen, pressing the knob enters the operation menu screen. On the operation menu screen, rotate the knob to select a menu item, and press the knob to confirm the selection or enter the submenu. -
Page 13: Screen Settings
5.2 Screen Settings You can configure the screen to make it display the whole image correctly. The options are Quick Configuration and Advance Configuration. 5.2.1 Quick Configuration Preconditions LED screen must be a regular screen. Cabinets of the screen must be regular cabinets with the same resolution. ... -
Page 14: Save To Rv Card
Step 2 Rotate the knob to choose Screen Settings > Advanced Configuration, and press it to enter its submenu. Step 3 Turn on the advanced configuration function, and then set the cabinet row and column quantities, horizontal offset, vertical offset and data flow for the target Ethernet port. Figure 5-3 Advanced configuration 5.2.3 Save to RV Card You can send and save the screen configuration to the receiving card. - Page 15 Figure 5-6 Importing controller cabinet configuration file Step 3 Click Add Configuration File to select the target file (*.rcfgx/*.rcfg) from your PC, and then click Open. Step 4 Click Save the Change to HW to save the configuration file to the NovaPro UHD Jr.
-
Page 16: Layer Settings
Figure 5-7 Saving configuration file to NovaPro UHD Jr Note: The configuration file for irregular cabinet is not supported. LED Screen Color You can adjust the screen color and the LED screen will display the effect in real-time. Table 5-1... -
Page 17: Main Layer And Pip
5.3.1 Main Layer and PIP Menu Description Status The status of the selected layer: On and Off Note: Press the PIP button in FUNCTION area on the device front panel to enter the layer settings screen. Input Source The input source of the layer Note: Press the input source button in SOURCE area on the device front panel to select the input source for the main layer. -
Page 18: Bkg
Figure 5-11 Capturing input source image 5.4 Input Settings 5.4.1 Input Source The NovaPro UHD Jr supports DP, HDMI, SDI-1, SDI-2 and DVI input connectors. Rotate the knob to select the desired input source and press the knob to enter the input source resolution menu. -
Page 19: Setting Input Source Resolution
Figure 5-12 Selecting input source 5.4.2 Setting Input Source Resolution You can adjust the resolution and frame rate of the input source through the following two ways. Standard resolution Custom resolution Figure 5-13 Setting input source resolution Note: SDI input source does not support resolution settings. -
Page 20: Dvi Mosaic
√ √ √ √ 1280×720@ (23.98/24/25/29.97/30/48/50/59.94/60) Hz √ √ √ √ 1280×1024@ (48/50/59.94/60/75/85) Hz √ 1364×768@ (50/59.94/60) Hz √ √ √ 1366×768@ (50/59.94/60) Hz √ √ √ √ 1440×900@ (60/75/85) Hz √ √ √ √ 1600×1200@ (48/50/59.94/60) Hz √... -
Page 21: Image Mosaic
5.5 Image Mosaic When the pixel count of the LED screen is larger than the loading capacity of a single NovaPro UHD Jr unit, the image mosaic function is required. The total loading capacity of all cascaded NovaPro UHD Jr units equals... -
Page 22: Preset Settings
Example: If the pixel count of the LED screen is 7680×4320 which exceeds the loading capacity of a single NovaPro UHD Jr unit, 4 NovaPro UHD Jr units are used together for image mosaic. The connections are shown in the below figure. -
Page 23: Display Control
Step 2 Rotate the knob to select the desired preset and press the knob to pop up a dialog box. In the box, four preset operations are provided: Save, Load, Clear or Copy To. Figure 5-20 Preset operations Save: Save the current layer layout and settings to the target preset. ... -
Page 24: Hdr
5.8.1 HDR HDR is the abbreviation for High-Dynamic Range. HDR function can greatly enhance the display image quality, allowing for a more clear and vivid image when the device is used together with NovaStar A8s/A10s receiving cards. Figure 5-21 System architecture... -
Page 25: Low Latency
5.8.2 Low Latency Low latency reduces the input source signal latency from input to output image of the NovaPro UHD Jr. This function can realize 2 frame delay from sending card to receiving card when the device is used together with NovaStar Armor series receiving cards. -
Page 26: Mode
Choose Advanced Functions > OPT Mode > Copy to set the OPT mode as copy. 5.8.4 3D Mode The NovaPro UHD Jr can work with the EMT200 3D transmitter and 3D glasses to provide you with 3D visual experience. For details, please see A 3D Function User Manual. -
Page 27: Self-Test
Signal Delay Time (us) Third-Party Transmitter 5.8.5 Self-Test You can test the device by yourself when the device fails, then feedback the result to NovaStar. 5.9 General Settings Figure 5-26 General settings 5.9.1 Hot Backup The NovaPro UHD Jr supports two hot backup modes: Set as Primary and Set as Backup. -
Page 28: Return To Home
5.9.7 About Us You can view the following information. Device hardware version Company website (www.novastar.tech) Email address (support@novastar.tech) 5.10 Partial Reset You can keep the saved parameters and reset the unsaved parameters to factory settings. The unsaved parameters include renaming, loading RCFGx files, BKG image files, preset parameters, Fn button settings, IP &... -
Page 29: Working Mode
Fiber Converter: Optical fiber ports are used for input, and Ethernet ports are used for output. Figure 5-29 Video controller mode Figure 5-30 Fiber converter mode 5.13 Langugage The NovaPro UHD Jr supports both Chinese and English. You can freely switch to either language. -
Page 30: Specifications
6 Specifications Power connector AC100V–240V 50/60Hz Electrical Specifications Power consumption 70 W Temperature 0° C–45° C Working Environment Humidity 0% RH–80% RH, non-condensing Temperature -10° C–60° C Storage Environment Humidity 0% RH–95% RH, non-condensing Dimensions 482.6mm×396.5mm×139.0mm Physical Specifications Net weight 6.3 kg Total weight 13 kg... -
Page 31: A 3D Function User Manual
3D Function User Manual For Single K16/NovaPro UHD Jr Unit Step 1 Select a 3D video source and connect the source to DVI, HDMI or DP connector of the K16/NovaPro UHD Jr unit. Step 2 Connect the K16/NovaPro UHD Jr unit to the EMT200 3D emitter and the LED screen in series via Ethernet cables. -
Page 32: Notes
Step 5 Select the same 3D video source format for all units. Select Side-by-Side, Top-and-Bottom or Frame Sequential according to the actual video source format. Step 6 Adjust the eye priority uniformly for all units. Since the left and right eye image switching manner of the video source may not be in sync with your shutter 3D glasses, you need to adjust the eye priority according to actual visual effect after the 3D mode is turned on.
