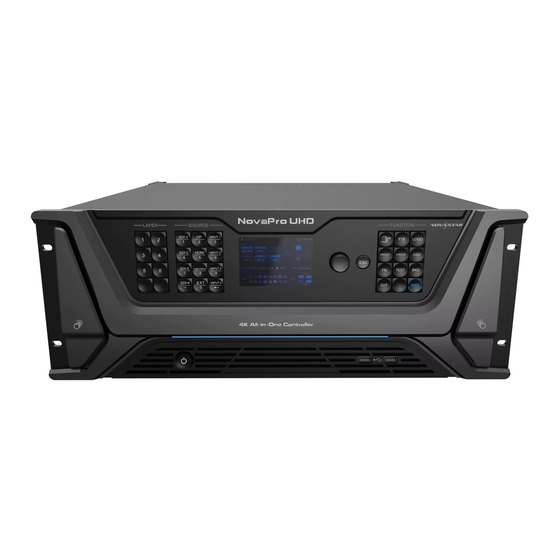

NovaStar NovaPro UHD Manual
All-in-one controller
Hide thumbs
Also See for NovaPro UHD:
- User manual (55 pages) ,
- User manual (52 pages) ,
- User manual (97 pages)
Subscribe to Our Youtube Channel
Related Manuals for NovaStar NovaPro UHD
Summary of Contents for NovaStar NovaPro UHD
- Page 1 NovaPro UHD All-in-One Controller Specifications Document Version: V1.0.0 Document Number: NS160100280...
- Page 2 Xi’an NovaStar Tech Co., Ltd. Statement You are welcome to use the product of Xi’an NovaStar Tech Co., Ltd. (hereinafter referred to as NovaStar). This document is intended to help you understand and use the product. For accuracy and reliability, NovaStar may make improvements and/or changes to this document at any time and without notice.
- Page 3 The NovaPro UHD is equipped with industry-standard 4K connectors, and has some added new functions such as video rotation processing and video transition effects. With the built-in Master VI smart platform, the NovaPro UHD supports layer creation, property settings, and screen configuration via simple mouse, keyboard, and monitor operations.
- Page 4 NovaPro UHD All-in-One Controller Specifications 2 Features Features A variety of input connectors: 4 × 12G-SDI connectors with loop output functions, 1 × HDMI 2.0 with loop output functions, 1 × DP 1.2, and 1 × USB playback port 1 ×...
-
Page 5: Front Panel
NovaPro UHD All-in-One Controller Specifications 3 Appearance Appearance Front Panel Button Function This is the power button of the device. ON/OFF button Press it to power on the device. Hold it down to power off or restart the device. - Page 6 NovaPro UHD All-in-One Controller Specifications 3 Appearance selection buttons Press a button to quickly select an input source. Blue: The input source is accessed and in normal use. White: The input source is accessed but not in use. ...
-
Page 7: Rear Panel
NovaPro UHD All-in-One Controller Specifications 3 Appearance Rear Panel Input Connector Quantity Description 12G-SDI Input resolution up to 4K×2K@60Hz and downward compatible 12G-SDI loop output DP 1.2 Input resolution up to 4K×2K@60Hz (8K×1K@60Hz) and downward compatible HDCP 1.3 HDMI 2.0 Input resolution up to 4K×2K@60Hz (8K×1K@60Hz) and... - Page 8 NovaPro UHD All-in-One Controller Specifications 3 Appearance perform mixed preview HDMI 1.4 connector, used as auxiliary output connector for connecting an auxiliary device, such as a teleprompter Control Connector Quantity Description ETHERNET Connect to the PC for communication or connect to the network.
- Page 9 NovaPro UHD All-in-One Controller Specifications 4 Dimensions Dimensions Unit: mm www.novastar.tech...
- Page 10 NovaPro UHD All-in-One Controller Specifications 5 Applications Applications www.novastar.tech...
-
Page 11: Specifications
NovaPro UHD All-in-One Controller Specifications 6 Specifications Specifications Overall Specifications Connector Quantity Description Power connector AC 100V–240V 50/60Hz Dual power supply design Power consumption 180 W Operating temperature 0°C–45°C Storage temperature -20°C–70°C Operating humidify 0% RH–80% RH, non-condensing Dimensions 4U standard chassis...
