ARIBEX Nomad Pro 2 Operator's Manual

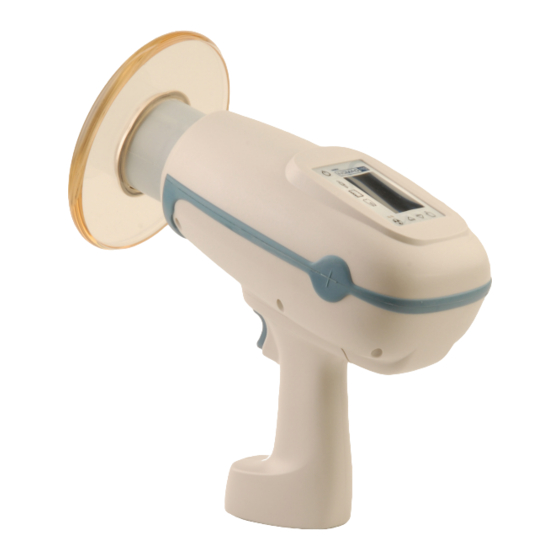

Handheld x-ray system for intraoral radiographic imaging
Hide thumbs Also See for Nomad Pro 2:
Table of Contents

Advertisement

Quick Links

PRO 2
®
Handheld X-ray System
for Intraoral Radiographic Imaging
O
M
peratOr
anual
M
anufactured by

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Nomad Pro 2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ARIBEX Nomad Pro 2

Summary of Contents for ARIBEX Nomad Pro 2

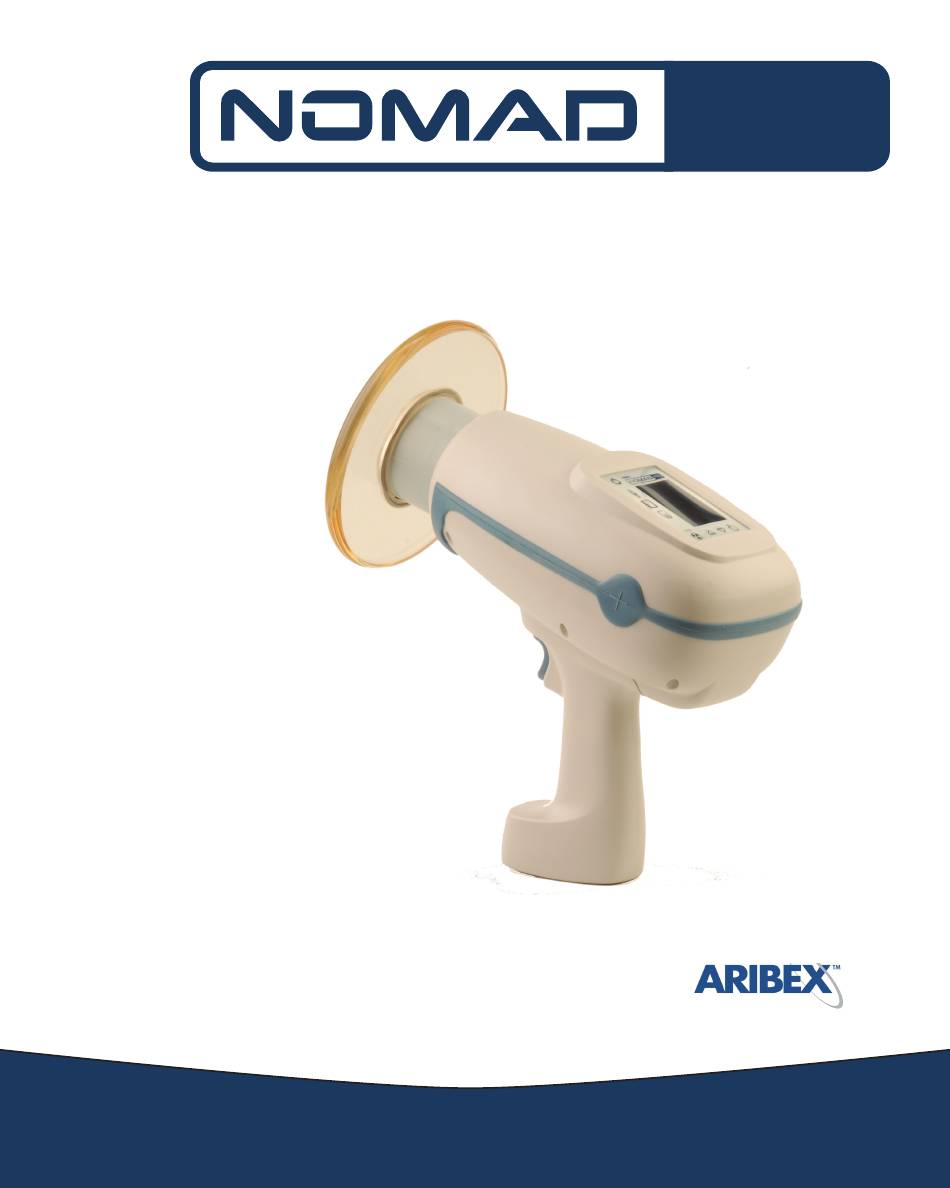

  • Page 1 PRO 2 ® Handheld X-ray System for Intraoral Radiographic Imaging peratOr anual anufactured by...
  • Page 2 Aribex and NOMAD are registered trademarks within the United States and other countries. NOMAD Dental, NOMAD Pro, NOMAD Pro 2, PORTA-X, and the ARIBEX and NOMAD logos are trademarks of Aribex, Inc. worldwide. U.S. patents issued: 7,224,769 and 7,496,178.
  • Page 3 The symbols used in this publication or used to mark the equipment have the following meanings: Attention, consult accompanying documents Ionizing Radiation Type BF Equipment (providing a degree of protection against electric shock, pertaining particularly to allowable leakage currents) Instructions for handling product at end of life Reference to a radiation filter or a value of filtration Manufacturer of the device Date of device manufacture...

  • Page 4: Table Of Contents

    Table of Contents 1.0 Getting Started 1.1 Intended Use 1.2 Unpack, Check, and Register NOMAD Pro 2 System 1.3 Charging the Handsets 2.0 Safety Precautions 2.1 Radiation Safety 2.2 Usage and Duty Cycle 2.3 Cleaning 2.4 Security, Storage, and Transportation 3.0 Setup and Power Check...
  • Page 5 Thank you for choosing the Aribex NOMAD Pro 2 as your X-ray solution! ® At Aribex we value your business and we would like to hear from you because your feedback and suggestions are important to us. If you have comments, please email us: support@aribex.com.

  • Page 6: Getting Started

    1.0 Getting Started 1.1 Intended Use The NOMAD Pro 2 X-ray System is designed to be used for both adult and pediatric patients by trained dentists and dental professionals for producing diagnostic dental X-ray images. 1.2 Unpack, Check, and Register NOMAD Pro 2 System Unwrap individual components from the protective plastic and check for ...

  • Page 7: Charging The Handsets

    NOTE: The handsets (batteries) are partially charged at the factory and normally need not be charged prior to initial use of the NOMAD Pro 2. However, if the system has been in long-term storage prior to initial use, handsets must first be fully charged before attempting to take X-rays.

  • Page 8: Safety Precautions

    • Do not enable the NOMAD Pro 2 until patient and operator are positioned and ready for the exposure, preventing interruption and inadvertent exposure of anyone to X-rays.
  • Page 9 (for more information, see Section 4.0, Operation). • As shown in graphic representations, maximum protection (green area) from backscatter radiation (red area) exists when the NOMAD Pro 2 is positioned near the patient, is perpendicular to the operator (with the patient’s head tilted if needed), and the backscatter shield is fully...
  • Page 10 Comparative Data for Whole Body Exposure (Annual) 50mSv Occupational Dose Limit 5mSv Occupational Dose Limit Requiring Dosimetry 3.65mSv Average Natural Background Radiation 2.19mSv Average Occupational Radiation Exposure for Flight Crews 1.00mSv General Public Dose Limit 0.20-0.70mSv Range of Exposure for Dental Personnel Using Conventional X-rays 0.30mSv Average Exposure Using NOMAD with D-Speed Film 0.12mSv...

  • Page 11: Usage And Duty Cycle

    2.2 Usage and Duty Cycle As a safety feature, the NOMAD Pro 2 will not emit X-rays with insufficient voltage (low battery). The NOMAD Pro 2 is also designed to avoid damage from overheating. The minimum duty cycle rating for maximum exposure (the relationship between duration and frequency of exposures taken during a rolling 60 second period) is 1:60.

  • Page 12: Security, Storage, And Transportation

    2.4 Security, Storage, and Transportation • Do not store the NOMAD Pro 2, handsets, charging cradle, or AC power supply in extreme conditions: below –20°C (–4°F) or above +60°C (+140°F), or beyond 95% relative humidity (non-condensing). The optimal storage location is cool, dry, and away from direct sunlight.

  • Page 13: Setup And Power Check

    Pro 2 (a properly oriented handset should click into place with firm pressure). The clicking sound ensures the locking mechanism has secured the  NOMAD Pro 2 to the handset. To verify this lock, apply slight pressure in the release direction. There are electric currents present at the handset terminals. Protect the...

  • Page 14: Checking For Power

    Five bars is an indication of a fully charged handset. If the battery charge is too low, the NOMAD Pro 2 will not emit an X-ray  and the RECHARGE HANDSET alarm will display. (The RECHARGE HANDSET alarm may also display if the handset is not fully engaged.)

  • Page 15: Operation

    The device shifts into a X-RAYS LOCKED state and the buttons can be released. Repeat the process to unlock the X-ray. The NOMAD Pro 2 should not be operated if it has been dropped or if performance degrades; it should be returned to Aribex for an evaluation.

  • Page 16: Lock / Unlock The X-Ray

    4.3 Lock / Unlock the X-ray The X-ray lock and unlock functionality can be toggled to prevent unauthorized use when the NOMAD Pro 2 is idle or stored. LOCK / UNLOCK is activated by pressing and holding down the Select (...

  • Page 17: Ready The Device

    The illuminated green LED, the message READY on the display panel, and a double tone alert confirm that NOMAD Pro 2 is prepared to fire x-rays. The READY state continues until either an exposure is initiated or timeout occurs...

  • Page 18: Initiating And Completing An X-Ray Exposure

    4.7 Power Off Press and release the Power ( ) button to turn NOMAD Pro 2 off. The NOMAD Pro 2 also automatically shuts off after approximately three minutes of inactivity. The NOMAD Pro 2 display darkens, accompanied by a tone...

  • Page 19: Exposure Techniques

    Avoid touching the patient with the cone or backscatter shield; disposable  plastic coverings can be used to prevent cross-contamination. Determine what NOMAD Pro 2 exposure time settings deliver optimal  results for the type of imaging (digital or film-based) that is used on a regular basis.

  • Page 20: Settings Menu

    4.9 Settings Menu The NOMAD Pro 2 menus allow the operator to customize settings according to individual preferences. To access the Main Menu, press and hold down the Select ( ) button for three seconds. When the Main Menu appears,...
  • Page 21 Menu Item Options The operator can use the Increase ( ) or Decrease ( ) buttons to toggle between YES and NO in response to the menu prompt RESET EXPOSURE TIME TO FACTORY SETTINGS? If YES is selected, the system will confirm the selection by displaying ALL CUSTOM SETTINGS WILL BE ERASED.

  • Page 22: Technique Factor Settings And Adjustments

    4.10 Technique Factor Settings and Adjustments The factory settings in this chart are intended as a reference starting point only and are based upon average preferences and use with the cone perpendicular to the image receptor. Individual results may vary based upon a number of factors including image density preferences, the various imaging sensors or available film speeds and brands, patient size, practitioner techniques, and preferences.

  • Page 23: Handset Replacement And Care

    A RECHARGE HANDSET alarm on the display panel indicates either the need to fully engage the handset or the need for a replacement handset. The NOMAD Pro 2 cannot emit X-rays with a low, depleted battery (insufficient voltage). Follow these steps to clear the RECHARGE HANDSET alarm.

  • Page 24: Nomad Pro 2 Care And Upkeep

    6.1 Alarms and Alerts The visual and audible alarms signal a programmed action designed to prevent harm to operators, patients, and/or the NOMAD Pro 2. The visual/ audible alerts confirm normal conditions or draw the operator’s attention to a required action.
  • Page 25 Condition Visual Audible Function/ Indicator Signal Resolution At the end of the successful exposure X-ray the yellow LED turns Exposure Single tone, for duration off, and the display X-RAYS ON of exposure panel briefly indicates X-RAY COMPLETE Alert and the screen returns to the normal mode.
  • Page 26 Condition Visual Audible Function/ Indicator Signal Resolution If the operator presses the trigger to activate the READY state before the duty cycle time, the device will display the warning message, and a Duty Cyle countdown timer will Exceeded Double tone at the COOLING DOWN be displayed showing start and end of the...
  • Page 27 Troubleshooting HANDSET FAILURE 5 audible tones (6.2.12) or an Aribex Alarm authorized service center. The NOMAD Pro 2 should not be operated if it has been dropped or if performance degrades; it should be returned to Aribex for an evaluation.

  • Page 28: Troubleshooting

    If you encounter results and/or errors in the operation of the NOMAD Pro 2 that are not explained in the previous sections, check the following table on user troubleshooting to determine the need for authorized service. If you have additional questions or require help, contact Aribex: support@aribex.com. Device Symptom Potential Problem...
  • Page 29 6.2.9 There was no determine if the first handset is the likely power to NOMAD Pro 2 handset battery can be problem. control panel. recharged or is spent and must be taken out of service.

  • Page 30: Repair And Maintenance

    It is recommended for the handset to be attached during cleaning of the device. Use a non-acetone based disinfectant wipe or a cloth to wipe the exterior surfaces of the NOMAD Pro 2 and charging cradle. Refrain from using cleaners that leave any sort of residue or sticky build-up on the device surface.
  • Page 31 The NOMAD Pro 2, the handsets, and the charging cradle are NOT designed to be user-serviceable. There are dangerous voltages inside. Do not open the device housing; doing so will void the warranty. Repairs can only be undertaken by trained service personnel. Direct all questions to an authorized distributor.

  • Page 32: Technical Description

    7.0 Technical Description 7.1 Basic Technical Specifications Maximum deviation from fixed factors: ±5% (unless otherwise noted) Total weight: 2.5kg (5.5 lbs.) Environmental Operation Temperature –5°C to +40°C (+23°F to +104°F) Relative humidity 10% to 80%, non-condensing Storage and transportation Temperature –20°C to +60°C (–4°F to +140°F) Relative humidity 95%, non-condensing...

  • Page 33: Wiring Diagram

    Tube current (mA) is sensed across a series connected resistor with an accuracy of ±1% and measured using a digital multimeter, prior to encapsulation; the NOMAD Pro 2 has no provision for external measurement of beam current after final manufacture. Exposure time is measured during the entire exposure, references to 75% rise/fall, using the NERO mAx 8000 X-ray meter.

  • Page 34: X-Ray Tube Specifications And Characteristics

    7.3 X-ray Tube Specifications and Characteristics The VTD70/0.4/12CP is designed for intraoral dental imaging by an X-ray unit and is available for nominal tube voltage with self-rectified or constant potential circuit – manufactured by Kailong. Nominal tube voltage 60kV Nominal focal spot (IEC 60336:1993) 0.4 mm Minimum anode heat content 4300 J...
  • Page 35 NOTE: The X-ray source assembly heating and cooling curves are equivalent to the anode heading curves shown here. Maximum continuous heat dissipation will be made available upon request from Aribex.
  • Page 36 X-ray Source Focal Spot X-ray Beam X-ray Source Focal Spot Reference Axis at 90° to Target/Receptor...

  • Page 37: Emc Data

    RF emissions are very low and are not likely to cause any interference in nearby electronic equipment. The test results show that the NOMAD Pro 2 is suitable for use in all establishments, including domestic establishments and those directly connected to public low-voltage power supply network that supplies buildings used for domestic purposes.
  • Page 38 In Accordance with Test Type Document Document Title Electromagnetic Compatibility, Electrostatic Discharge IEC 61000-4-2:1995, Basic Immunity Standard, Immunity A1:1998, A2:2000 Electrostatic Discharge Immunity Test Electromagnetic Compatibility, Basic Immunity Standard, Radio Frequency Immunity IEC 61000-4-3:2006 Radiated Radio Frequency Electromagnetic Field, Immunity Test Electromagnetic Compatibility, Testing and Measurement Power Frequency Magnetic...
  • Page 39 Immunity Test Summary Minimum Test Level Required Test Level Compliance Specification per EN 60601-1-2 Completed Status IEC 61000-4- Air discharge up to Air discharge up to 2:1995, A1:1998, ±8kV; contact ±8kV; contact A2:2000 – PASS discharge up to discharge up to Electrostatic ±6kV ±6kV...

  • Page 40: Optional Calibration Checks

    7.5 Optional Calibration Checks The NOMAD Pro 2 is factory calibrated and tested prior to release (see your Certificate of Conformance) and there are no adjustment options. A self- diagnostics is completed each time the device is powered up. However, the optional checks listed below may be performed by a qualified technician as desired.
  • Page 41 Aribex may have been informed of the actual uses to which any of such equipment may be put. Aribex, Inc. shall not under any circumstance be liable...
  • Page 44 0473 ISO 13485 / ISO 9001 ertified ompany © Aribex, Inc. 2005, 2013 All Rights Reserved English is the original draft language for this manual. Phone: 801-226-5522 Aribex, Inc. Fax: 801-434-7233 744 South 400 East Email: NOMAD@aribex.com Orem, Utah 84097 http://www.aribex.com...
