MANUFACTURED BY
GETTING STARTED
This quick reference guide is intended to supplement the Operator Manual
and operator training materials located on the NOMAD Operator Training CD.
NOTE: The manual and training materials are also available for
download on the Aribex website @ www.aribex.com.
Unwrap each component from the protective plastic and check for
any noticeable signs of damage. Do not use the device if it shows signs
of damage.
The standard package system includes the following items:
•NOMAD Device with Backscatter Shield attached
•2 Charged Batteries
•Battery Charger (the charger should be appropriate for local
AC line voltage)
•Certificate of Conformance
•Warranty Card
•NOMAD Operator Training CD
Verify that the serial number on the warranty/registration card matches
the X-ray head serial number and the device serial number on the
carrying case.
Please complete the product warranty/registration card and mail it
with proper postage to Aribex today. Completing the card fulfills a
condition of warranty coverage.
Review the Operator Manual and training material
contained on the CD shipped with this device.

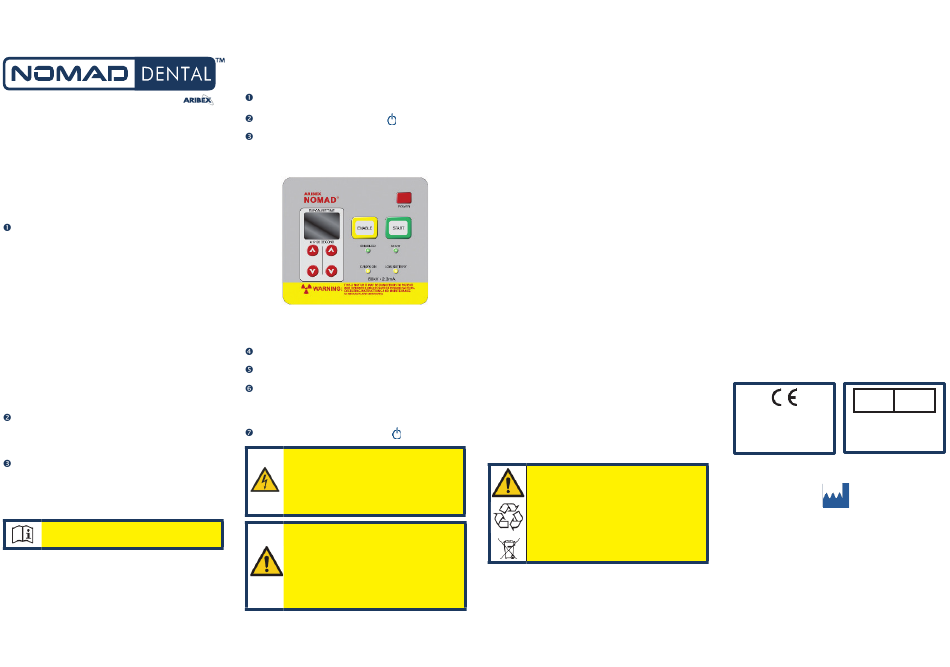

BASIC OPERATION
Attach a fully charged battery (see Battery Care).
™
Turn the power on by pressing the Power ( ) button.
To change exposure settings press the increase or decrease buttons.
(Example, 08 LED display setting = 0.08 seconds; 35 LED display
setting = 0.35 seconds.)
For more on adjusting the time settings see the Operator Manual
contained on the CD.
Press and release Enable to ready the device.
Position the NOMAD relative to the receptor.
To begin the exposure, squeeze the handle trigger (or press and
hold Start) until the audible, signal ends, and green Start and
yellow X-Rays On indicators are off.
Turn off the power by pressing the Power ( ) button.
Do not operate NOMAD or battery charger if equipment was
subjected to moisture.
Do not spray disinfectant or cleaners directly on the NOMAD
or battery charger. Damage to your device or a shock hazard
may result. Consult the Operator Manual on the CD for proper
cleaning instructions.
Do not open the housings. Doing so will void the warranty.
There are no user-serviceable parts inside the NOMAD or
battery charger.
Locate the charging system away from the normal patient
environment.
NOMAD should not be operated if it has been dropped or
performance degrades; it should be returned to Aribex for a
safety check.
BATTERY CARE
The following are important battery care notes:
• Each battery can go through the full (dis)charge cycle approximately
200 times. Routinely change out a discharged battery with fully
charged one, as needed.
• A flashing, yellow Low Battery indicator (control panel) and
intermittent audible signal indicate the need for a freshly charged
battery.
• Charge only between +4°C (+39°F) and +40°C (+104°F).
Recommended charging temperature is +24°C (+75°F).
• A battery can be left indefinitely in the plugged-in charger without
damaging batteries. When the charging indicator stops flashing,
leaving the battery in the charger for 8 hours helps to maintain
optimum battery capacity (equalization).
• Battery charge will diminish during extended inactivity – fully
recharge batteries every 3 months during inactivity.
Never place a low charge battery into long-term storage.
• Do not store batteries in extreme conditions: below –20°C (–4°F)
or above +40°C (+104°F), or beyond 95% relative humidity
(non-condensing). The optimal storage location is cool, dry, and
away from direct sunlight.
• Do not store or carry batteries so that battery terminals can be
damaged or exposed to contact with conductive objects.
• Always unplug the charger from the power supply when it is not
in use. For additional info specifically about the charger, see the
accompanying instruction manual for the battery charger.
Do not attempt to charge a handset with damaged batteries.
Risk of fire or explosion exists if batteries inside the handset
are replaced by unauthorized service personnel; do not use
batteries from other sources.
Properly dispose of spent or damaged handsets; return to
Aribex or an authorized distributor for replacement and
recycling. Do not place in municipal waste stream.
LIMITED WARRANTY
COVERAGE. Aribex warrants its medical and dental x-ray equipment to be free from any
defects in material or workmanship for a period of one (1) year from the date of purchase.
Aribex also warrants any accessories purchased from Aribex to be free from any defects in
material or workmanship for the period of one (1) year from the date of purchase.
The liability of Aribex is limited to repair or replacement of any parts that Aribex or its
authorized resellers determine to be defective. Contact Aribex for a Return Material
Authorization (RMA) number and shipping instructions. Parts proving defective shall be
repaired or replaced free of charge (labor and domestic shipping included), if defective
equipment is returned freight collect to Aribex (USA) or the location of the authorized service
center. Equipment repaired or replaced under warranty shall continue to be warranted for the
balance of the original warranty term. All warranty claims must be made not later than ten
(10) business days following the expiration of the applicable warranty period.
LIMITATIONS OF COVERAGE. This warranty does not apply to equipment that is or has
been abused, misused, or altered (including opening enclosure or tampering), improperly
maintained, subjected to use beyond rated conditions, or damaged as a result of any
carelessness or accidents. This warranty does not cover ordinary wear and tear or maintenance.
LIMITATIONS OF LIABILITY. Aribex makes no other warranty, either expressed or implied, with
respect to any equipment purchased from Aribex, including without limitation any implied
warranties of merchantability or fitness for a particular purpose, whether or not Aribex may
have been informed of the actual uses to which any of such equipment may be put. Aribex shall
not under any circumstance be liable for incidental, indirect, consequential, punitive or
exemplary damages, including without limitation damages for delay or lost profits, and in
no event shall liability of Aribex arising from the purchase, sale or use of the equipment,
or breach of any warranty made above, exceed in the aggregate the purchase price paid
therefore.
EC
REP
0413
MT Promedt Consulting
ISO 13485 / ISO 9001
Altenhofstr. 80
C
C
66386 St. Ingbert
ERTIFIED
OMPANY
Germany
Aribex
Phone: 866-340-5522
11727 Fruehauf Dr
Fax: 800-659-4299
Charlotte, NC 28273
Email: support@aribex.com
U. S. A.
http://www.aribex.com
U.S. patents 7,224,769 and 7,496,178
United States and international patents pending.
English is the original draft language for this manual.
© Aribex 2017
All Rights Reserved
0.850.0319 Rev A 12/1/2017
