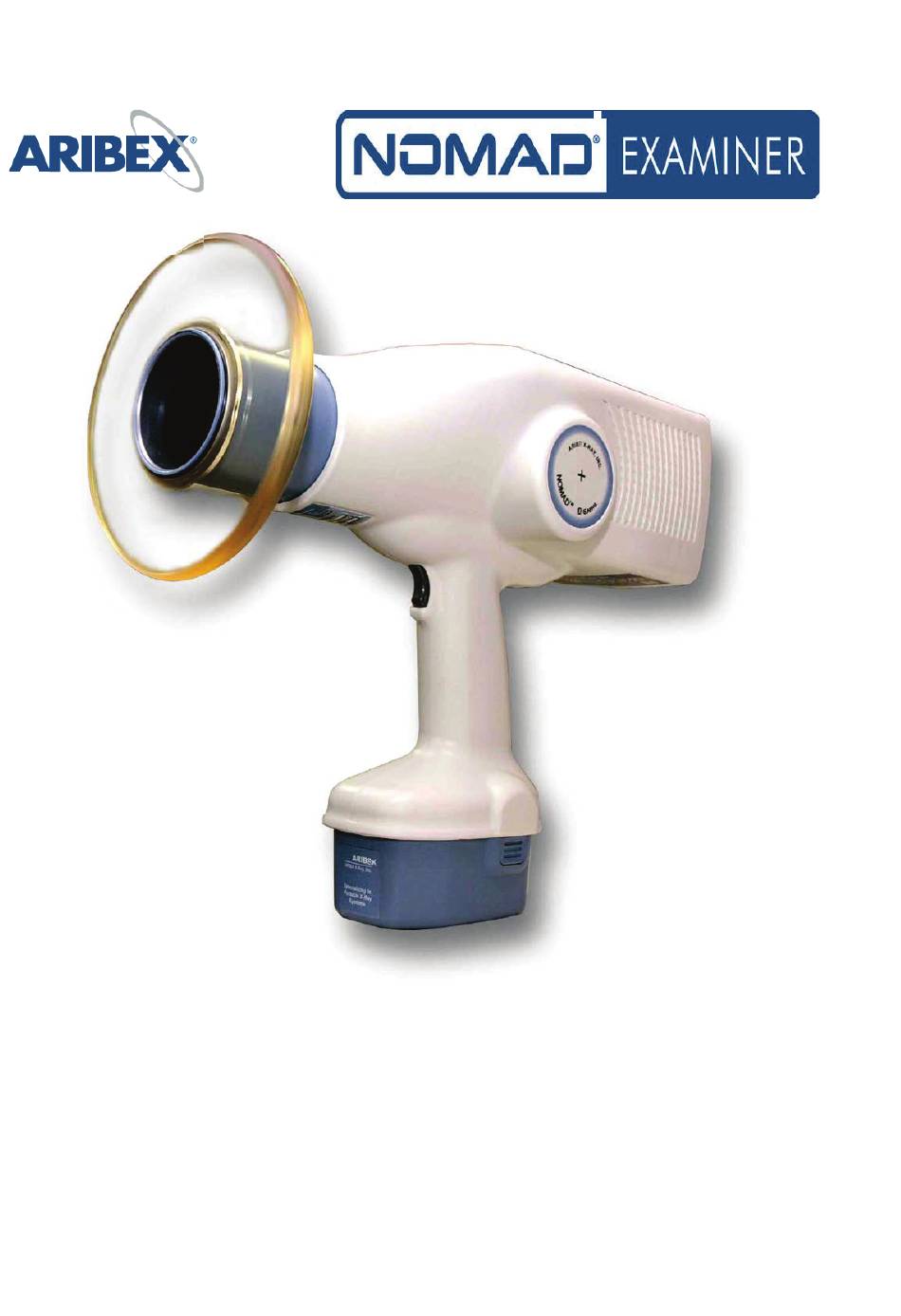

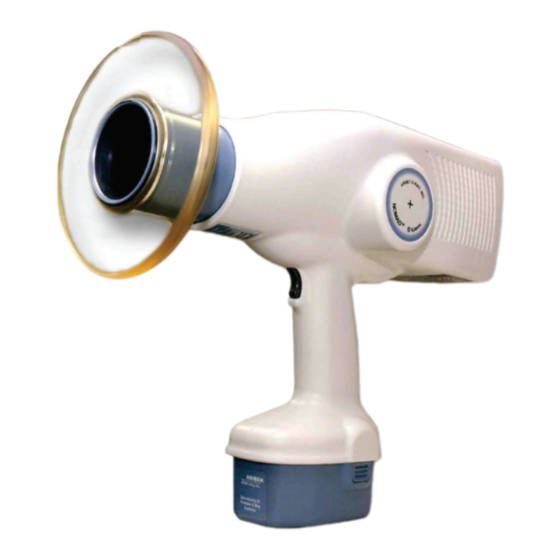

- Page 1 Portable X-ray System for Small Area Radiographic Imaging USER MANUAL...
- Page 2 MANUAL and reviewed the accompanying materials. See the Certificate of Conformance accompanying your device. A Radiation Safety Abbreviated Report is submitted and on file in order to register NOMAD eXaminer in accordance with DHHS Manufacturer Reporting Requirements, 21 CFR 1002.12.
-
Page 3: Table Of Contents
USER MANUAL NOMAD ® eXaminer Table of Contents Getting Started ..........................1 Intended Use ........................1 Unpack, Check, and Register NOMAD ................1 Charging the Battery ......................2 Safety Precautions ........................... 3 Radiation Safety ........................ 3 Usage ..........................5 Cleaning ..........................6 Security, Storage, and Transportation ................ - Page 4 Thank you for choosing the Aribex NOMAD as your x-ray solution! At Aribex we value your business and we would like to hear from you, because your feedback or suggestions are important to us. If you have comments, please email us: NOMAD@aribex.com...
-
Page 5: Getting Started
1.0 Getting Started 1.1 Intended Use The NOMAD eXaminer X-ray System is intended for general, non-medical use – materials imaging, industrial inspection, pathology/forensics, and veterinary care that requires small-area radiographic imaging. The use of NOMAD eXaminer on live humans is expressly prohibited by regulation. -
Page 6: Charging The Battery
NOMAD Complete the product Warranty/Registration card and mail it with proper postage to Aribex today. Completing the card fulfills a condition of warranty coverage (see the inside back cover of this manual) and enables you to receive valuable product news and updates. -
Page 7: Safety Precautions
ANUAL 2.0 Safety Precautions 2.1 Radiation Safety This x-ray unit may be dangerous to operator and bystander unless safe exposure factors and operating instructions are observed. Operators must follow all guidelines dictated by applicable occupational safety regulations and in- house radiation protection program, especially in regard to operators who are pregnant or expect to become pregnant. - Page 8 NOMAD As shown in graphic representations, maximum protection (green area) from backscatter radiation (red area) exists when the NOMAD is positioned near the subject, is perpendicular to the operator, and the backscatter shield is fully extended toward the subject. An exposure can be terminated for any reason abruptly releasing...
-
Page 9: Usage
ANUAL Comparative Data for Hand and Extremity Exposure (Annual) 500mSv Occupational Dose Limit 50mSv Occupational Dose Limit Requiring Dosimetry 0.43mSv Average Exposure Using NOMAD with D-Speed Film 0.22mSv Average Exposure Using NOMAD with F-Speed Film or Digital Sensor X-Ray Source Backscatter 1) Standards for Protection against Radiation, Fixed Beam... -
Page 10: Cleaning
NOMAD There are no user serviceable parts inside the NOMAD. Do not open the device housing. Doing so will void the warranty. NOMAD should not be used in environments where flammable cleaning agents are present. Locate the battery charger out of the way, but in a convenient place (see section 5.0, Battery Replacement). -
Page 11: Setup And Check
ANUAL For long-term storage, it is recommended to fully recharge batteries every 3 months. 3.0 Setup and Check 3.1 The Backscatter Shield In addition to the lead-lined cone, the backscatter shield provides additional protection to you, the operator, and features an adjustable position to permit exposures made at various angles. Ideally, the shield should remain fully extended to the outer edge of the cone, especially if the subject to be imaged is immediately in front of the cone (see 2.1,... -
Page 12: Attaching A Charged Battery
NOMAD 3.2 Attaching a Charged Battery Properly orient and carefully insert the newly charged battery into the base of the NOMAD handle. A properly oriented battery should click into place without force (forcing the battery into position may damage the battery and/or the NOMAD). -
Page 13: Optional Checks
ANUAL For continued use, insert the secondary, replacement battery (which should be charged in advance). See section 5.0, Battery Replacement, for more information. NOTE: 3.4 Optional Checks The NOMAD is factory calibrated and tested prior to release (see your Certificate of Conformance), so there are no adjustment options. -
Page 14: Operation
NOMAD 4.0 Operation 4.1 Powering Up POWER Press and release button to turn NOMAD on (after approximately 2.5 half minutes of inactivity, NOMAD shuts off automatically). When the power is turned on a single, long audible signal and an example illuminated numeric (LED) display indicate the unit has power. -
Page 15: Positioning Subject And Enabling The Device
ANUAL 4.4 Positioning Subject and Enabling the Device Properly position the subject and yourself before enabling NOMAD (to prevent accidental exposure). ENABLE Press and release to ready the device; be sure to re-enable NOMAD if any subsequent changes are made to the time setting prior to exposure. -
Page 16: Battery Replacement
Do not attempt to charge damaged batteries. An authorized distributor, Aribex, and your local recycling center will accept spent or damaged batteries. Order new 14.4V batteries from Aribex or your authorized distributor. Do not use batteries from other sources, which invalidates the warranty. -
Page 17: Keeping Nomad Up And Running
ANUAL 6.0 Keeping NOMAD Up and Running 6.1 Alarms and Alerts The visual/audible alarm signals a programmed action designed to prevent harm to operator, bystanders, and/or NOMAD. The visual/audible alerts confirm normal conditions or draw the operator’s attention to a required action. Condition Visual Indicator Audible Signal... - Page 18 NOMAD Condition Visual Indicator Audible Signal Function / Resolution Invalid Input Invalid input (for example, Error triggering prior to enabling) Two short beeps activates alert, which then ends automatically Alert Valid Input For numeric LED display, Valid when panel button is time setting increments or Single short beep pressed/released...
-
Page 19: Troubleshooting
ANUAL 6.2 Troubleshooting If you encounter results and/or errors in the operation of NOMAD that are not explained in the previous sections, check the following table on user troubleshooting to determine the need for authorized service. Device Symptom Potential Problem Corrective Action Increase the exposure time setting;... - Page 20 NOMAD will require authorized were emitted and shutdown service; see section 6.3, Repair occurred, a different problem and Maintenance. exists (see section 6.1, Alarms and Alerts). If you have additional questions or require help contact: support@aribex.com...
-
Page 21: Repair And Maintenance
Be sure to include the RMA number on the package you are returning. Products without a RMA number cannot be serviced or given credit consideration. Aribex will not assume responsibility for shipping damages; however, it will help you file a claim with the freight carrier. Please see warranty information at the end of this manual. -
Page 22: Technical Description
NOMAD 7.0 Technical Description 7.1 Basic Technical Specifications Maximum deviation from fixed factors ±5% (unless otherwise noted) Total weight Environmental Operation Temperature –5°C to +40°C (+23°F to +104°F) +4°C to +40°C (+39°F to +104°F) charging Relative humidity 10% to 80%, non-condensing Storage and transportation Temperature –20°C to +60°C (–4°F to +140°F) NOMAD... -
Page 23: Functional Diagram
Victoreen. Tube current (mA) is sensed across a series connected resistor with an accuracy of ±1% and measured using a digital multimeter, prior to encapsulation; NOMAD eXaminer has no provision for external measurement of beam current after final manufacture. Exposure time is measured from the moment x-rays are detected until they are no longer detected (which means "zero-... -
Page 24: X-Ray Tube Specifications And Characteristics
NOMAD 7.3 X-ray Tube Specifications and Characteristics The VTD70/0.4/12CP is also designed for intraoral dental imaging by an x-ray unit, and is available for nominal tube voltage with self- rectified or constant potential circuit – manufactured by Kailong; distributed in the U.S.A. by Vista Technology. Nominal tube voltage 50–70kV Nominal focal spot (IEC 60336:1993) - Page 25 ANUAL Cathode Emission / Filament Characteristics 50kV 60kV 70kV 25kHz 3.0A Rating Chart 50kV 60kV 70kV 25kHz 10 s Thermal Characteristics Chart 4500 --4300J 100W 4000 3500 3000 anode heating curves 2500 2000 1500 anode cooling curve 1000 0500 300 s...
-
Page 26: Emc Data
11696 Sorrento Valley Rd, Suite F San Diego, CA 92121-1024 The NOMAD eXaminer X-ray System is intended for use in the electromagnetic environment as specified. The following tables describe the tests performed and the status of the testing. The NOMAD uses RF energy only for its internal function. - Page 27 ANUAL Emissions Test Summary Specification Frequency Range Compliance Status EN 55011 (1991), Group 1, Class "B" Conducted N/A for a battery powered 0.15 MHz – 30.00 MHz Emissions device EN 55011 (1991), Group 1, Class "B" Radiated Emissions 30.0 MHz – 1000 MHz PASS N/A for a battery powered EN 55014 (1993) –...
-
Page 28: Optional Calibration Checks
Test Detector and capture the resulting data. Compare the result with the factory release parameters (indicated in the chart below). For results outside these parameters, discontinue use and contact your dealer/distributor or Aribex. Timer Settings and Corresponding Acceptable Ranges Test... -
Page 29: Limited Warranty
(1) year from the date of purchase. The liability of Aribex, Inc. is limited to repair or replacement of any parts that Aribex or its authorized resellers determine to be defective. Contact Aribex for a Return Material Authorization (RMA) number and shipping instructions. - Page 30 ISO 13485 / ISO 9001 ERTIFIED OMPANY © Aribex, Inc. 2005, 2011 All Rights Reserved English is the original draft language for this manual. Aribex, Inc. Phone: 801-226-5522 11727 Fruehauf Drive Fax: 801-434-7233 Email: NOMAD@aribex.com Charlotte, NC 28273 http://www.aribex.com U.S.A.
