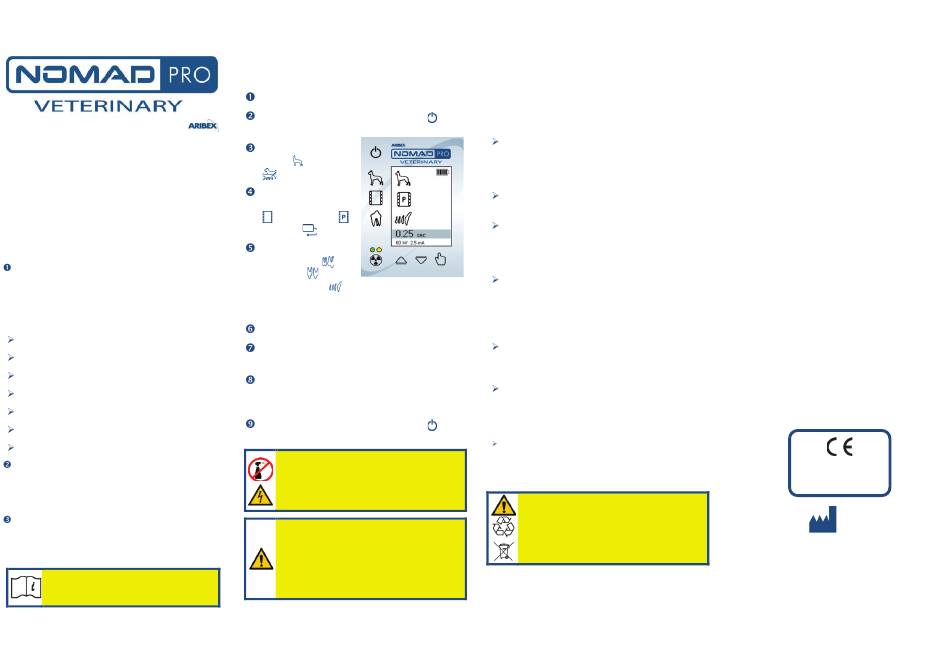

ARIBEX Nomad Pro Veterinary Quick Reference Manual

M
ANUFACTURED BY
G S
ETTING TARTED
This quick reference guide is intended to supplement the
Operator Manual
and operator training materials located
NOMAD Pro Veterinary Operator Manual
on the
NOTE: The manual and training materials are also
available for download on the Aribex website at
www.aribex.com or they can be ordered in hard copy
format: support@aribex.com
Unwrap each component from the protective plastic
and check for any noticeable signs of damage – do not
use the device if it shows signs of damage.
The standard package system includes the following
items.

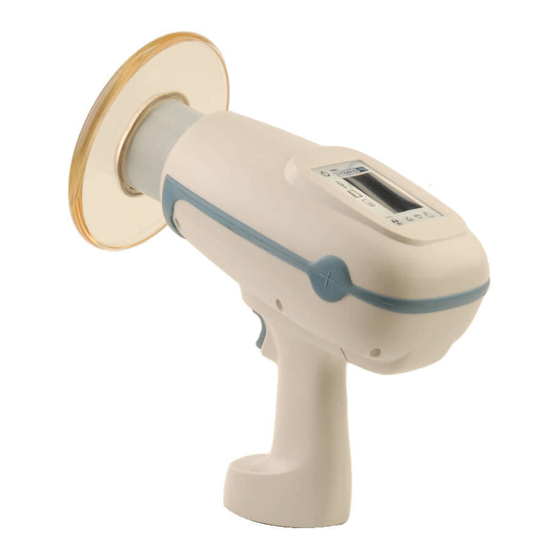

NOMAD Pro Veterinary X-ray Head,
2 Handsets,
Battery Charger Cradle,
AC to DC Power Supply,
Certificate of Conformance,
Warranty Card, and
NOMAD Pro Veterinary Operator Manual CD.
Verify that the serial number on the Warranty /
Registration card matches the X-ray head serial
number and the device serial number on the
carrying case.
Please complete the product Warranty / Registration
card and mail it with proper postage to Aribex today.
Completing the card fulfills a condition of warranty
coverage.
Review the Operator Manual and training material
contained on the CD shipped with this device.
TM
B O
ASIC PERATION
Attach a fully charged handset.
Turn the power on by pressing the
button.
Patient Size
Select
(Larger or Smaller
).
Select
CD.
Receptor
type (Film
, Phosphor Plate ,
or Sensor ).
Tooth
Select the
Group
(Molars ,
Pre-Molars , or
Incisors/Canines ). For more on adjusting the
Operator Manual
time settings see the
the CD.
Position the NOMAD Pro relative to the receptor.
Pull and release the trigger once to put the NOMAD
READY
Pro into the state.
Pull and hold the trigger (a second time) until the
X-RAY COMPLETE
is displayed and the audible
tone indicates the exposure is done.
Turn off the power by pressing the
button.
Do not operate NOMAD Pro or the handset, charger cradle,
or AC power supply if equipment was subjected to moisture.
Do not spray disinfectant or cleaners directly on the NOMAD
Pro, handset, charger cradle or AC power supply. Damage to
your device or a shock hazard may result. Consult the
Operator Manual on the CD for proper cleaning instructions.
Do not open the housings. Doing so will void the warranty.
There are no user-serviceable parts inside the NOMAD Pro,
handset, charger cradle or AC power supply.
Locate the charging system away from the normal patient
environment.
NOMAD Pro should not be operated if it has been dropped or
performance degrades; it should be returned to Aribex for a
safety check.
H
ANDSET
C
Power
( )
The following are important handset care notes:
Each handset
discharge/charge cycle approximately 300 times.
Routinely change out a discharged handset with
fully charged one as needed.
Remove the handset from the charging cradle once
it is fully charged.
Battery charge will diminish during extended
fully recharge handsets every 3
inactivity –
months during inactivity.
charge battery into long-term storage.
Do not store handsets in extreme conditions: below
–20°C (–4°F) or above +60°C (+140°F), or beyond
contained on
95% relative humidity (non-condensing). The
optimal storage location is cool, dry, and away from
direct sunlight.
Do not store or carry handsets so that conductive
objects can contact exposed battery contact
springs.
When the charging cradle senses a bad handset
battery, the indicator lights will illuminate red rather
than green. In this case, the batteries are
Power
( )
inoperable and must be serviced.
Handset communications and mechanical integrity
are checked by pulling the handset trigger when it
is on the charging cradle – good communication
exists when the indicator lights illuminate orange.
Do not attempt to charge a handset with damaged batteries.
Risk of fire or explosion exists if batteries inside the handset
are replaced by unauthorized service personnel; do not use
batteries from other sources.
Properly dispose of spent or damaged handset; return to
Aribex or an authorized distributor for replacement and
recycling. Do not place in municipal waste stream.
(B ) L
ATTERY IMITED
COVERAGE. Aribex, Inc. warrants its medical and dental x-ray
ARE
equipment to be free from any defects in material or workmanship for a
period of one (1) year from the date of purchase. Aribex, Inc. also
warrants any accessories purchased from Aribex to be free from any
defects in material or workmanship for the period of one (1) year from the
date of purchase.
can go through the full
The liability of Aribex, Inc. is limited to repair or replacement of any parts
that Aribex or its authorized resellers determine to be defective. Contact
Aribex for a Return Material Authorization (RMA) number and shipping
instructions. Parts proving defective shall be repaired or replaced free of
charge (labor and domestic shipping included), if defective equipment is
returned freight collect to Aribex (Utah, USA) or the location of the
authorized service center. Equipment repaired or replaced under
warranty shall continue to be warranted for the balance of the original
warranty term. All warranty claims must be made not later than ten (10)
business days following the expiration of the applicable warranty period.
Never place a low
LIMITATIONS OF COVERAGE. This warranty does not apply to
equipment that is or has been abused, misused, or altered (including
opening enclosure or tampering), improperly maintained, subjected to use
beyond rated conditions, or damaged as a result of any carelessness or
accidents. This warranty does not cover ordinary wear and tear or
maintenance.
LIMITATIONS OF LIABILITY. Aribex, Inc. makes no other warranty,
either expressed or implied, with respect to any equipment purchased
from Aribex, including without limitation any implied warranties of
merchantability or fitness for a particular purpose, whether or not Aribex
may have been informed of the actual uses to which any of such
equipment may be put. Aribex, Inc. shall not under any circumstance be
liable for incidental, indirect, consequential, punitive or exemplary
damages, including without limitation damages for delay or lost profits,
and in no event shall liability of Aribex arising from the purchase, sale or
use of the equipment, or breach of any warranty made above, exceed in
the aggregate the purchase price paid therefore.
Aribex, Inc.
11727, Fruehauf
Drive Charlotte,
NC 28273 U.S.A.
United States and international patents pending
English is the original draft language for this manual.
