complete the tuning operation. One plug of the control cable is plugged into the socket marked
"CON" on the rear panel, and the other plug is plugged into the "TUNER" socket of the
transmitter. Special reminder, please make sure the transmitter and tuner are turned off when
plugging in this cable.

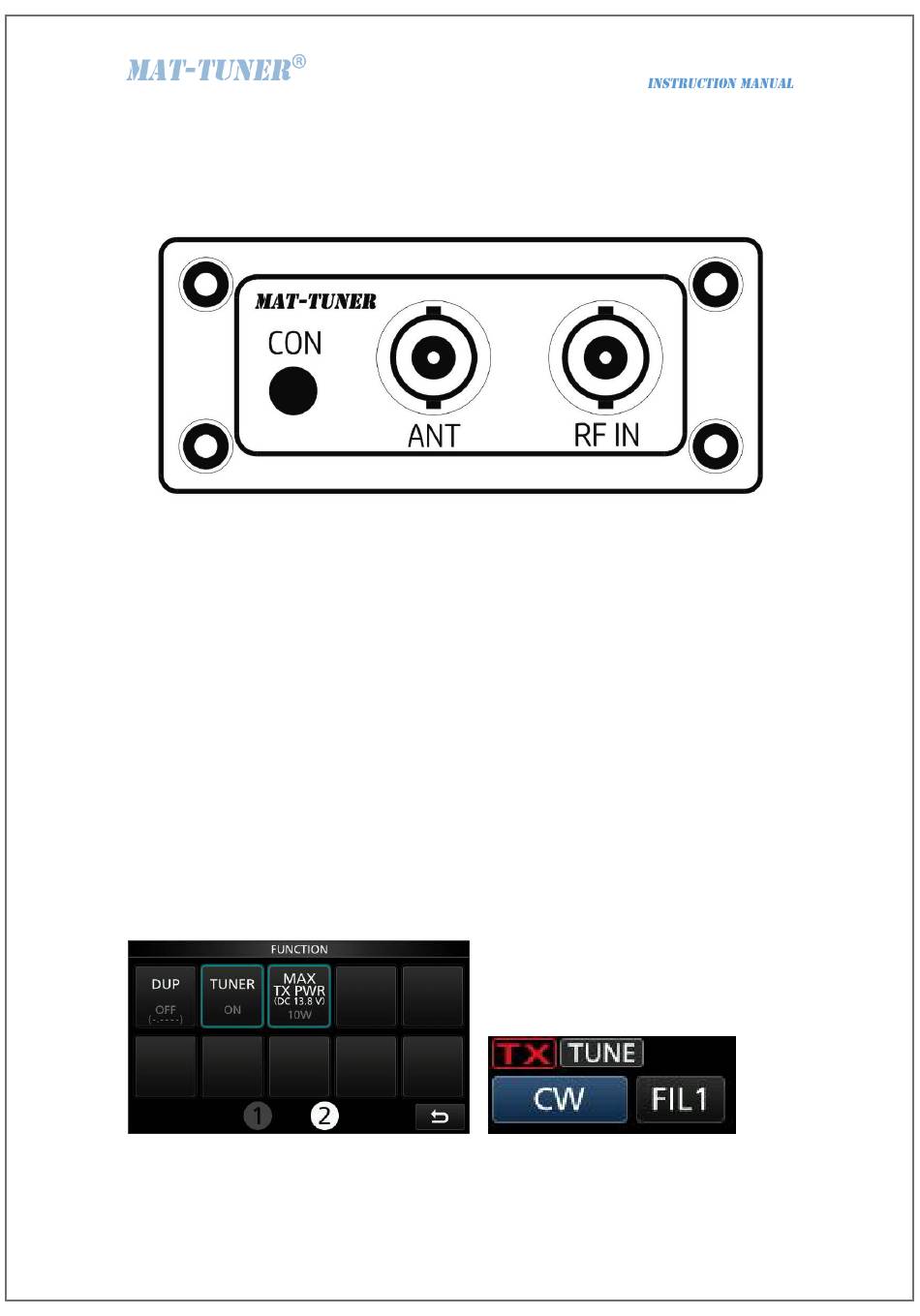

BNC RF socket: There are two BNC RF sockets on the rear panel, they are " ANT " and " RF IN ".
" ANT " is connected to the antenna. " RF IN " is connected to the ANT socket of the transmitter
via a coaxial cable. The coaxial cable mAT-705-RC1 connecting the tuner " RF IN " and the
transmitter ANT is not a standard accessory, it is optional.

INSTALLATION

The installation of the tuner is very simple. Please make sure that the transmitter and tuner are
turned off before installation.
1. Connect the " CON " of the tuner and the "TUNER socket of the transmitter with a control
cable.
2. Connect the " RF IN " of the tuner and the ANT socket of the transmitter with a radio frequency
cable.
3. Connect the coaxial cable connecting the antenna to the socket marked "ANT" on the tuner.
The installation is complete.
TUNING OPERATION (IN TWO WAYS)
Method 1:
Quickly touch [TUNER] to switch the tuner to "BYPASS" state. Touch for more than 1 second to
start tuning and set the tuner to "ONLINE". When the tuner is tuning, in addition to the
"ACT/TUN" indicator on the front panel lights up in red, the red text "TUNE" will flash on the
Enter the function menu of the transmitter, as
shown in the figure, the [TUNER] option
turns white to indicate that it is available.
