SMART-AVI SM-MST-4D Quick Start Manual

TECHNICAL SPECIFICATIONS
VIDEO
Fornat DisplayPort1.2a
Input Interface (8) DisplayPort
Output Interface (4) HDMI
Input Resolution Up to 4K (3840 x 2160 @ 60 Hz)
Output Resolution Up to 4K (3840 x 2160 @30 Hz)
DDC 5 volts p-p (TTL)
Input Equalization Automatic
Input Cable Length Up to 20 ft
Output Cable Length Up to 20 ft
USB
Input Interface (4) USB Type B
Output Interface (2) USB 1.1 Type A for KM Devices
Emulation USB 1.1 and USB 2.0 Compatible
AUDIO
Audio Input (4) 3.5mm stereo audio
Audio Output (1) 3.5mm stereo audio
CONTROL
Front Panel Front panel SELECT buttons
OTHER
External 100-240 VAC/ 12VDC2A
Power
@ 24W
Dimensions 8.8" W x 2.63" H x 6.69" D
Weight 3.85 lbs
NIAP PP 3.0, UL, CE,
Approvals
ROHS Compliant
Operating Temp. 32 to +104°F (0 to +40°C)
Storage Temp. -4 to 140°F (-20 to +60°C)
Humidity Up to 80% (no condensation)
WHAT'S IN THE BOX
PART NO. QTY DESCRIPTION
4 port KVM MST
SM-MST-4D 1
with Quad 4K HDMI Out
12-VDC, 2-A power adapter with
PS12VDC2A 1
center-pin positive polarity.
1 Quick Start Guide
NOTICE
The information contained in this document
is subject to change without notice. iPGARD
makes no warranty of any kind with regard
to this material, including but not limited to,
implied warranties of merchantability and
fitness for a particular purpose. iPGARD
will not be liable for errors contained
herein, or for incidental or consequential
damages in connection with the furnishing,
performance, or use of this material. No
part of this document may be photocopied,
reproduced, or translated into another
language without the prior written consent
from iPGARD, Inc.
20170518
DESIGNED
AND MADE
IN THE USA
Toll Free: (888)-994-7427
Phone: (702) 800-0005
Fax: (702)-441-5590
WWW.iPGARD.COM

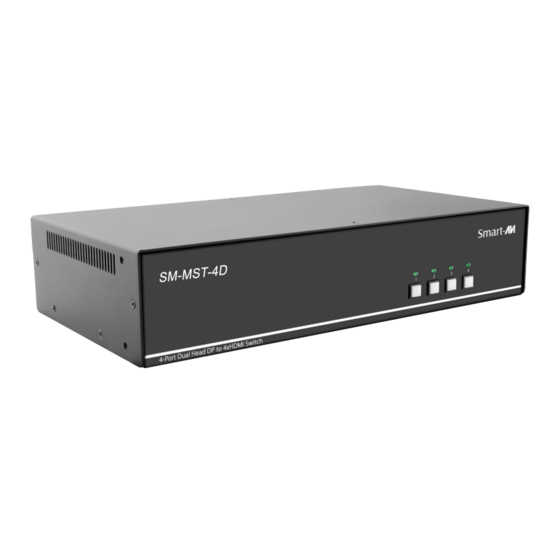

4-Port Dual Head DP to 4 x HDMI Switch
SM-MST-4D
4 Port KVM DP MST
with Quad 4K HDMI Out
Quick Start Guide
A full manual can be downloaded from
www.ipgard.com/documentation/
