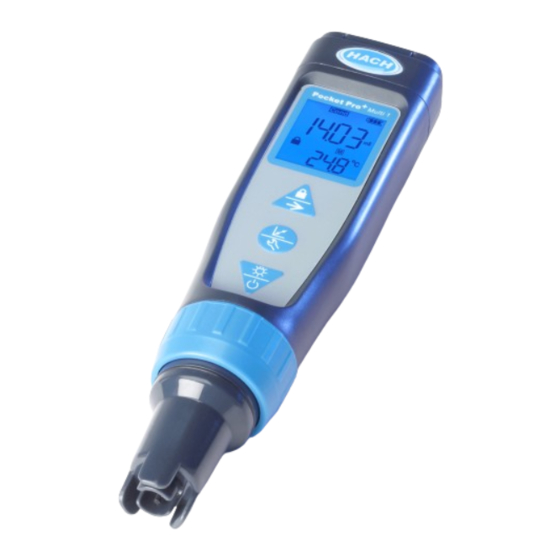

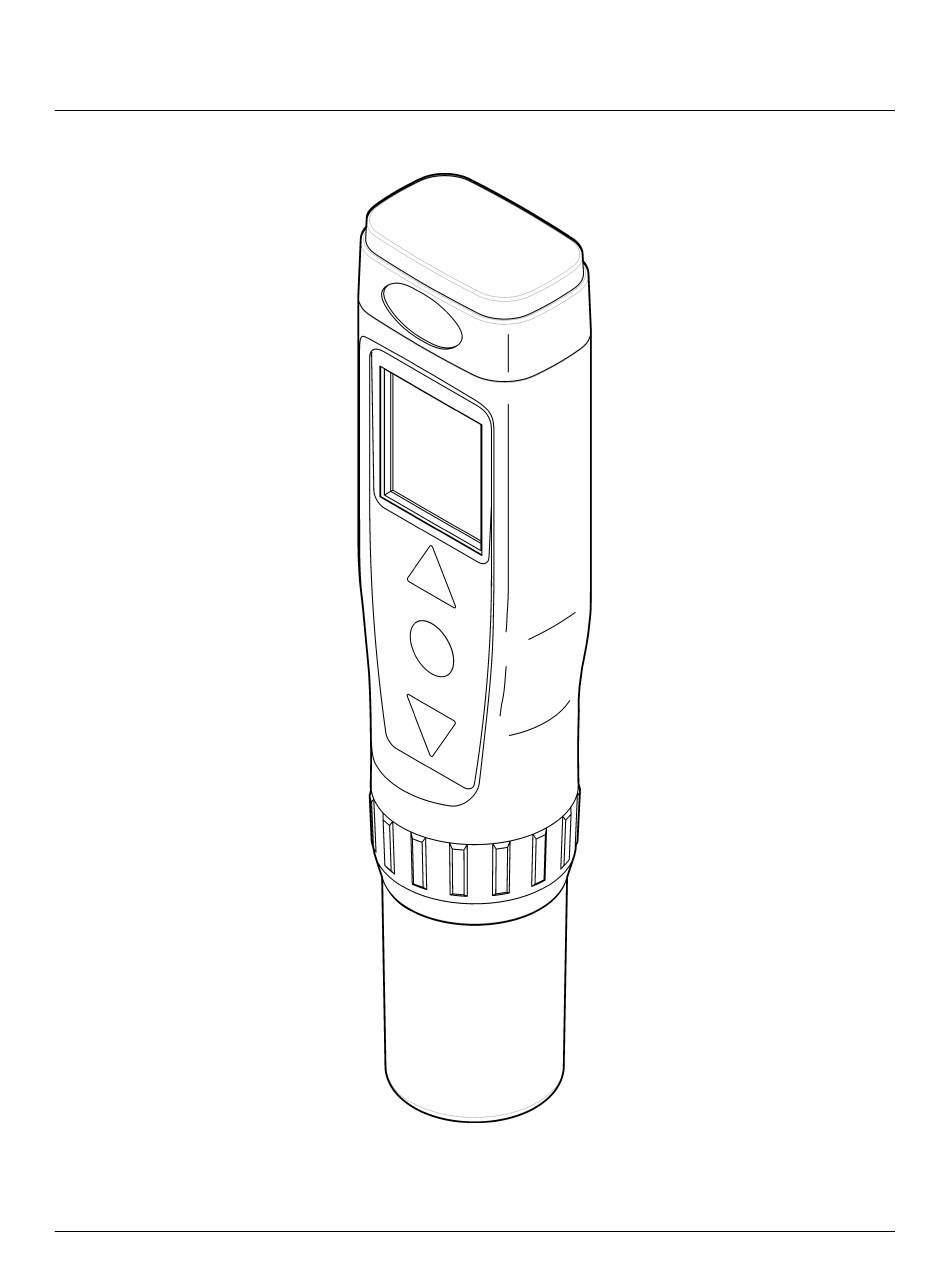

- Page 1 User Manual DOC022.53.80398 ™ Pocket Pro + Multi 1...
-
Page 2: Specifications
Specifications Specifications are subject to change without notice. Specification Details Dimensions (W x D x H) 37 x 30 x 170 mm (1.45 x 1.18 x 6.69 in.) Enclosure rating IP67 Weight 135 g (0.297 lb) with batteries Power requirements (internal) AAA alkaline batteries (4x) Battery life 450 hours (200 hours with backlight on) -
Page 3: Safety Information
Safety information N O T I C E The manufacturer is not responsible for any damages due to misapplication or misuse of this product including, without limitation, direct, incidental and consequential damages, and disclaims such damages to the full extent permitted under applicable law. The user is solely responsible to identify critical application risks and install appropriate mechanisms to protect processes during a possible equipment malfunction. -
Page 4: Product Overview
FCC Part 15, Class "A" Limits Supporting test records reside with the manufacturer. The device complies with Part 15 of the FCC Rules. Operation is subject to the following conditions: 1. The equipment may not cause harmful interference. 2. The equipment must accept any interference received, including interference that may cause undesired operation. -
Page 5: Product Components
Product components Make sure that all components have been received. Refer to Figure 2. If any items are missing or damaged, contact the manufacturer or a sales representative immediately. Figure 2 Product components 1 Pocket Pro+ tester 3 Lanyard ™ 2 AAA alkaline batteries (4x) 4 SINGLET (1413 µS/cm) -
Page 6: Keypad Description
User interface and navigation Display description Figure 4 shows the measurements, calibration standard information and indicator icons shown on the display. Table 1 gives descriptions of the icons. Figure 4 Display overview 1 Calibration icon 4 Battery icon 7 Calibration standards expected 2 Lock icon 5 Parameter value 8 Temperature... - Page 7 Figure 5 Keypad overview 1 Power/Backlight key 2 Calibration/Settings key 3 Lock/Parameter key Table 2 Key functions Description Push and hold to set the power to on or off. Push to set the backlight to on or off. After 1 minute of no activity, the backlight switches off. Push to start a calibration of the parameter shown at the top of the display.
-
Page 8: Auto Calibration
Auto calibration Items to collect: One, two or three auto-recognition calibration standards 1. Set the power to on. 2. Remove the cap from the sensor. 3. Push and hold until Conductivity shows. 4. Push to go to calibration mode. The auto-recognition standard(s) to measure shows on the bottom line. Note: If "C1"... -
Page 9: Advanced Operation
8. To keep the measured value on the display when the sensor is removed from the sample, push . Note: The lock icon shows on the display when the measurement is stable. 9. To measure another sample, do steps 3–8. 10. -
Page 10: Troubleshooting
1. Soak the sensor in the applicable cleaning agent. Refer to Table 2. Rinse or soak the sensor in deionized water for 1 minute. Table 4 Cleaning agents Contaminant Cleaning agent Time Grease, oils and fats Electrode cleaning solution 2 hours maximum Mineral buildup 10% hydrochloric acid (HCl) solution 5 minutes maximum... - Page 11 Table 6 Accessories Description Quantity Item no. SINGLET, 147 µS/cm 20/pkg 2771320 SINGLET, 12.88 ms/cm 20/pkg 2771520 Electrode cleaning solution 500 mL 2965249 Hydrochloric Acid (HCl) 2.5 L 13406 Hydrochloric Acid (HCl) 500 mL 13449...
- Page 12 Tel. +49 (0) 2 11 52 88-320 SWITZERLAND Fax (970) 669-2932 Fax +49 (0) 2 11 52 88-210 Tel. +41 22 594 6400 orders@hach.com info@hach-lange.de Fax +41 22 594 6499 www.hach.com www.hach-lange.de © Hach Company/Hach Lange GmbH, 2013. All rights reserved. 09/2013, Edition 1...
