Installation Instructions-

Key Slot Mounting
Step-1

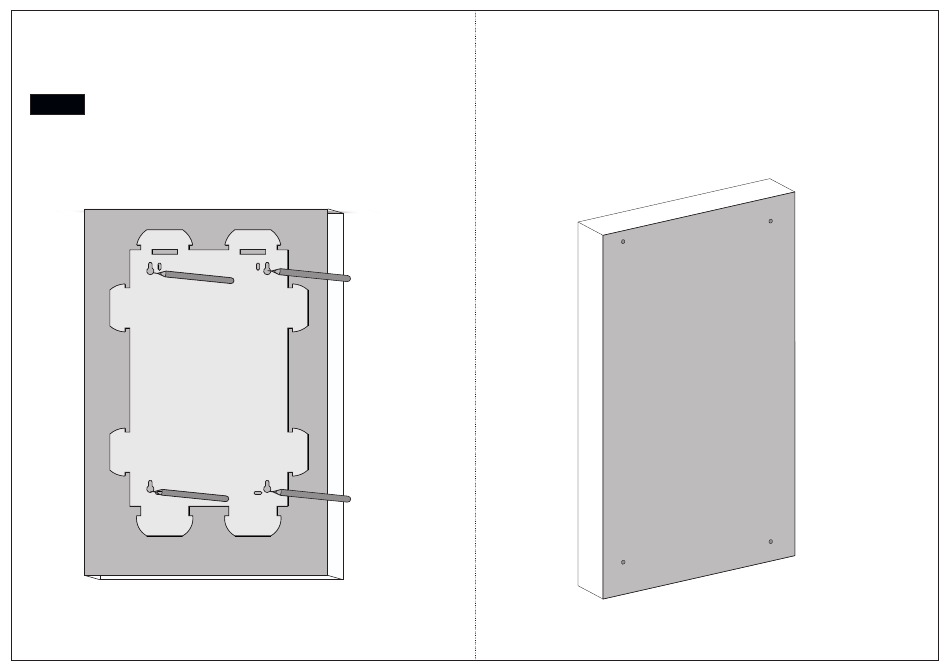

Place the mounting template against the wall where Installation is to be done.
Trace four screw holes using mounting template with pen/pencil as shown in
the figure 9 and figure 10 below.
Figure 10
Figure 9
13
14
