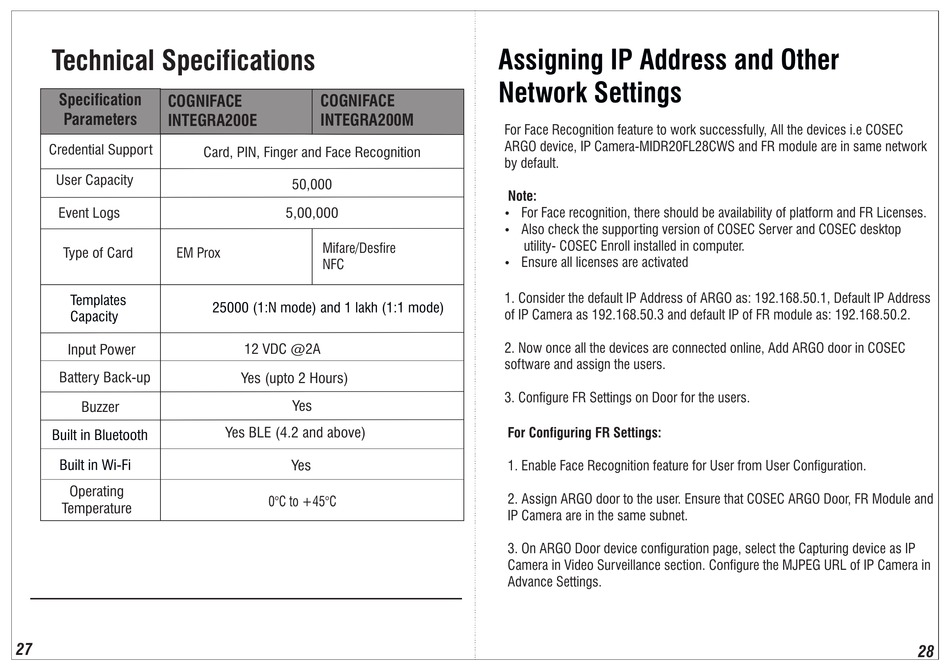

Technical Specifications

Specification
COGNIFACE
Parameters
INTEGRA200E
Credential Support
User Capacity
Event Logs
Type of Card
EM Prox
Templates
Capacity
Input Power
Battery Back-up
Buzzer
Built in Bluetooth
Built in Wi-Fi
Operating
Temperature
27
COGNIFACE
INTEGRA200M
Card, PIN, Finger and Face Recognition
50,000
5,00,000
Mifare/Desfire
NFC
25000 (1:N mode) and 1 lakh (1:1 mode)
12 VDC @2A
Yes (upto 2 Hours)
Yes
Yes BLE (4.2 and above)
Yes
0°C to +45°C
Assigning IP Address and Other
Network Settings
For Face Recognition feature to work successfully, All the devices i.e COSEC
ARGO device, IP Camera-MIDR20FL28CWS and FR module are in same network
by default.
Note:
For Face recognition, there should be availability of platform and FR Licenses.
Ÿ
Also check the supporting version of COSEC Server and COSEC desktop
Ÿ
utility- COSEC Enroll installed in computer.
Ensure all licenses are activated
Ÿ
1. Consider the default IP Address of ARGO as: 192.168.50.1, Default IP Address
of IP Camera as 192.168.
50.
3 and default IP of FR module as: 192.168.50.2.
2. Now once all the devices are connected online, Add ARGO door in COSEC
software and assign the users.
3. Configure FR Settings on Door for the users.
For Configuring FR Settings:
1. Enable Face Recognition feature for User from User Configuration.
2. Assign ARGO door to the user. Ensure that COSEC ARGO Door, FR Module and
IP Camera are in the same subnet.
3. On ARGO Door device configuration page, select the Capturing device as IP
Camera in Video Surveillance section. Configure the MJPEG URL of IP Camera in
Advance Settings.
28
