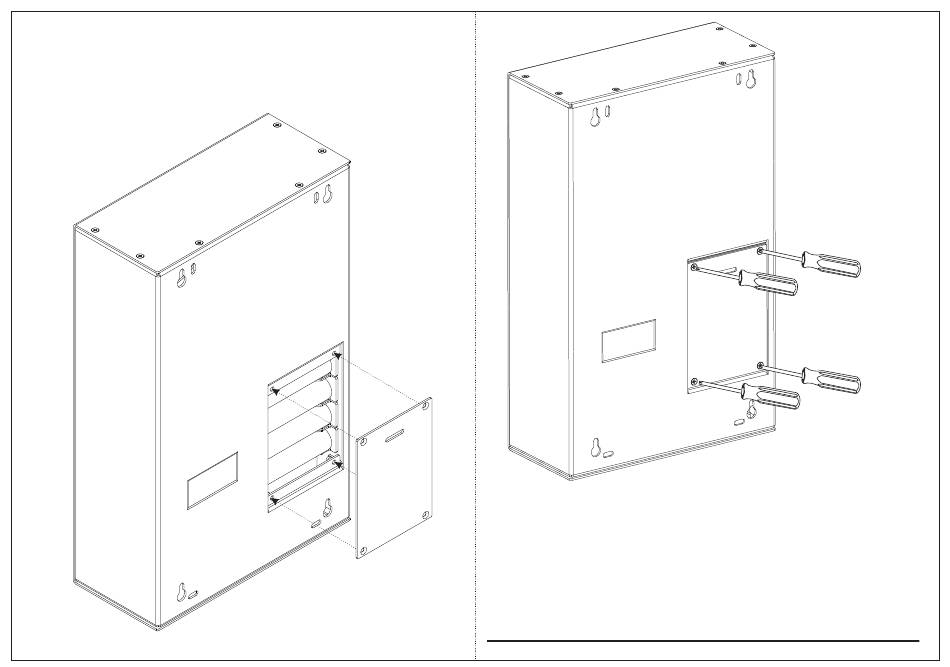

Close the lid of the battery compartment as shown in figure 7 and tighten those
four screws back into their position with the help of screw driver as shown in
figure 8.
In case of power cut, this will provide battery back-up for minimum 2 hours.
11
Figure 7
Wall Mounting
Select a location. It must be a flat surface such as wall. Place the COGNIFACE
INTEGRA200 at specified height from the ground. There are two possible types of Wall
mounting:
1. Key Slot Mounting
2. Through Slot Mounting
Note: Key slot mounting is recommended due to less complexity.
Figure 8
12
