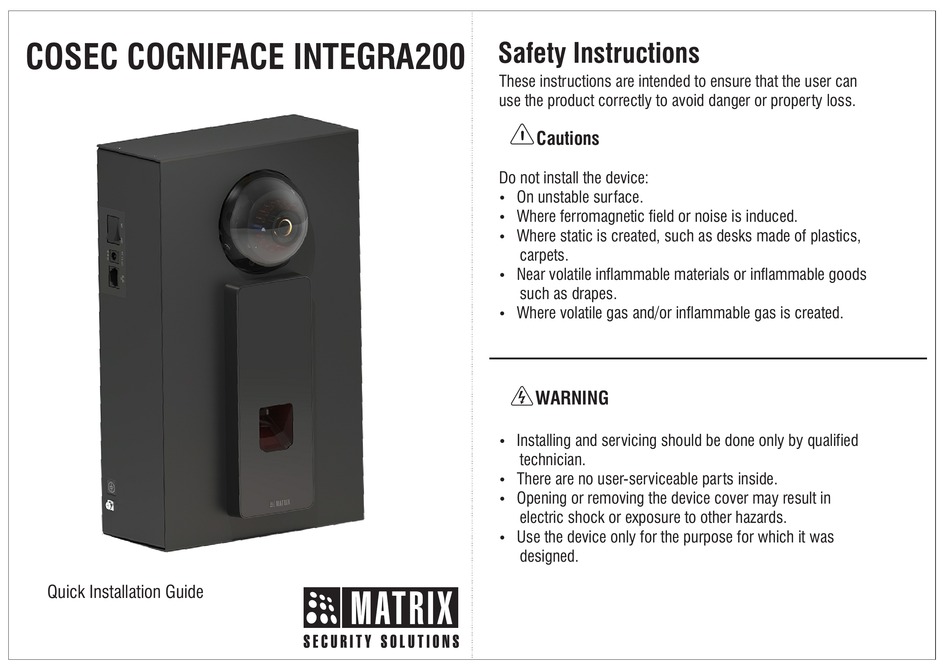

COSEC COGNIFACE INTEGRA200
Quick Installation Guide
Safety Instructions
These instructions are intended to ensure that the user can
use the product correctly to avoid danger or property loss.
Cautions
Do not install the device:
On unstable surface.
Ÿ
Where ferromagnetic field or noise is induced.
Ÿ
Where static is created, such as desks made of plastics,
Ÿ
carpets.
Near volatile inflammable materials or inflammable goods
Ÿ
such as drapes.
Where volatile gas and/or inflammable gas is created.
Ÿ
WARNING
Installing and servicing should be done only by qualified
Ÿ
technician.
There are no user-serviceable parts inside.
Ÿ
Opening or removing the device cover may result in
Ÿ
electric shock or exposure to other hazards.
Use the device only for the purpose for which it was
Ÿ
designed.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the COSEC COGNIFACE INTEGRA200 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Matrix COSEC COGNIFACE INTEGRA200

  • Page 1 COSEC COGNIFACE INTEGRA200 Safety Instructions These instructions are intended to ensure that the user can use the product correctly to avoid danger or property loss. Cautions Do not install the device: On unstable surface. Ÿ Where ferromagnetic field or noise is induced.
  • Page 2: Table Of Contents

    Please read this guide first for correct installation and retain it for future reference. The information in this guide is prevailing at the time of publication. However, Matrix Comsec reserves the right to make changes in product design and specifications without prior notice.
  • Page 3 Figure 3 COSEC Device - ARGO The Matrix ARGO device, is engineered with high-end Wireless terminals for Time & Attendance. This door have Graphic display screen with touch pad, a Finger Sensor and Card Sensing area (Refer figure 4). Thus making it best solution for providing Face recognition feature when it is integrated with IP Camera.
  • Page 4: What Your Package Contains

    Variants 5. Do not expose the device to extreme weather condition. The COSEC COGNIFACE INTEGRA200 have 2 variants depending on type Preparing for Installation of ARGO device embedded. They are: Before Wall mounting COSEC COGNIFACE INTEGRA200, follow the Ÿ...
  • Page 5 Remove the lid of battery compartment by unscrewing four screws with the help After opening the battery compartment, place four battery cells in the space of screw driver. Keep those screws aside carefully because they will be required to given as shown in figure 6. fix the lid of battery compartment back into its position once the battery cells are inserted.
  • Page 6 Close the lid of the battery compartment as shown in figure 7 and tighten those four screws back into their position with the help of screw driver as shown in figure 8. In case of power cut, this will provide battery back-up for minimum 2 hours. Figure 8 Wall Mounting Select a location.
  • Page 7: Installation Instructions

    Installation Instructions- Key Slot Mounting Step-1 Place the mounting template against the wall where Installation is to be done. Trace four screw holes using mounting template with pen/pencil as shown in the figure 9 and figure 10 below. Figure 10 Figure 9...
  • Page 8 Step-2 Step-3 Drill four screw holes(A,B,C,D) along the traced markings with the help of power Fix the supplied screw grips into the A, B, C and D screw holes as shown in the drill as shown in figure 11 below. figure 12.
  • Page 9 Step-4 Insert screws into screw holes A, B, C and D having screw grips as shown in the figure 13 and figure 14. Figure 14 Figure 13...
  • Page 10 Step-5 Align Key hole slots of COSEC COGNIFACE INTEGRA200 with the screws A, B, C and D on the wall and slightly slide it downwards as shown in figure 15 and figure 16. Figure 16 Figure 15...
  • Page 11 Step-4 After inserting screw grips, open Six screws(1-6) which are on top and Six screws (7-12) which are on bottom of COSEC COGNIFACE INTEGRA200 with the help of screw driver as shown in the figure 17. After opening the screws, keep them aside carefully as they will be required at the end of through slot mounting.
  • Page 12 Step-5 Step-6 Upon opening those 12 screws, front enclosure of COGNIFACE INTEGRA200 Fix four screws in through slots of bottom enclosure. Tighten screw 1 in screw with ARGO door attached will be separated from the bottom enclosure having hole A, screw 2 in screw hole B, screw 3 in screw hole C and screw 4 in screw mounting plate as shown in figure 18.
  • Page 13 Step-7 After properly tightening the screws, close the enclosure box by fixing top enclosure back into its position as shown in figure 20. Before closing it remember to plug-in DC jack and power cable of ARGO device correctly back into its position.
  • Page 14: Technical Specifications

    Assigning IP Address and Other Technical Specifications Network Settings Specification COGNIFACE COGNIFACE Parameters INTEGRA200M INTEGRA200E For Face Recognition feature to work successfully, All the devices i.e COSEC ARGO device, IP Camera-MIDR20FL28CWS and FR module are in same network Credential Support Card, PIN, Finger and Face Recognition by default.
  • Page 15: Disposal Of Product After End-Of-Life

    At the end of product life cycle; batteries, soldered boards, metal components and plastic components must be disposed through recyclers. If you are unable to dispose-off the products or unable to locate e-waste recyclers, you may return the products to Matrix Return Material Authorization (RMA) department. MATRIX COMSEC...
