Memmert BASIC Service Instructions Manual page 24

• Pull out working chamber seal (see Section 21)
• Remove fixation of pipe clip
• Expose pipe clip by pressing against the chamber inner walls
• Take working chamber out of the housing cage towards the back
• After removing the working chamber, remove foil from inlet air duct
• Dismantle inlet air duct and heating sheets by releasing the nuts, and change the heating according
to the heating diagram
Working
chamber
Heating sheets
• Arrange the heating elements accurately – it is essential to note the length of the heater ends from
the diagram!
• Secure the newly fitted heating coil with aluminium adhesive tape
(supplied with the new heating elements)
SERVICE - UIS

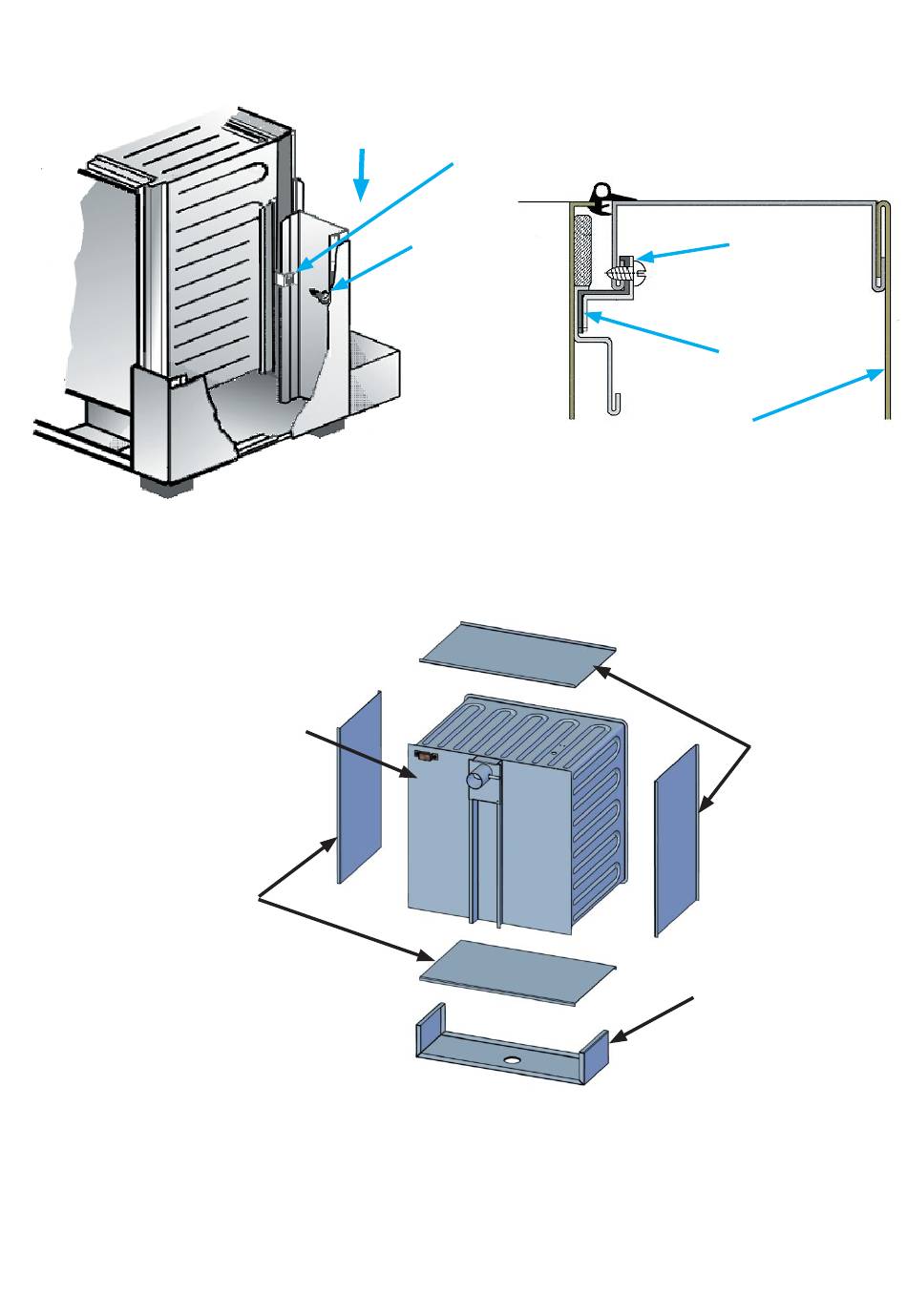

View from above X
Fixation of pipe clip
Screw
page 24
View from above X
Fixation of pipe clip
Pipe clip
Housing side panel
Heating sheets
Air inlet duct
