20. Replacing the door seal

• Dismantle the closure cover (see Section 19.3)
• Raise the radiation shield and remove the old seal.
• (on Model 600-800 release the screws on the radiation shield)
• Cut the new door seal at the ends according to the old seal and slide it on the radiation shield.
• Fit the radiation shield and press it down.
• (On Model 600-800 fit the radiation shield (left with contact strip) and screw it down.)
Screw
Closure cover

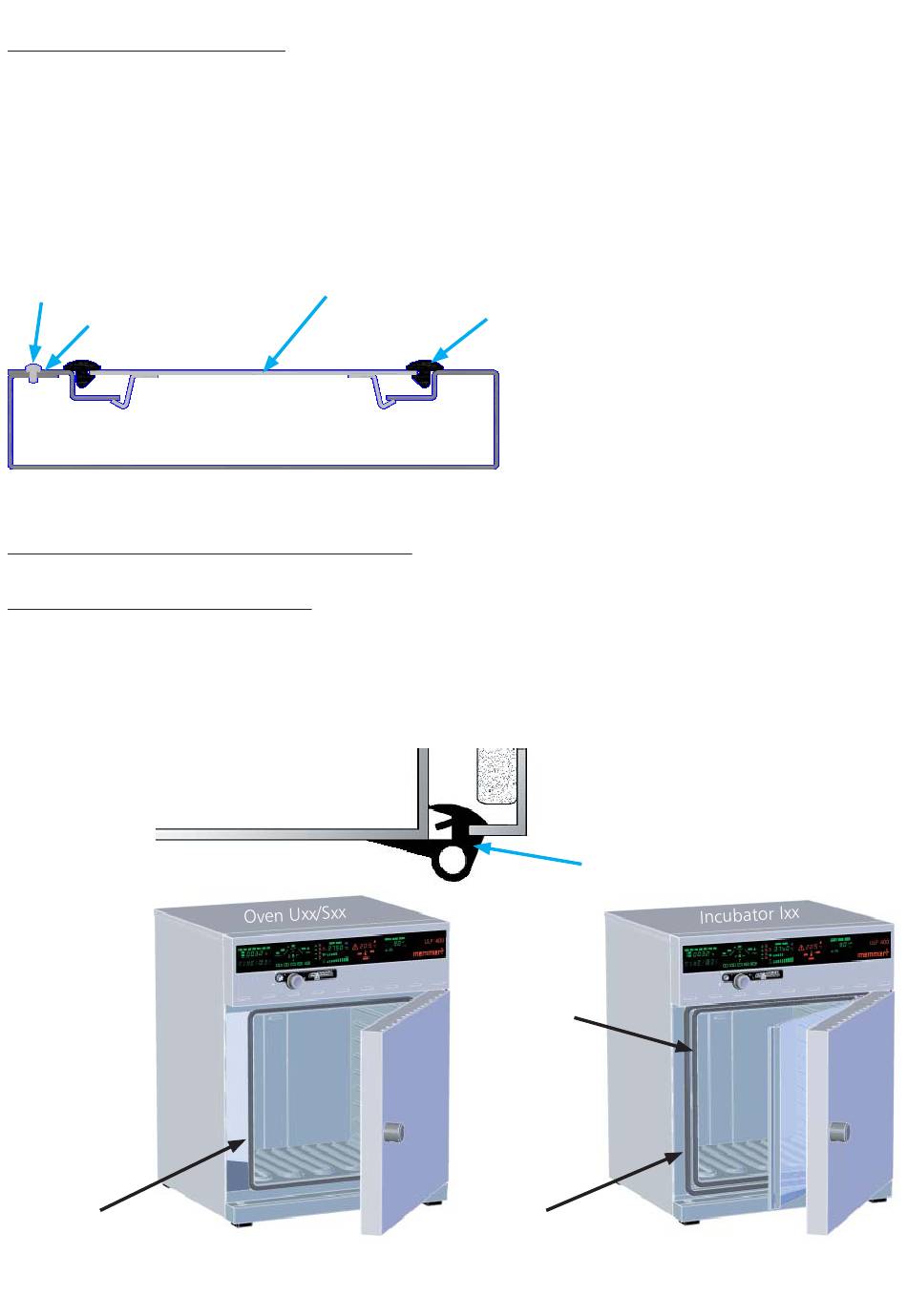

21. Changing the working chamber seal

Incubators Ixx have two seals
• After opening the door the seals can be pulled out and the new seal inserted.
• The pre-cut length of the seal should be pushed into the interspace without tension and can be
shortened a little if necessary.
Working chamber seal
SERVICE - UIS
Radiation shield
page 22
Seal cross-section
Seal cross-section
Seal for
inner door
Working chamber seal
