sigmadue microPAC MP-01 User Manual
User Manual
M.U. microPAC MP-01-2/09.07
Cod. J30 - 478 - 1AMP01 E

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S2 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ascon S2 Series

Summary of Contents for ascon S2 Series

  • Page 1 sigmadue microPAC MP-01 User Manual User Manual M.U. microPAC MP-01-2/09.07 Cod. J30 - 478 - 1AMP01 E...
  • Page 2 ASCON reserves the right to change such information without notice. ASCON makes no warranty of any kind, expressed or implied, with regard to the documentation contained in this book. ASCON shall not be liable for any incidental and consequential damages in connection with, or arising out of the use of this book.

  • Page 3: Table Of Contents

    INDEX Prerequisites ..........Using this manual Current Documentation on the Internet viii...
  • Page 4 Chapter 8 Ascon Function Blocks Libraries ..... . . AsconACLib ..........
  • Page 5 Index (continued) Appendix A Communication Ports Configuration ..... Configuring the optional serial communications ports ... . . A-1-1 Configuring the X0 Port .
  • Page 6 Index (continued)

  • Page 7: Prerequisites

    Prerequisites The products described in this manual should be installed, operated and maintained only by qualified application programmers and software engineers who are familiar with EN 61131-3 concepts of PLC programming, automation safety topics, and applicable national standards. Using this manual Specifications within the text of this manual are given in the International System of Units (SI), with non SI equivalents in parentheses.

  • Page 8: Current Documentation On The Internet

    Current Documentation on the Internet Make sure you are always working with the latest version of this document. ASCON spa reserves the right to make changes to its products in the name of technological advancement. New manual revisions, when published, and can be found online at: http://www.ascon.it...

  • Page 9: Hardware Description

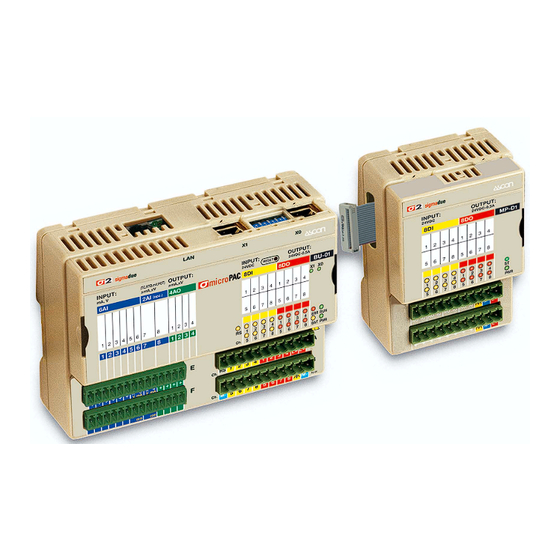

    Hardware description The system described in this User Manual is mainly composed of three main components: • Ascon microPAC MP-01 with 6 + 2 optional analogue inputs, up sigmadue to 4 analogue outputs, 8 digital inputs and 8 digital outputs (ready to work with OpenPCS EN61131-3 compliant programming system);...
