ascon KX6 Engineering Manual

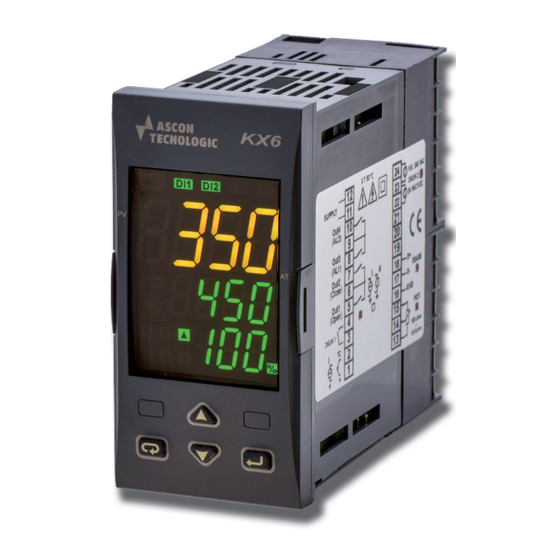

KX6
CONTROLLER WITH
SERVOMOTOR DRIVE OUTPUT
Engineering Manual
Code : ISTR-MKX6-ENG00 - Vr. 0.0 (ENG)
Ascon Tecnologic S.r.l.
Viale Indipendenza 56, 27029 Vigevano (PV) - ITALY
Tel.: +39 0381 69871/FAX: +39 0381 698730
www.ascontecnologic.com
e-mail: info@ascontecnologic.com

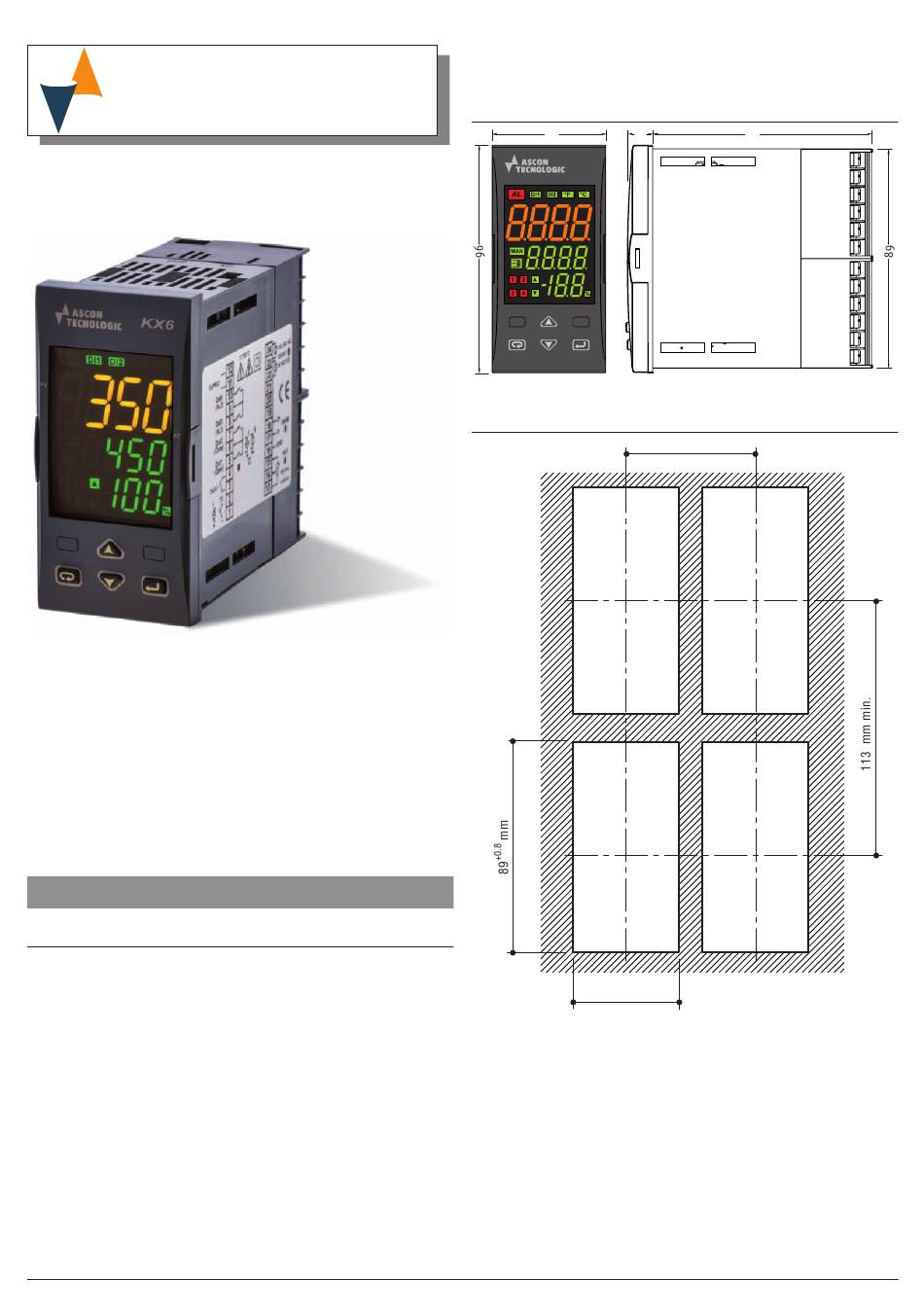

1 OUTLINE DIMENSIONS (mm)
1.1

Mounting requirements

This instrument is intended for permanent installation, for
indoor use only, in an electrical panel which encloses the
rear housing, exposed terminals and wiring on the back.
Select a mounting location having the following characteristics:
1. It should be easily accessible;
2. There is minimum vibrations and no impact;
3. There are no corrosive gases;
4. There are no water or other fluids (i.e. condensation);
5. The ambient temperature is in accordance with the
operative temperature (0... 50°C);
6. The relative humidity is in accordance with the instrument
specifications (20... 85%);
The instrument can be mounted on panel with a maximum
thickness of 15 mm.
Ascon Tecnologic - KX6 - ENGINEERING MANUAL - PAG. 1
When the maximum front protection (IP65) is desired, the
optional gasket must be mounted.
1.2

Dimensions

48 11
1.3

Panel cutout

+0.6
45 mm
89
65 mm min.
