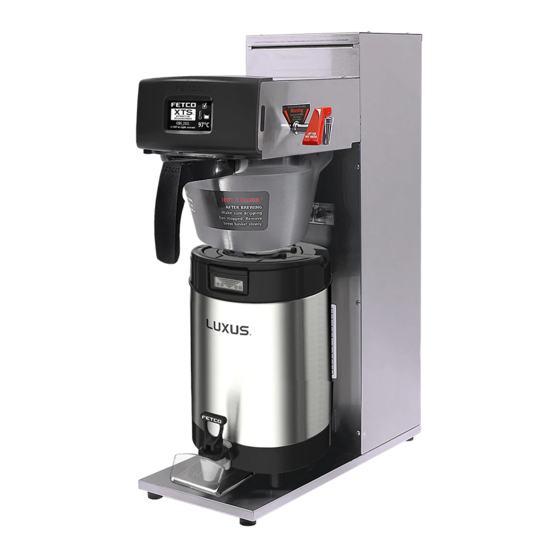

FETCO Coffee Brewer
для России: Модернизированная электронная автоматическая самовара
Description & Features .................................................. 3
Operational Description ................................................. 4
Basic Screens ................................................................ 4
How to calibrate the flow rate ...................................... 10
CONTACT INFORMATION
FETCO®
FOOD EQUIPMENT TECHNOLOGIES COMPANY
600 ROSE ROAD
LAKE ZURICH • IL • 60047-0429 • USA
INTERNET: www.fetco.com
©2017-2018 FOOD EQUIPMENT TECHNOLOGIES COMPANY
User's Guide and Operator Instructions
CBS-2111XTS
:

Table of Contents

P171 FETCO CBS-2111 Coffee Brewer
Extractor Touch Screen Models
Error Codes .................................................................. 14
Operator Training.......................................................... 15
Drawings and Wiring DiagramsParts............................ 18
PHONE: (800) 338-2699 (US & CANADA)
(847) 719-3000
FAX: (847) 719-3001
EMAIL: sales@fetco.com
techsupport@fetco.com
PATENTS: WWW.fetco.com/patents
P168
fetco.com
REV:000
MARCH 2018
