Elf™ Four Slot Dock (4SD)
Read this manual carefully before performing any
type of connection from the terminal to a host PC
using the Elf Four Slot Dock.
The user is responsible for any damages caused
NOTE by incorrect use of the equipment or by
inobservance of the indication supplied in this
manual.

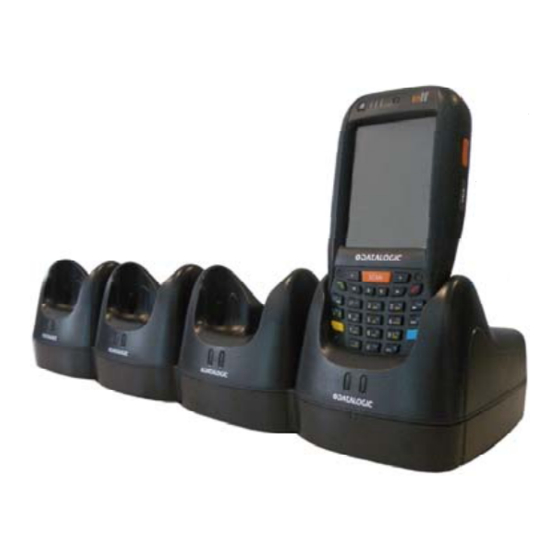

The Elf Four Slot Dock paired with an Elf mobile computer builds
a reading system for the collection, decoding and transmission of
barcode data.
The Elf Four Slot Dock can charge both Elf's and spare batteries
at the same time. The spare batteries can be charged by
inserting them into the slots at the back of the cradle.
The Elf Four Slot Dock comes in two different models, the
Charger (94A151134) and the Ethernet (94A151132). The
Ethernet model also provides Ethernet connection for data
transfer via local area networks.
A
B
C
D
Figure 1 – Elf Four Slot Dock
Key:
∗
A) Link LED for Ethernet Port 1,2,3,4
B) Battery charger LED for Slot 1,2,3,4
C) Power supply connector
D) Ethernet Port 1 (with integrated Link and Speed LEDs)
E) Ethernet Port 2 (with integrated Link and Speed LEDs)**
F) Power on LED
G)
822000960
∗
Used in the Ethernet Four Slot Dock only
∗∗
Available in the Ethernet Four Slot Dock only

MOBILE COMPUTER INSERTION/ REMOVAL

For correct insertion into the cradle, insert the mobile computer
from the top of the cradle and push it down until the clip of the
cradle clicks
To remove the mobile computer from the cradle, simply pull it
upwards while holding the cradle firmly down.
.
Figure 2 - Mobile Computer Insertion

Power Supply

F
Each 4SD requires a power supply to be connected to mobile
computers. We recommend the power supply already included in
the box.
E
Figure 3 - Power Supply Polarity
∗∗

LED INDICATORS

Power LED Status Indicator (F)
Color
Green
Battery Charging LED Status Indicators (B)
Color
Off
Red
Green
Red Blinking

USING THE SPARE BATTERY CHARGER

Correctly insert the battery pack of the Elf into the slot and simply
press it into the slot until the battery latch is automatically closed;
charging starts automatically.
-
To remove the battery, release the latch on the battery pack.
+
Status
Cradle powered
Status
Battery absent
Battery charge in progress
Charge completed
Error
Figure 4 - Spare Battery Insertion
Figure 5 - Spare Battery Removal
