Datalogic Skorpio Quick Start Manual

Datalogic Skorpio™ Serial/Modem Cradle
The Datalogic Skorpio™ Serial/Modem Cradle is a battery charger and also functions as a serial
communication interface between the host computer (RS232) and the RS232 contacts on the Datalogic
Skorpio™ mobile computer.
E

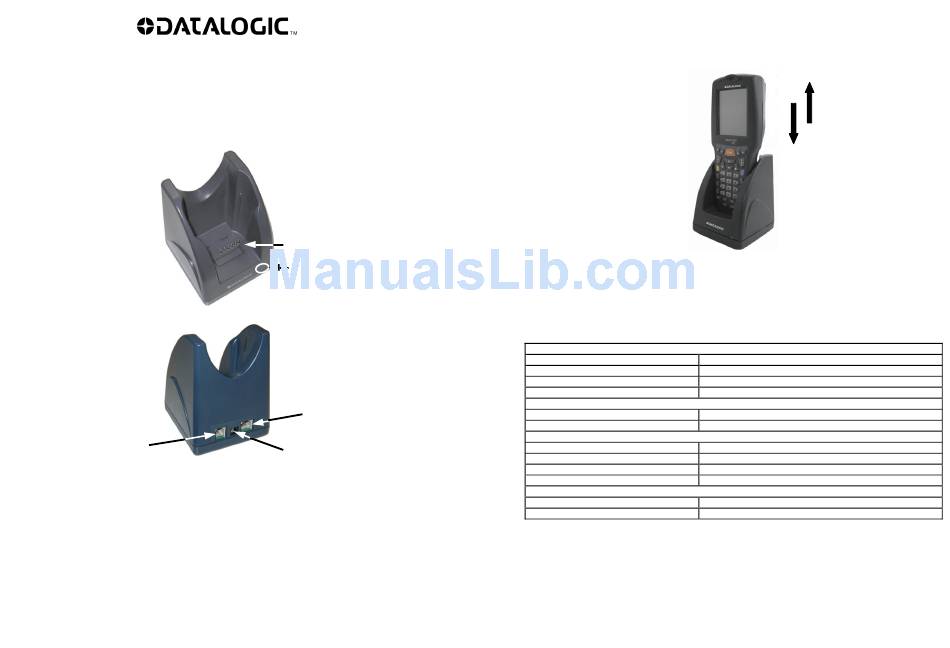

Figure 1 – Datalogic Skorpio™ Serial/Modem Cradle General View
Key:
A) Battery recharge and RS232 contacts
B) Power indicator LED
C) Connector for host computer connection (RS232)
D) Power supply connector
E) Modem connector
Data can be transmitted to the Host launching the communication software on the mobile computer and then
inserting it into the cradle slot. By inserting the mobile computer into the cradle, the mobile computer battery
charging starts.
822000731 (Rev. A)
A
B
C
D
Correct Mobile Computer Insertion / Removal
For correct insertion onto the cradle, insert the mobile computer from the top of the cradle and push it down
firmly.
Figure 2 - Mobile Computer Insertion
To remove the mobile computer from the Datalogic Skorpio™ cradle, simply pull it upwards while holding the
cradle firmly down.
TECHNICAL FEATURES
Electrical Features
Power supply * 9 VDC Min – 30 VDC Max
Consumption 12 W Max
Indicators Power LED
Charge time 4 Hours (Li ION batteries)
Communication Features
Interface RS232
Baud rate 9600 - 115200
Environmental Features
Working temperature 0° to +50 °C **
Storage temperature -20 °C to +60 °C
Humidity 90% non condensing
Degree of protection IP20
Mechanical Features
Dimensions 85 x 106 x 90 mm
Weight 350 g
* Recommended DL power supply: FPS18.
** Batteries must be charged at a temperature ranging from 0° to 45 °C.
