Datalogic Elf Charger 94A151134 Manual

Elf™/ Falcon™ X3
Four Slot Dock
Read this manual carefully before performing any
type of connection from the terminal to a host PC
using the Four Slot Dock.
The user is responsible for any damages caused
NOTE
by incorrect use of the equipment or by
inobservance of the indication supplied in this
manual.

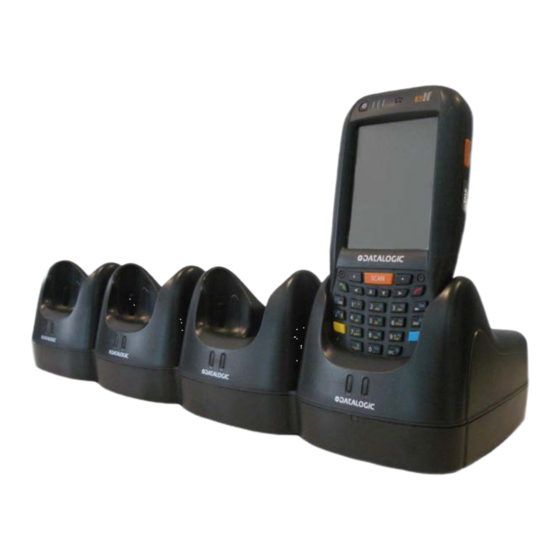

The Four Slot Dock paired with an Elf PDA or a Falcon X3 mobile
computer builds a reading system for the collection, decoding
and transmission of barcode data.
The Four Slot Dock can charge both the terminals and the spare
batteries at the same time. The spare batteries can be charged
by inserting them into the slots at the back of the cradle.
The Four Slot Dock comes in two different models, the Charger
and the Ethernet:
−
Elf Charger 94A151134; Elf Ethernet 94A150053
−
Falcon X3 Charger 94A151135; Falcon X3 Ethernet
94A150056
The Ethernet model also provides Ethernet connection for data
transfer via local area networks.
A F
B
C
D
Figure 1 –Four Slot Dock
Key:
∗
A) Link LED for Ethernet Port 1,2,3,4
B) Battery charger LED for Slot 1,2,3,4
C) Power supply connector
D) Ethernet Port 1 (with integrated Link and Speed LEDs)
E) Ethernet Port 2 (with integrated Link and Speed LEDs)**
F) Power on LED
822000965 (Rev. A) Jan. 2018
∗
Used in the Ethernet Four Slot Dock only
∗∗
Available in the Ethernet Four Slot Dock only
MOBILE COMPUTER INSERTION/ REMOVAL
For correct insertion into the cradle, insert the mobile computer
from the top of the cradle and push it down until the clip of the
cradle clicks
To remove the mobile computer from the cradle, simply pull it
upwards while holding the cradle firmly down.
Figure 2 - Mobile Computer Insertion
Power Supply
Each 4SD requires a power supply to be connected to mobile
computers. We recommend the power supply already included in
the box.
-
+
Figure 3 - Power Supply Polarity
E
∗∗
LED INDICATORS
Power LED Status Indicator (F)
Color Status
Green Cradle powered
Battery Charging LED Status Indicators (B)
Color Status
Off Battery absent
Red Battery charge in progress
Green Charge completed
Red Blinking Error
USING THE SPARE BATTERY CHARGER
Correctly insert the battery pack into the slot and simply press it
into the slot until the battery latch is automatically closed;
charging starts automatically.
Figure 4 - Spare Battery Insertion
To remove the battery, release the latch on the battery pack.
Figure 5 - Spare Battery Removal
∗
ETHERNET CONNECTION
The Ethernet cradle drivers are pre-installed on the Elf and on
the Falcon X3 and initiate automatically when the terminal is
placed in a properly connected Four Slot Dock Ethernet.
When the mobile computer is inserted into the Four Slot Dock
Ethernet, the connectivity icon on the taskbar indicates that the
mobile computer is connected to a network.
The maximum bandwidth capacity for each
Mobile Computer is 12Mbps.
NOTE
The yellow Link LED blinks to indicate activity, or stays lit to
indicate that a link is established. When it is not lit it indicates that
there is no link.
Connections should always be made with power
OFF!
CAUTION
How to connect
Connect the Ethernet cradle (Ethernet port 1 - E) to an Ethernet hub
or to a port on the host device. Connect the Ethernet cradle (power
port - F) to the power supply.
A
F
E
B
C
Figure 6 - Ethernet Connection
Key:
A) Ethernet 4 Slot Dock
B) Power supply without power cord, supplied with the 4SD and
country specific power cord
C) UTP CAT 5E cable (recommended use)
D) Ethernet hub
E) Ethernet port 1
F) Power port
∗
Available in the Ethernet Four Slot Dock only
D
