OUT OF THE BOX

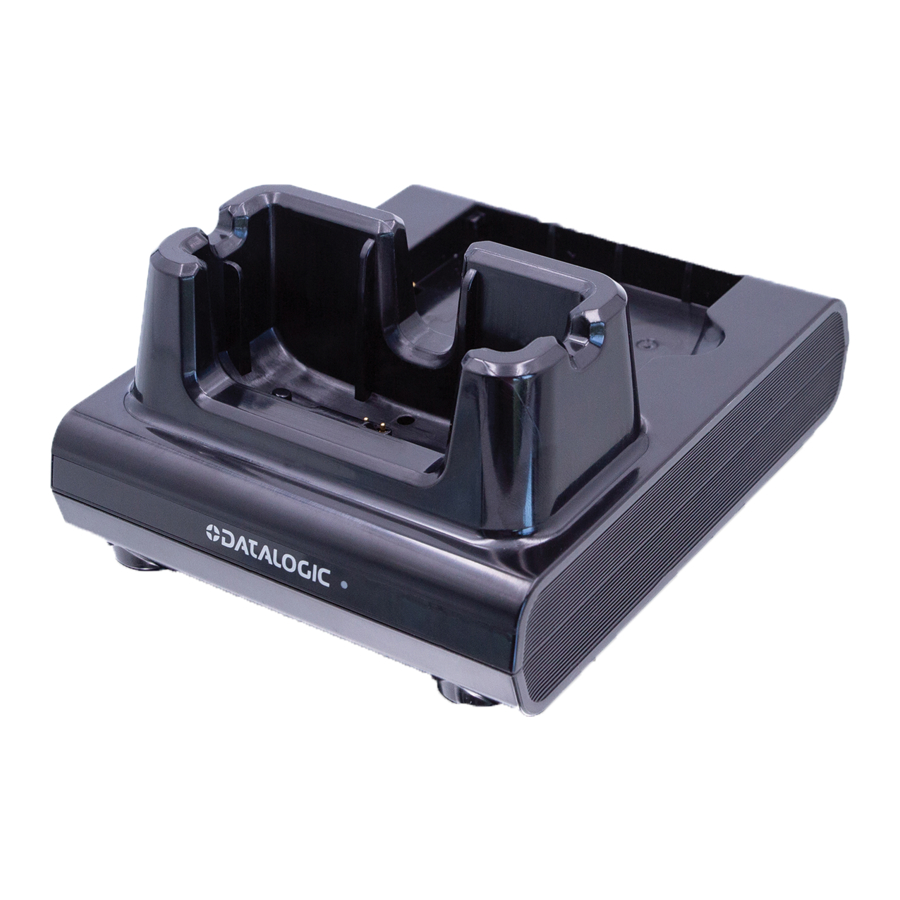

The Memor K Single Slot Dock package contains:
- Single Slot Dock
- Quick Start Guide
- Warranty Addendum
Remove all the components from their packaging; check their integrity and compare them with all the packing documents.
Keep the original packaging for use when sending products to the technical assistance center. Damage caused by improper packaging is not covered under the warranty.
PARTS AND FUNCTIONS
Front View
Back View
Top View
MOUNT THE RUBBER PADS
Attach the self-adhesive rubber pads to the bottom of the dock as shown below:
FAST THE DOCK TO A SURFACE
To securely fasten the Memor K Single Slot Dock to tables, desks and other surfaces, and to prevent the dock from moving when you remove the device, use a metal plate.
POWER SUPPLY
Use only the Datalogic power supply 94ACC0197 to power the Single Slot Dock Charge Only.
CHARGE THE MEMOR K
Insert the device into the dock with the screen facing front and the head facing up.
The dock is able to provide power to the Memor K when the device is correctly inserted.
Do not attempt to charge any other device different from the Memor K devices.
CHARGE THE SPARE BATTERY
Insert the spare battery into the slot, contacts side first, and then gently press it into place. The spare battery status LED illuminates red.
When charging is complete, the spare battery status LED illuminates green.
LED INDICATORS
| LED Behavior | Operation Status |
| Power ON | |
| Solid green | Dock is powered |
| Spare Battery Status | |
| Off | No battery |
| Solid red | Spare battery is charging |
| Solid green | Spare battery charge completed |
TECHNICAL SPECIFICATIONS
| Eletrical Features | ||
| Indicators Consumption | Power on LED (green) Spare Battery Status LED (red, green) 12V 2A | |
| Environmental Features | ||
| Working Temperature | 0°C to 45°C | |
| Storage Temperature | -30°C to 70°C | |
| Humidity | 5-95% non condensing | |
| Mechanical Features | ||
| Dimensions | 109 x 130.2 x 61.8 mm / 4.3 x 5.1 x 2.4 in | |
| Weight | 225 g / 7.94 oz | |
