Datalogic MEMOR SGVDKS Quick Start Manual

MEMOR™ FAMILY
QUICK START GUIDE
SMART DOCKING STATION
MODEL: SGVDKS
Warranty Terms and Conditions
Refer to the Memor device User's Manual, downloadable from our
website.
www.datalogic.com
822004731 (Rev. B) November 2024
FAST THE SMART DOCKING STATION TO
A SURFACE
To securely fasten the Docking Station to tables, desks and other
surfaces, and to prevent the dock from moving when you remove
the device, use the four velcro dual lock feet provided with the
matching dual lock adhesive pads.
1. Stick each dual lock foot together with its dual lock adhesive
pad.
Foot
Adhesive Pad
2. Peel off the protective liner from the back of the adhesive pads
and place them on the bottom of the smart docking station.
3. Peel off the protective liner from the back of the feet, place
the smart docking station on a pre-cleaned surface and press
firmly into place.
Datalogic S.r.l.
Via San Vitalino 13
40012 Calderara di Reno (BO)
Italy
Tel. +39 051 3147011
Fax +39 051 3147205
©2024 Datalogic S.p.A. and/or its affiliates
All rights reserved. Without limiting the rights under copyright,
no part of this documentation may be reproduced, stored in or
introduced into a retrieval system, or transmitted in any form or
by any means, or for any purpose, without the express written
permission of Datalogic S.p.A. and/or its affiliates.
Owners of Datalogic products are hereby granted a non-exclusive,
revocable license to reproduce and transmit this documentation
for the purchaser's own internal business purposes. Purchaser
shall not remove or alter any proprietary notices, including copyri-
ght notices, contained in this documentation and shall ensure that
all notices appear on any reproductions of the documentation.
Electronic versions of this document may be downloaded from
the Datalogic website (www.datalogic.com). If you visit our web-
site and would like to make comments or suggestions about this
or other Datalogic publications, please let us know via the "Con-
tact" page.
Disclaimer
Datalogic has taken reasonable measures to provide information
in this manual that is complete and accurate, however, Datalogic
shall not be liable for technical or editorial errors or omissions
contained herein, nor for incidental or consequential damages
resulting from the use of this material. Datalogic reserves the
right to change any specification at any time without prior notice.
Trademarks
Datalogic and the Datalogic logo are registered trademarks of
Datalogic S.p.A. in many countries, including the U.S.A. and the
E.U.
Memor is a trademark of Datalogic S.p.A. and/or its affiliates.
All other brand and product names may be trademarks of their
respective owners.
Support Through the Website
Datalogic provides several services as well as technical support
through its website.
Log on to www.datalogic.com.
For quick access, from the home page click on the search icon
, and type in the name of the product you're looking for. This
allows you access to download Data Sheets, Manuals, Software
& Utilities, and Drawings.
Hover over the Support & Service menu for access to Services
and Technical Support.
POWER THE SMART DOCKING STATION
CAUTION: Use only the Datalogic power supply
94ACC0380 to power the Smart Docking Station.
Press the locking clip and pull the plug to remove the power sup-
ply cable.
CHARGE THE MEMOR DEVICE
Install the protective boot on the device, or insert the adapter into
the smart docking station as shown below.
Insert the device into the smart docking station with the screen
facing front and the head facing up.
Memor Device with Protective Boot Memor Device without Protective Boot
To remove the device from the smart docking station, pull it
upwards while holding the smart docking station firmly down.
OUT OF THE BOX
The Memor Smart Docking Station package contains:
y Docking Station
y Dual Lock Feet (x4)
y Dual Lock Adhesive Pads (x4)
y Quick Start Guide.
Remove all the components from their packaging; check their
integrity and compare them with all the packing documents.
CAUTION: Keep the original packaging for use
when sending products to the technical assistance
center. Damage caused by improper packaging is
not covered under the warranty.

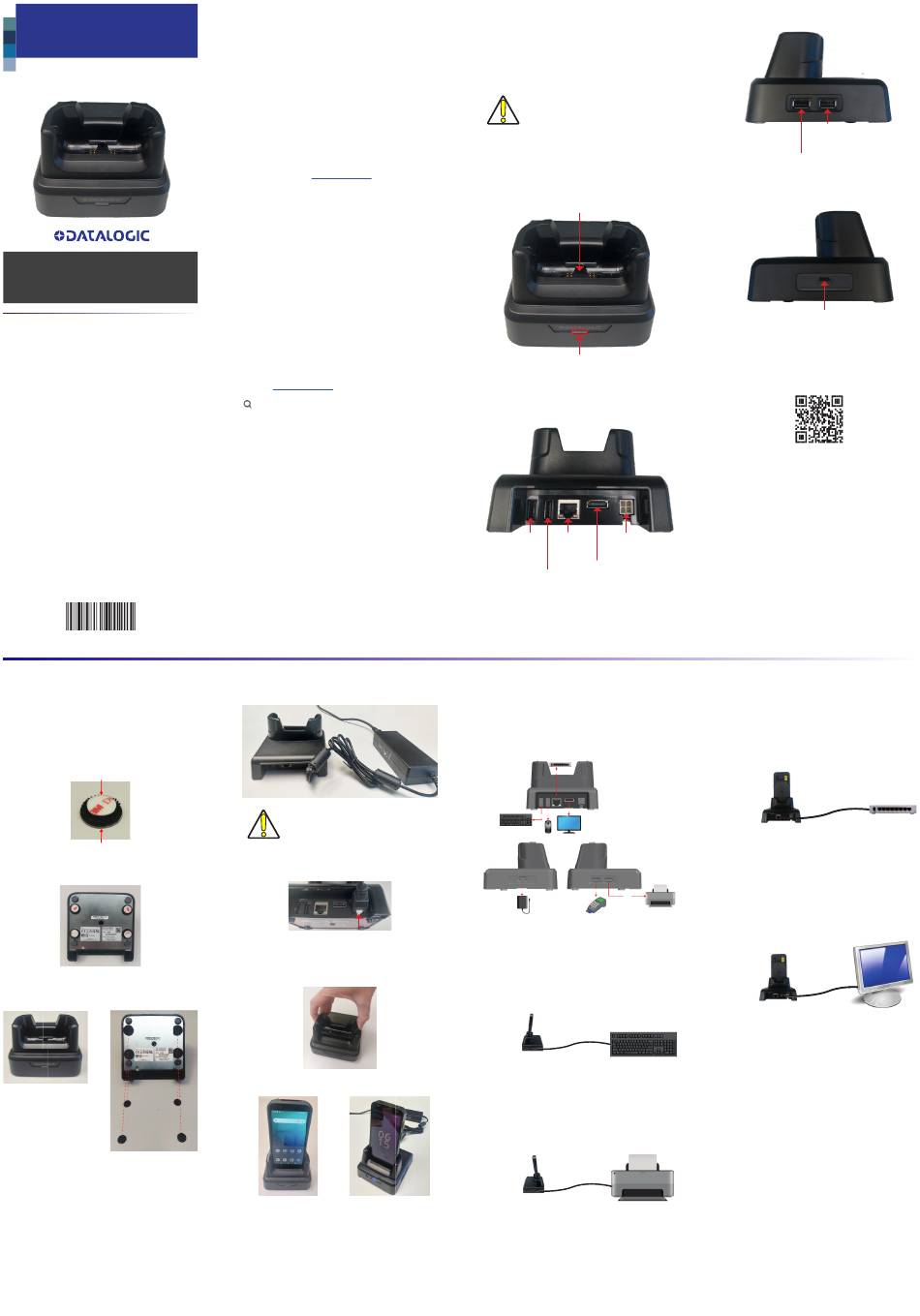

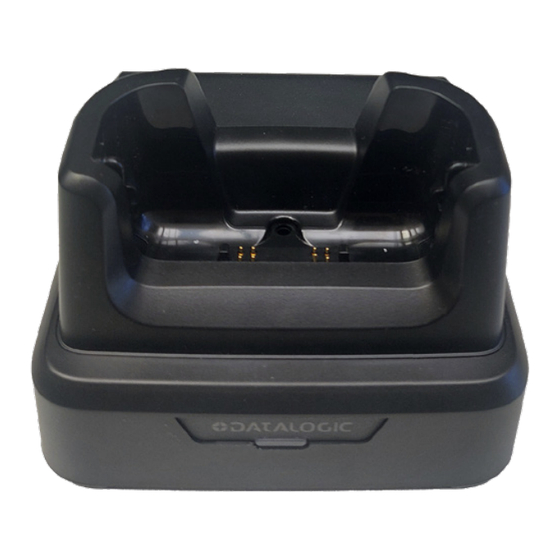

GENERAL VIEW
Front View
Contacts for Memor device
Power ON LED
Back View
USB Port 1 Ethernet Connector for
Port
for Data Power Supply
Transfer
HDMI Port
USB Port 2
for Data
Transfer
CONNECTIONS
The smart docking station connecting ports enable your device to
be used as a workstation computer when connected to a keybo-
ard, mouse, HDMI monitor, printer, external hard disk, flash drive,
payment terminal or any other peripheral.
In the minimal configuration you can connect mouse, keyboard
and monitor using the ports on the rear side to hide the cables.
Ethernet
HDMI
USB
USB
USB-C
USB
USB
USB Connection
1. Connect the smart docking station to the USB device by means
of a standard USB to USB cable.
2. Turn on the Memor device.
3. Insert the Memor device into the smart docking station.
Memor Device
USB Device
USB to USB Cable
Smart Docking
Station
USB-C Connection
1. Connect the smart docking station to the USB device by means
of a standard USB to USB Type-C cable.
2. Turn on the Memor device.
3. Insert the Memor device into the smart docking station.
USB Device USB Device
Memor Device
USB Type-C Cable
Smart Docking
Station
Side View
USB Port 4
for Data
Transfer
USB Port 3
for Data
Transfer
USB Type-C Port
for Data Transfer
MEMOR ADAPTERS
Scan/click the QR code to check the availability and compatibility
of Memor accessories and adapters:
Ethernet Connection
1. Plug a CAT-5 ethernet cable into the ethernet port on the back
of the smart docking station.
2. Plug the ethernet cable into the ethernet hub or a port on the
host device.
3. Turn on the Memor device.
4. Insert the Memor device into the smart docking station.
Memor Device
Ethernet Hub
Smart Docking
Station
CAT-5 Ethernet Cable
HDMI Connection
1. Turn on the HDMI device.
2. Plug an HDMI cable into the HDMI port on the back of the
smart docking station.
3. Plug the HDMI cable into the HDMI port on the HDMI device.
4. Turn on the Memor device.
5. Insert the Memor device into the smart docking station.
HDMI Device
Memor Device
HDMI Cable
Smart Docking
Station
