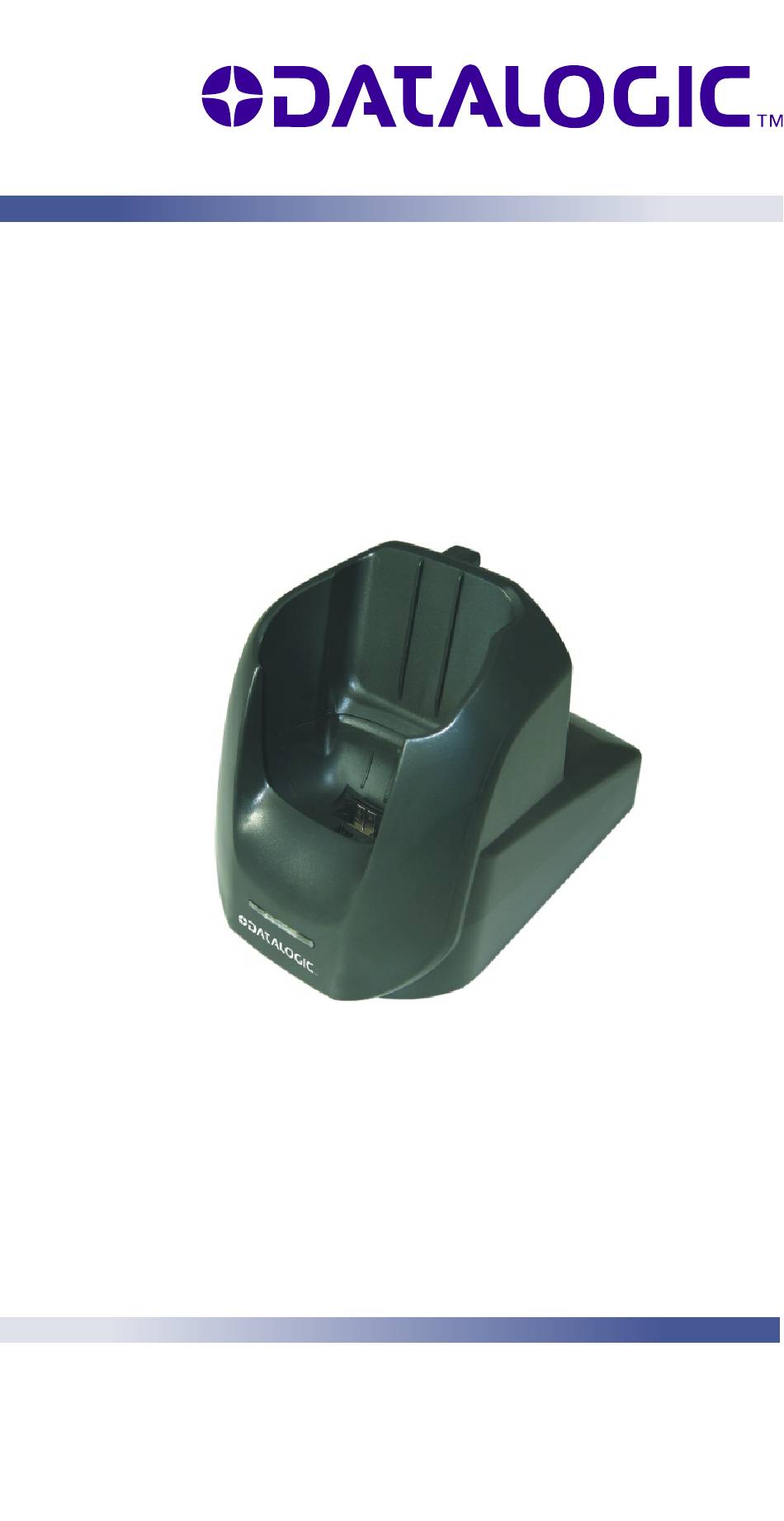

- Page 1 Datalogic Memor™ Single Ethernet Cradle User’s Manual...
- Page 2 Ed.: 04/2008 ALL RIGHTS RESERVED Datalogic is a registered trademark of Datalogic S.p.A. in many countries and the Datalogic logo is a trademark of Datalogic S.p.A.. All other brand and product names mentioned herein are for identification purposes only and may be trademarks or registered trademarks of their respective owners.
-
Page 3: Table Of Contents
Services and Support................iv SAFETY REGULATIONS ..............V FCC Compliance ..................v WEEE Compliance................vi GENERAL VIEW................VIII INTRODUCTION................. 1 Datalogic Memor™ Single Ethernet Cradle Description ..... 1 Charging and Communication............. 2 LED Indicators..................3 CONNECTIONS.................. 4 USB Connection.................. 4 RS232 Connection ................5 Ethernet Connection ................ -
Page 4: References
Datalogic Memor™ PDA. SERVICES AND SUPPORT Datalogic provides several services as well as technical support through its website. Log on to www.mobile.datalogic.com and click on the links indicated for further information including: PRODUCTS Search through the links to arrive at your product page where you can download specific Manuals and Software &... -
Page 5: Safety Regulations
SAFETY REGULATIONS Read this manual carefully before performing any type of connection from the terminal to a host PC using the Datalogic Memor™ Single Ethernet Cradle. The user is responsible for any damages caused by incorrect use NOTE of the equipment or by inobservance of the indication supplied in this manual. -
Page 6: Weee Compliance
Per maggiori dettagli sulle modalità di smaltimento, contattare il Fornitore dal quale è stata acquistata l’apparecchiatura o consultare la sezione dedicata sul sito www.mobile.datalogic.com. Information for the user in accordance with the European Commission Directive 2002/96/EC At the end of its useful life, the product marked with the crossed out wheeled wastebin must be disposed of separately from urban waste. - Page 7 Pour obtenir des informations complémentaires concernant l'élimination, veuillez contacter le fournisseur auprès duquel vous avez acheté le produit ou consulter la section consacrée au site Web www.mobile.datalogic.com. Información para el usuario de accuerdo con la Directiva Europea 2002/96/CE Al final de su vida útil, el producto marcado con un simbolo de contenedor de...
-
Page 8: General View

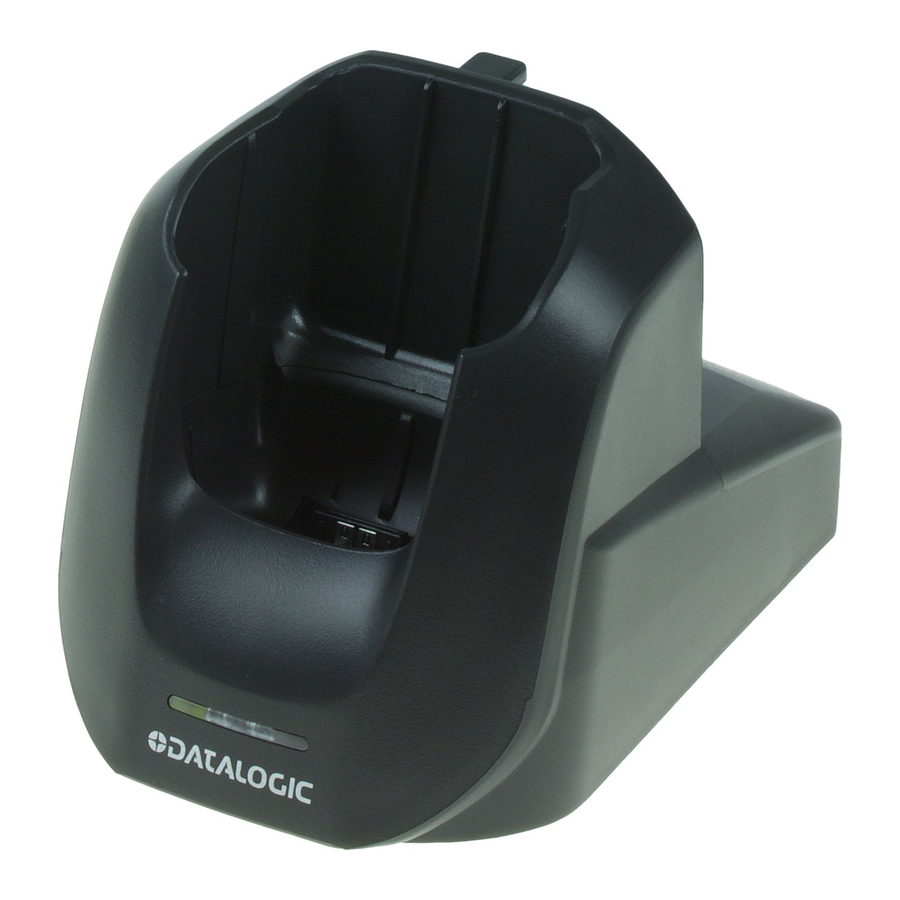

GENERAL VIEW Figure 1 – Datalogic Memor™ Single Ethernet Cradle LED Indicators Power Jack Spare Battery Slot Ethernet Port with LED indicators Mini USB Connector Switch Ethernet/USB RS232 Connector viii... -
Page 9: Introduction
SINGLE ETHERNET CRADLE DESCRIPTION The Datalogic Memor™ Single Ethernet Cradle paired with a Datalogic Memor™ mobile computer builds a reading system for the collection, decoding and transmission of barcoded data. Datalogic Memor™ Single Ethernet Cradle is a serial communication adapter between the host computer and the Datalogic Memor™... -
Page 10: Charging And Communication
In addition, a spare battery can be charged by inserting it into the slot at the back of the Datalogic Memor™ Single Ethernet Cradle as shown in the following figure. -
Page 11: Led Indicators
DATALOGIC MEMOR™ SINGLE ETHERNET CRADLE LED INDICATORS The LEDs positioned on the front part of the Datalogic Memor™ Ethernet Cradle (see figure below) indicate the cradle and spare battery charger status: Spare Battery Power LED Charger LED Figure 3 - LED Indicators... -
Page 12: Connections
OFF! CAUTION USB CONNECTION The Datalogic Memor™ Single Ethernet Cradle can be connected to the host by means of any standard Mini USB cable. Once the host has been turned on, insert the Datalogic Memor™ mobile computer into the cradle. -
Page 13: Rs232 Connection
DATALOGIC MEMOR™ SINGLE ETHERNET CRADLE RS232 CONNECTION The Datalogic Memor™ Single Ethernet Cradle can be connected to the host by means of any standard null modem cable. The 9-pin female D-Sub connector must be connected to the RS232 port of the cradle. -
Page 14: Ethernet Connection
You may need to set the cradle configuration or the terminal behaviour using respectively the "Cradle Manager" Windows XP application and the "CPCradleCE" Windows CE application. You can download the "Cradle Manager" installation file from the Datalogic Mobile website: www.mobile.datalogic.com. NOTE ∗ Recommended power supply: 94ACC1324 PG5-30P35 AC/DC POWER SUPPLY... -
Page 15: Ethernet Settings
DATALOGIC MEMOR™ SINGLE ETHERNET CRADLE ETHERNET SETTINGS WINDOWS CE ETHERNET CRADLE DRIVER Starting from Datalogic Memor™ Windows CE software version 5.51, the Ethernet Cradle Driver (CPCradleCE.exe) is pre-installed and initiate automatically when the Datalogic Memor™ is correctly inserted into the Ethernet Cradle. -
Page 16: Cradle Manager Windows Xp Application
ETHERNET SETTINGS CRADLE MANAGER WINDOWS XP APPLICATION The "Cradle Manager" Windows XP application is the software used to view and modify how the cradle operates on the network. This software should only be used by network or system administrators. Improperly configuring network-connected cradles can cause the cradle to stop working and possible... -
Page 17: Installing Cradle Manager
DATALOGIC MEMOR™ SINGLE ETHERNET CRADLE INSTALLING CRADLE MANAGER Cradle Manager may be downloaded from the Datalogic web site www.mobile.datalogic.com. To install, double click the file name and follow the installation wizard instructions. USING CRADLE MANAGER To run, select “Start > Programs > Cradle Manager”. - Page 18 ETHERNET SETTINGS To view specific device details, highlight a cradle in the list, and then click “Device”. The available options are: Device Option Description Status Allows the user to view status information of the device. All device information can be viewed here. Modify Settings Allows the user to view and modify the settings of the selected device.
-
Page 19: Cradle Settings
DATALOGIC MEMOR™ SINGLE ETHERNET CRADLE CRADLE SETTINGS When viewing specific device details, you may modify the configuration of your cradle. Click on “Modify Settings” to display the configuration windows. Figure 9 - General Settings General Settings Device Name A text string used to describe the cradle. - Page 20 CRADLE SETTINGS Figure 10 - TCP/IP Settings TCP/IP Settings IP Address The IP address that the cradle will use when communicating on the network. Subnet Mask The subnet mask that the cradle will use when communicating on the network. Gateway Address The IP address that the cradle will use to send non-local IP network data.
-
Page 21: Troubleshooting
DATALOGIC MEMOR™ SINGLE ETHERNET CRADLE TROUBLESHOOTING Symptom: Nothing Works! Possible Cause Action Poor cable connections Check the cables to ensure you have them connected correctly securely. For more information, see the earlier sections on how to connect the cables. When properly connected, the lights on the adapter ends will be lit. -
Page 22: Technical Features
TECHNICAL FEATURES TECHNICAL FEATURES Datalogic Memor™ Single Ethernet Cradle Electrical Features Power Supply* 5 VDC ± 5% Consumption Max. 2.5 A Power on LED (green) Spare battery charge LED (bi-colored) Indicators Ethernet LEDs (green and yellow) 1000 mAh Battery: max. 3 hours Charge Time 2000 mAh Battery: max. - Page 23 Datalogic Mobile S.r.l. Via S. Vitalino 13 40012 - Lippo di Calderara Bologna - Italy dichiara che declares that the déclare que le bescheinigt, daß das Gerät declare que el ™ DL-Memor Single Ethernet Cradle e tutti i suoi modelli and all its models et tous ses modèles...
- Page 24 World wide Sales Network available from: www.mobile.datalogic.com/contacts Datalogic Mobile S.r.l. Via S. Vitalino, 13 40012 Lippo di Calderara di Reno Bologna - Italy Telephone: (+39) 051-3147011 Fax: (+39) 051-3147561 ©2008 Datalogic Mobile S.r.l. 04/08...
