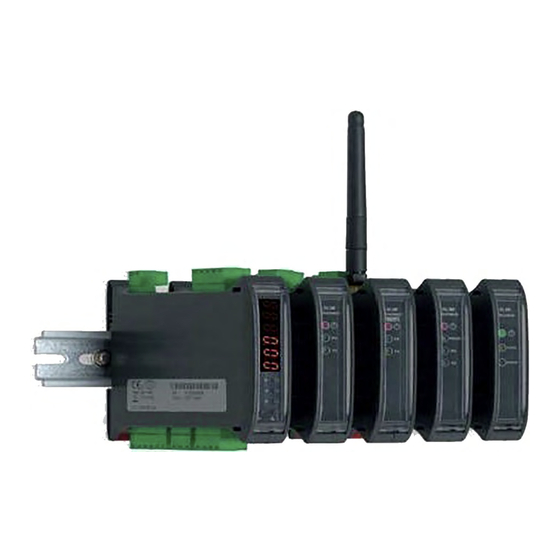

SCT-2200 Fieldbus Module
Profibus, PROFINET, EtherCAT, DeviceNet,
CANopen, Ethernet IP, Modbus TCP/IP
Technical Manual
September 5, 2019
PN 183523 Rev B

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SCT-2200 and is the answer not in the manual?

Questions and answers

Related Manuals for Rice Lake SCT-2200

Summary of Contents for Rice Lake SCT-2200

  • Page 1 SCT-2200 Fieldbus Module Profibus, PROFINET, EtherCAT, DeviceNet, CANopen, Ethernet IP, Modbus TCP/IP Technical Manual September 5, 2019 PN 183523 Rev B...
  • Page 2 All information contained within this publication is, to the best of our knowledge, complete and accurate at the time of publication. Rice Lake Weighing Systems reserves the right to make changes to the technology, features, specifications and design of the equipment without notice.

  • Page 3: Table Of Contents

    SCT-2200 Fieldbus Hub Mode Configuration Settings ........
  • Page 4 SCT-2200 Fieldbus Module Rice Lake continually offers web-based video training on a growing selection of product-related topics at no cost. Visit www.ricelake.com/webinars www.RiceLake.com Visit our website...

  • Page 5: Introduction

    Do not operate or work on this equipment unless this manual has been read and all instructions are understood. Failure to follow the instructions or heed the warnings could result in injury or death. Contact any Rice Lake Weighing Systems dealer for replacement manuals.

  • Page 6: Technical Data

    SCT-2200 Fieldbus Module Technical Data • Power supply: 12 to 24 V • Maximum current draw: 250 mA (with 12 V power supply) • HUB configuration: check up to 16 weighing scales simultaneously • RS-485 communication: opto isolated against electric or electrostatic discharges •...

  • Page 7: Setup

    To select the fieldbus communication protocol, follow the steps below: Figure 2-2. Serial Communication Menu 1. Reboot the SCT scale module. 2. Press as the firmware version displays to enter Setup mode. © Rice Lake Weighing Systems ● All Rights Reserved...

  • Page 8: Firmware Version 8.04

    The SCT scale module menu is used to configure the Fieldbus module. 1. Reboot the SCT scale module. 2. Press as the firmware version displays to access the quick setup menu: Figure 2-3. SCT-2200 Firmware Version 8.04 Quick Setup Menu 3. Press until Fld.bus displays. Press to enter the menu.

  • Page 9: Sct-2200 Fieldbus Hub Mode Configuration Settings

    1 the 485 address is set equal to 1. See Section 2.7 on page 15 for hub mode parameters. Profib node.id aut.cfG ip.add ethip net.msk Gateway profin eth.Cat nod.add baud.r canopn mac.id dev.net baud.r mb.tcp Figure 2-4. Filedbus Parameters © Rice Lake Weighing Systems ● All Rights Reserved...

  • Page 10: Input And Output Data Areas

    SCT-2200 Fieldbus Module Input and Output Data Areas There are two data areas. An input area is read by the fieldbus module and the output area is written from the fieldbus module. All the numeric values have the big-endian format (the first byte is the most significant one).

  • Page 11: Command Status

    Enabled Relay 3 Not Enabled Enabled Relay 4 Not Enabled Enabled Relay 5 Not Enabled Enabled Relay 6 Not Enabled Enabled Not used 8-15 Not used Table 2-5. Output Status Register © Rice Lake Weighing Systems ● All Rights Reserved...

  • Page 12: Output Data

    SCT-2200 Fieldbus Module Output Data The output data area is written by the fieldbus module (is therefore read by the scale module) and is made up of 16 registers, each of 2 bytes (32 bytes total). Number Number Output Registers...
  • Page 13 Set the max time of execution of the zero function (parameter 1 = new value in seconds, max number of seconds is 127) Active functions only in NTGS mode (net/gross switch) Table 2-7. Command Register © Rice Lake Weighing Systems ● All Rights Reserved...

  • Page 14: Value Format Of Parameter 1 And Parameter 2

    SCT-2200 Fieldbus Module 2.3.2 Value format of Parameter 1 and Parameter 2:  For the MANUAL TARE (only Param1):  For SETPOINTS 1 and 2: Whole numbers (no decimals) Example: If 3 decimals are set, in order to enter the value 3,000  enter 3000 If 2 decimals are set, in order to enter the value 3,00 ...

  • Page 15: Weigh Reading On Alibi

    Not Used Table 2-10. Area Setup (16 bytes) Pages 5 and 6 Meaning of the numeric value in the Unit of Measure field. 0 Grams; 1 Kilograms; 2 Tons; 3 Pounds © Rice Lake Weighing Systems ● All Rights Reserved...

  • Page 16: Calibration Sequence

    SCT-2200 Fieldbus Module Calibration Sequence The following tables contain read/write metrological calibration data:. Input Data Area (Number Byte) Description Byte Unit Of Measure Unit Of Measure 1st Range Division 1st Range Division 2nd Range Division 2nd Range Division Decimal Decimal...
  • Page 17 Parameter 1 = 5002 copy data output area values (bytes 16 to 31) into the temporary calibration area related to calibration ADC values 37 (0025 Hex) POINT_ACQUISITION Parameter 1 is the point to acquire 38 (0026 Hex) ABORT_CALIBRATION Abort the calibration under way Table 2-15. Calibration Commands © Rice Lake Weighing Systems ● All Rights Reserved...

  • Page 18: Calibration Sequence

    Browser weigh monitoring and calibration is only available on the Profinet, Ethernet IP, and Modbus TCP/IP modules. The PC must be on the same network as the device. Calibration can take place while the SCT-2200 is in weigh mode Note...

  • Page 19: Hub Mode

    13. Click Write Parameters to perform calibration. Figure 2-6. Calibration Dialog Box Hub Mode 2.7.1 Module Connection to SCT-2200 Transmitters Use the RJ45 and RS-485 directional ports to connect the Fieldbus Module to one or more SCT-2200 scale modules (up to 16). B(-) B(-) B(-) B(-)

  • Page 20: Firmware Version 7.15 Or Older

    SCT-2200 Fieldbus Module 2.7.2 Firmware Version 7.15 or older 485 Network The following paths can be followed from the setup menu in the scale module to access hub mode setup parameters; Step setup Value      ...

  • Page 21: Firmware Version 8.0 Or Newer

    Primary Scale 1 Secondary Scale 02 Scale 03                    Table 2-20. DeviceNet Configuration © Rice Lake Weighing Systems ● All Rights Reserved...

  • Page 22: Output Data

    SCT-2200 Fieldbus Module CANopen Hub Mode Configuration Primary Scale 1 Secondary Scale 02 Scale 03                    Table 2-21. CANopen Configuration Output Data...

  • Page 23: Output Data (For Sending Commands)

    (LSB) Second parameter of the command. 03 Hex (MSB) Parameter is always expressed in absolute mode (no decimals, no E8 Hex (LSB) sign). (LSB) Table 2-24. Output Data (for sending commands) © Rice Lake Weighing Systems ● All Rights Reserved...

  • Page 24: Input Data

    SCT-2200 Fieldbus Module Input Data The Input Data area can be filled with different pages. Profibus Command (HEX) to Page Change Page Network data page F000 Scale 1 data F001 … Scale 16 data F010 Network status F100 Table 2-25. Input Data Area www.RiceLake.com...

  • Page 25: Input Data (For Data Reading) - Single Scale Mode

    01 Hex 02 Hex 03 Hex (LSB) Bit 0 Digital output 1 status (0 = OFF; 1 = ON) (LSB) Table 2-26. Input Data (for data reading) - Single Scale Mode © Rice Lake Weighing Systems ● All Rights Reserved...

  • Page 26: Input Data (For Data Reading) - Hub Mode

    SCT-2200 Fieldbus Module 2.9.2 Input Data (for data reading) - Hub Mode DATA* DESCRIPTION/EXAMPLE Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0 Bit 7 Scale present bit (Fixed value = 1) Bit 6/5 Progressive command loop counter;...

  • Page 27: Network

    SCALE 1…N PAGE DATA- Data are the same of the 1 to 1 function mode. Note Byte Data Number of the scales of the system Scale 1 state Scale 2 state … … Scale 16 state … Table 2-32. Network Status Page © Rice Lake Weighing Systems ● All Rights Reserved...
  • Page 28 SCT-2200 Fieldbus Module Value Meaning Scale not part of the network Scale on-line Scale off-line Table 2-33. Scale State To put a scale back online after it goes offline: • Restart the scale module • Execute by the execute the command 0xF200 •...

  • Page 29: Profibus File

    Manufacturer ID – 0xE0000044 Product ID – 0x0000000B Module Name Number Description Input 200 byte module for the input area Output 200 byte module for the output area Table 2-37. ESI Modules © Rice Lake Weighing Systems ● All Rights Reserved...

  • Page 30: Eds Canopen File

    SCT-2200 Fieldbus Module 2.15 EDS CANopen File Device name – DINI NIC 52-COS Manufacturer ID – 0x00000044 Product ID – 1541540 Module Name Number Description Input 8 bytes modules for the input area (TXPDU); min. 4 TXPDU (32 byte) Output 8 bytes module for the output area (RXPDU);...

  • Page 31: Troubleshooting

    Table 3-3 Table 3-2. Error Code Code Description 000140 General network error 000141 Connection closed 000142 Time-out connection 000143 Isolated network 000144 Duplicated node 000145 Network cable disconnected Table 3-3. Network Errors © Rice Lake Weighing Systems ● All Rights Reserved...
  • Page 32 SCT-2200 Fieldbus Module www.RiceLake.com Visit our website...
  • Page 34 Specifications subject to change without notice. Rice Lake Weighing Systems is an ISO 9001 registered company. 230 W. Coleman St. • Rice Lake, WI 54868 • USA U.S. 800-472-6703 • Canada/Mexico 800-321-6703 • International 715-234-9171 • Europe +31 (0)26 472 1319...
