Makita BBC231U Series Technical Information page 11

W

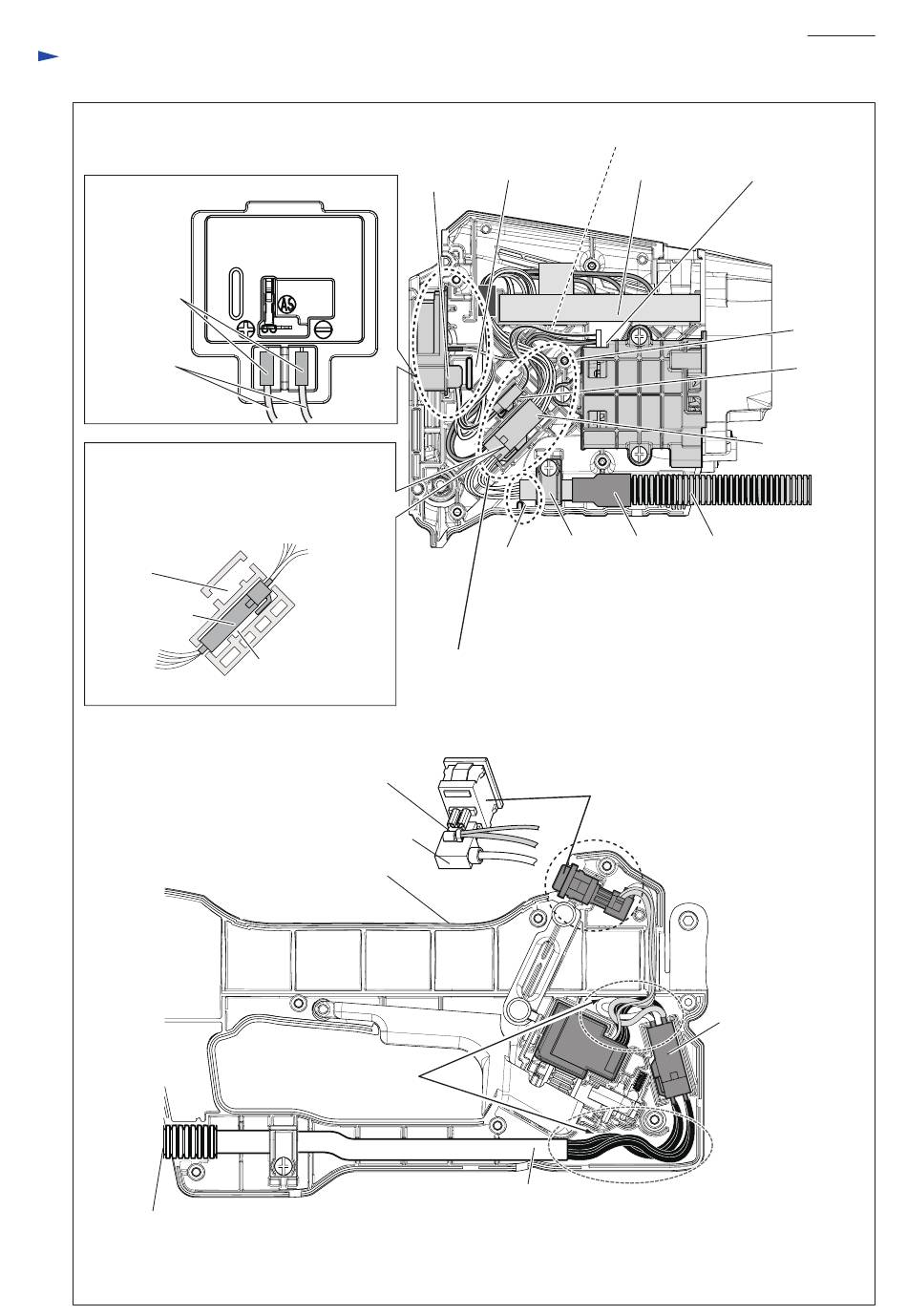

iring diagram (for BBC300L and AT-3630)
Fig. D-2A
Connect Flag terminals with Terminal so that
Lead wires face outside of Terminal. Do not
route the Lead wires between Terminal and Rib B.
Terminal viewed from the upper side
Flag terminal
Lead wires
Fit 3-pin connector into the room on
Housing L as illustrated below, and then
put 6-pin connector on 3-pin connector
as illustrated right.
Room on Housing L
for 5-pin connector
3-pin connector
Flag receptacle with sleeve
(Tube side of Powr supply
cord unit with tube)
Face the tube side of Power supply cord unit to Strain relief side, and fix Power supply cord unit with Strain relief.
Terminal
Do not put Lead wires on 3-pin connector and 6-pin connector.
Room on Housing L
for 3-pin connector
Flag receptacle
Grip L
Slacks in Lead wires have to
stored in the rooms designated
in arrows and circles.
(No tube on Powr supply cord unit )
Route Stater lead wires between Controller
and emboss of Housing L
Rib B of
Controller
Housing L
Strain Tube
Rib A
relief
Align one end of Power supply cord with Rib A, and
secure Power supply cord unit with Strain relief.
Do not pinch Tube between Strain relief and Housing L.
Reverse switch
P 11/ 12
Terminal of
Stator
emboss of
Housing L
5-pin
connector
6-pin connector
Power supply cord unit
Insert Connector into
the room of Grip L as
illustrated left.
Be careful to the
direction.
