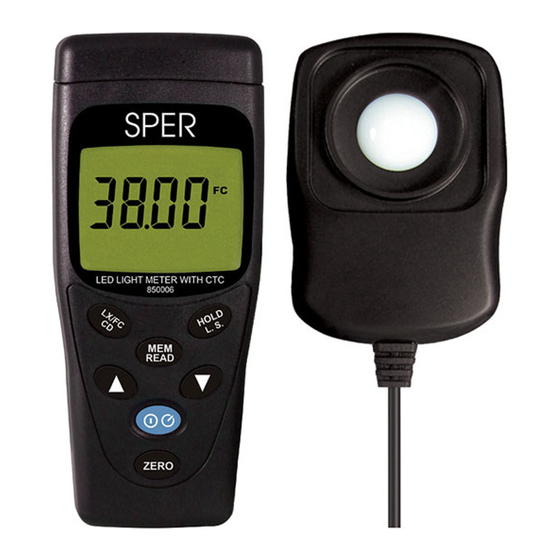

LED Light Meter with
Color Temperature Correction
850006
Instruction Maual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 850006 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Sper scientific 850006

Summary of Contents for Sper scientific 850006

  • Page 1 LED Light Meter with Color Temperature Correction 850006 Instruction Maual...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 FEATURES .

  • Page 3: Introduction

    INTRODUCTION This Sper Scientific LED light meter with color temperature correction (model 850006) is specifically designed to measure modern LED bulbs over the wide range of color-temperature varieties commercially available in today’s lighting industry. This unique meter includes all the features of a standard...

  • Page 4: Features

    FEATURES • Min/Max/Average • 7 pre-programmed LED channels • Hold Function • 1 Adjustable channel • 99-point internal memory • 1 standard non-LED channel • Luminous Intensity (CD) • Reads Foot Candle (FC) and Lux (Lx) • Distance-to-source feature • Tripod mountable...

  • Page 5: Materials Supplied

    Do not use abrasives, solvents or cleaning agents containing carbon, alcohol or benzenes on the meter. • Repairs or services not covered in this manual should be performed by qualified personnel only. Please contact Sper Scientific to speak with a technician.

  • Page 6: Front Panel Description

    FRONT PANEL DESCRIPTION 1 . LCD Screen 2 . Light Units 3 . Memory/Recall 4 . UP Arrow 5 . Power Button 6 . Auto Zero Button 7 . HOLD / Channel Selector 8 . DOWN Arrow 9 . Photosensor 10 .

  • Page 7: Lcd Display

    LCD DISPLAY 1 . Automatic Power-off Enabled 2 . Internal Memory Enabled 3 . Hold Function Enabled 4 . Luminous Intensity Activated 5 . Foot Candle Reading 6 . Lux Reading 7 . Low Battery Indicator 8 . Light Correction Factor (Channels 8 and 9 only) 9 .

  • Page 8: Setup

    SET UP Battery Installation 1 . This meter comes with a 9V battery. 2 . Slide the rear cover down to expose the battery. 3 . Gently pull out the 9V battery from the housing and install the 9V battery, ensuring correct polarity. 4 .

  • Page 9: Zero Calibration

    ZERO CALIBRATION 1 . Turn the meter on . 2 . Place the lens cap on the sensor . 3 . Press ZERO . 4 . The screen will momentarily display “Adj” to indicate your zero calibration was successful. 5 . If the screen does not display “Adj”, the calibration was not successful.

  • Page 10: Measurement Procedures

    MEASUREMENT PROCEDURES 1 . Turn the meter on . 2 . Select your desired units by pressing LX/FC/CD to toggle between Lux and Footcandles.** **Note: If you want to activate the CD function, press LX/FC/CD for more than 2 seconds to activate this mode, explained on page 12.
  • Page 11 Available Channels and Light Source Identification Chart Channel ID Light Source Identification Standard Light source (non-LED) LED with 2700K Color Temperature LED with 3000K Color Temperature LED with 3500K Color Temperature LED with 4000K Color Temperature LED with 4500K Color Temperature LED with 5000K Color Temperature LED with 6500K Color Temperature Adjustable to any light source with a known...

  • Page 12: Luminous Intensity

    LUMINOUS INTENSITY The luminous intensity feature of this meter allows you to directly measure the intensity in Lux over distance. Please note that this feature is based on a Lux measurement. The formula for this calculation is as follows: 1 . Luminous Intensity (CD) = (Illumination in Lux) x Distance squared 2 .

  • Page 13: Spectral Sensitivity

    SPECTRAL SENSITIVITY Like any device that relies on the translation of a photosensor output to an electrical signal, there is an associated bandwidth. Please see the diagram below to see the spectral sensitivity of this LED light meter. The response is not the same at every wavelength and it is important to note that LED light covers many associated wavelengths.

  • Page 14: Specifications

    SPECIFICATIONS Unit Range Resolution Accuracy 0 to 40 Lux 0.01 Lux 40 to 400 Lux 0.1 Lux ±3%RDG 0 to 400 to 4,000 1 Lux 2,000 Lux Lux, Auto-Ranging 4,000 to 10 Lux ±6%RDG 40,000 Lux 2,000 to 40,000 to 100 Lux 5,000 Lux 400,000 Lux...

  • Page 15: Warranty

    WARRANTY Sper Scientific warrants this product against defects in materials and workmanship for a period of five (5) years from the date of purchase, and agrees to repair or replace any defective unit without charge. If your model has since been discontinued, an equivalent Sper Scientific product will be substituted if available.
  • Page 16 rev. 9/10/2019...
