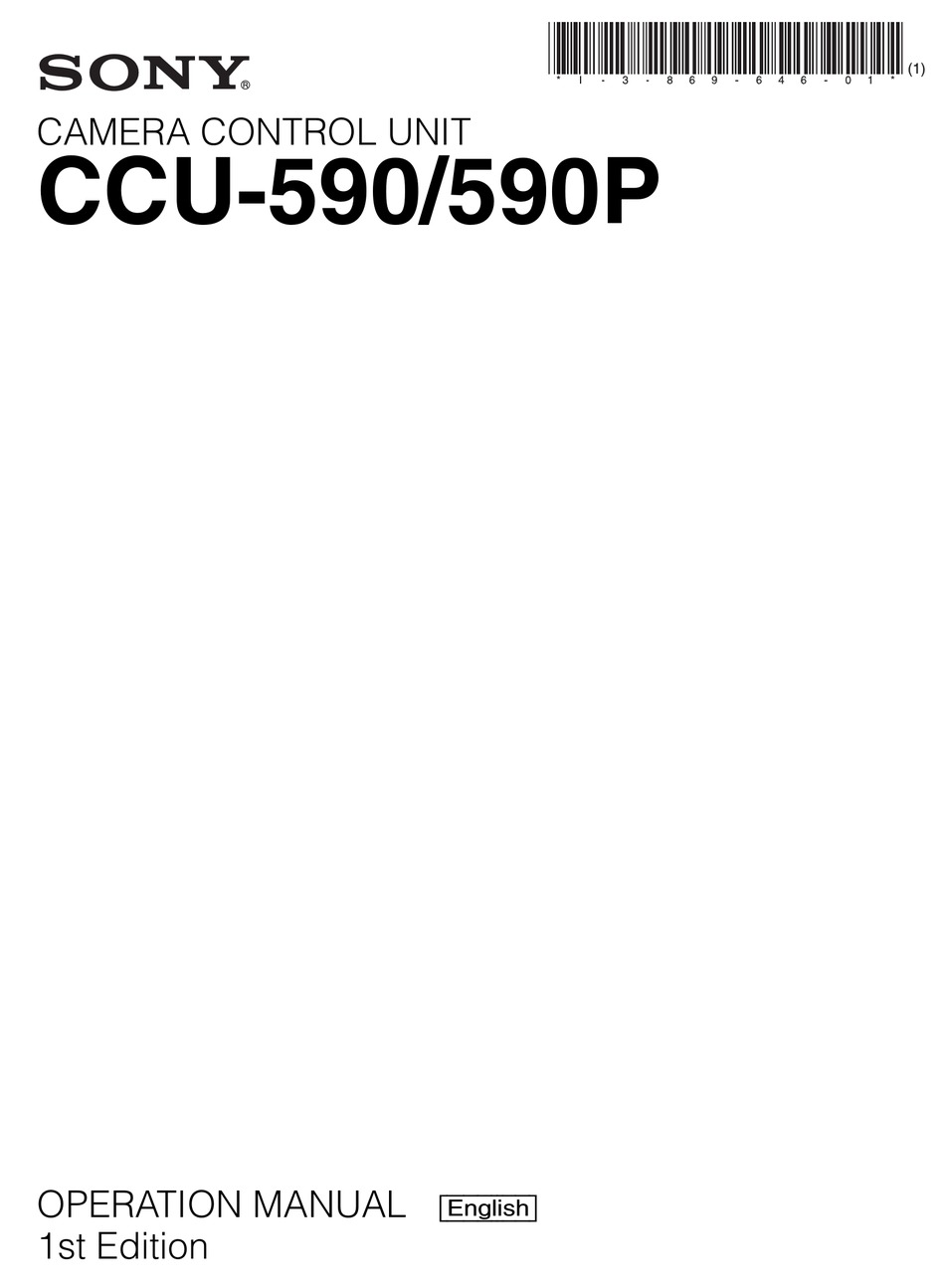

- Page 1 CAMERA CONTROL UNIT CCU-590/590P OPERATION MANUAL [English] 1st Edition...
- Page 2 Rear : 10 cm (4 inches) or more das Gerät weder Regen noch Feuchtigkeit For the customers in the U.S.A. (for CCU-590) ausgesetzt werden. This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the Um einen elektrischen Schlag zu FCC Rules.
- Page 3 For the customers in Europe (for CCU-590P) This product with the CE marking complies with both the EMC Directive (89/336/EEC) and the Low Voltage Directive (73/23/EEC) issued by the Commission of the European Community. Compliance with these directives implies conformity to the following European standards: •...
-
Page 4: Table Of Contents
Function and Location of Parts and Controls ....6 Front panel ................6 Rear panel ................. 7 Internal power switch and internal boards......10 Connecting the CCU-590/590P to the Video Camera ..11 Notes on connections .............. 11 Self-Diagnostics ..............12 Settings of the camera.............. 12 Status display of the camera system ........ -
Page 5: Overview
1,400 meters (with diameter of 14.5 mm). • The CCU-590/590P supports prompter signal transmission. Rack mountable Two CCU-590/590Ps can be mounted side by side in a standard 19-inch EIA rack when using an optional RMM- 301 Rack Mount Adaptor. Overview... -
Page 6: Function And Location Of Parts And Controls
CCU- Note 590/590P goes on air). When the CALL button on the If the fan in the CCU-590/590P stops, the MAIN indicator video camera, MSU-900/950, RCP-750/751 series remote will flash to warn you of the abnormal condition. If this... -
Page 7: Rear Panel
CCU-590/590P. of the internal AU board. ENG: Engineer line. The settings regarding the output intercom signals can be performed on the internal AU board. For details, consult your Sony service personnel. Rear panel a CAMERA connector b AUDIO OUTPUT connectors... - Page 8 A REFERENCE INPUT connectors To use this connector, it is required to change the setting of the internal board. For details, consult your Sony service personnel. B RET-1 connectors F SPARE connector (BNC type) C RET-2/PROMPTER connectors Not used.
- Page 9 Connect to the synchronous signal input connector on a waveform monitor or picture monitor. Connects to an AC power source using the supplied AC power cord. Secure the power cord to the CCU-590/590P E WF (waveform monitor output) connector (BNC using the supplied plug holder.
-
Page 10: Internal Power Switch And Internal Boards
Internal power switch and internal boards Internal boards Internal power switch Internal power switch Internal boards When abnormality has occurred and power cannot be cut Refer to System Manual. off by pressing the POWER switch on the front panel, open the front panel and turn off this power switch. -
Page 11: Connecting The Ccu-590/590P To The Video Camera
CA-905K/F/T/L Notes • The maximum power output from the CAMERA connector of the CCU-590/590P is 110 watts (including a maximum cable loss of 10 watts). Do not connect any equipment which To an AC power source consumes more than 110 watts of power. -
Page 12: Self-Diagnostics
Self-Diagnostics When an RCP-750/751 remote control panel or the RM- B750 is connected to the CCU-590/590P, or when a switch on the internal IV board is set, you can display the results of self-diagnostics of the internal boards of the CCU-590/ 590P and other information on a monitor screen. -
Page 13: Self-Diagnostics Results Of The Ccu-590/590P Internal Boards
CCU Power: Status of the CCU power supply SerialNo: Serial number of the CCU Page 2 Shows the settings of the Ethernet system. For details, contact your Sony service personnel. CAMERA Cable: Camera cable connection status (connected/shorted) Self-diagnostics results of the CCU-... - Page 14 AU board Skin Gate: Reception status of the Skin gate signal from the camera TRIAX Comp.: Cable compensation of a triax cable TRIAX Step: Compensation step of the triax cable (step indication in the circuit) (The cable length may not be displayed correctly.) Power: DM board power supply status TR board...
-
Page 15: Self-Diagnostics Results Of The Camera Internal Boards
RM-B750 while the last page When you keep pressing the CHARACTER button, pages of the results of the self-diagnostics of the CCU-590/590P are automatically turned to a screen with no characters internal boards is displayed on the monitor screen. The (character OFF screen). -
Page 16: Specifications
700 mVp-p, 75 ohms Specifications BNC type (1) 1.0 Vp-p, 75 ohms BNC type (1) NTSC: 714 mVp-p, 75 ohms General PAL: 700 mVp-p, 75 ohms Encoded output: 1.0 Vp-p, 75 ohms Power consumption WF MODE 4-pin (1) AUDIO OUTPUT 100 - 240 V AC, 50/60 Hz, maximum 1.8 A XLR, 3-pin... - Page 17 The material contained in this manual consists of information Trademark that is the property of Sony Corporation and is intended solely Ethernet is a registered trademark of Xerox Corporation. for use by the purchasers of the equipment described in this manual.
- Page 18 Sony Corporation CCU-590/590P Printed in Belgium B & P Company (UC/CE) 2005.03.08 3-869-646-01 (1) © 2005...
