Fitting Instructions Part Number C25P
Holden RG Colorado Space Cab 2012+
Check contents of kit before commencing fitment and report any discrepancies
• Do not stand/sit or rest heavy objects on Tonneau Cover
• Humans or animals are not to be under the closed Tonneau at any given time
• Securely lock tonneau Cover before operating vehicle
IMPORTANT
• Tonneau Cover is not dust or water tight
• Do not carry open volatile chemicals with Tonneau Cover installed
• If contact with volatile chemicals occur, clean Tonneau with mild detergent and water solution
• Read Instructions fully before commencing installation.
• Clean Tonneau Cover with a mild detergent and water solution
• Do not use abrasive cleaners or solvents
Care Instructions
• Refer to manufactures instructions applicable to power drill.
• Protect Tub floor against scratches during installation process.
If lubrication of the locks or hinges is required use only Graphite Powder. DO NOT use any other
Maintenance
lubricants or oils.
• Pen / Marker
• Centre Punch
• Drill & Drill bits
Tools Required
• Phillips head screwdriver
• Caulking Gun
• Silicon - Non Acetic
To suit Sports Bars
• Die Grinder & multi tool
• Masking Tape
• Scissors & Knife
• Ruler
• Spanner & Socket
• Tape measure
C25P

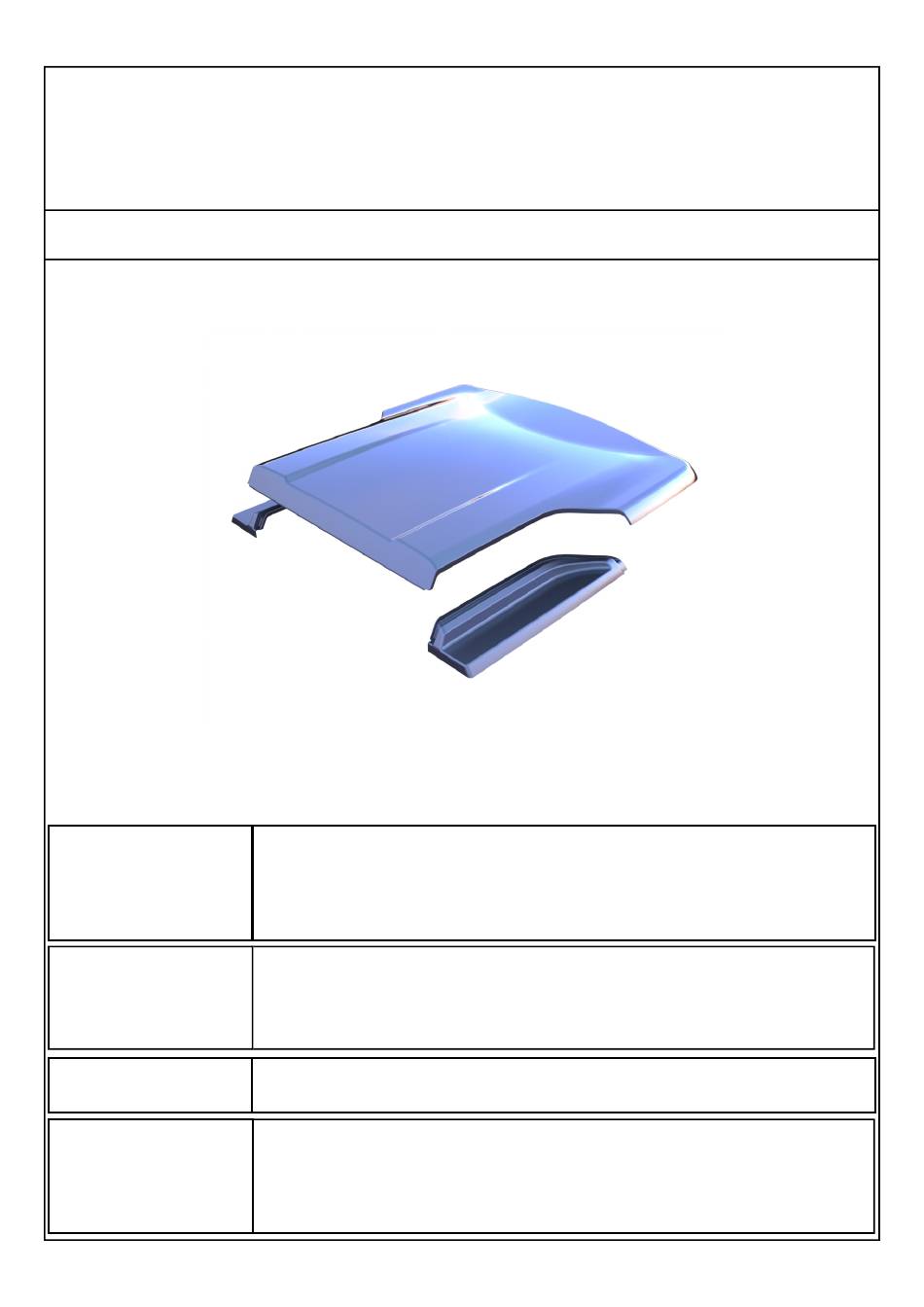

*Image example shown only
• Soapy water solution
• Allen Key set (Metric)
Page 1 of 16
Advertisement
Related Manuals for HSP C25P
Summary of Contents for HSP C25P
- Page 1 Fitting Instructions Part Number C25P Holden RG Colorado Space Cab 2012+ To suit Sports Bars Check contents of kit before commencing fitment and report any discrepancies *Image example shown only • Do not stand/sit or rest heavy objects on Tonneau Cover •...
- Page 2 Qty - 4 Qty - 4 Qty - 4 Qty - 20 OTHER CPS-1 Fitting Instructions Alcohol wipe Alan key Sportsbar feet cups Fitting Instruction Qty - SET Qty - 1 Qty - 1 Qty - 1 C25P Page 2 of 16...
- Page 3 Installation Steps Flow Chart START SPORTS BAR REMOVAL TUB PREP FOR LID INSTALL LID INSTALL AND ADJUSTMENT FINISH C25P Page 3 of 16...
- Page 4 Thoroughly clean installation areas. Important: Instructions are for Utes with an UNDER-RAIL tubliner. If you have an OVER-RAIL tubliner you must trim the top off. Find the centre of the bed and mark the position. C25P Page 4 of 16...
- Page 5 20mm and mark the screws position for the gas strut bracket. Position the gas strut bracket accordingly, mark two mounting holes and centre. Refer to Fig. 1 and Fig. 2 1130 mm 20 mm Fig.1 - Gas strut bracket location Fig.2 - Gas strut bracket location C25P Page 5 of 16...
- Page 6 Fig.3 - Gas strut bracket fitment Attach small shaft end of gas strut onto gas strut brackets, by clicking them in place. Refer to Fig.4 with regard to gas strut orientation. S700-220 Fig.4 - Gas strut orientation C25P Page 6 of 16...
- Page 7 Now tighten all bolts, this process is completed easi- er if done one leg of sports bar at a time. Silicon needs to be applied to the underside of the moulded feet cups to minimize the chance of water leakage. Rear C25P Page 7 of 16...
- Page 8 Position Sports Bar and corner pieces on tub Loosely attach front legs of Sports Bar with one (1) M6 hex bolt, two (2) M6 flat washers and one (1) M6 nyloc nut (per side) as shown. IMPORTANT: Do not tighten C25P Page 8 of 16...
- Page 9 When lid is aligned correctly, secure the catch hinge to the lid using 4 M8 Thick Washers and M8 Bolts Important: Ensure tongues are fully inserted into the hinge slots with hinge pin securely in place. C25P Page 9 of 16...
- Page 10 Repeat for the opposite side. Important: If you have purchased a Central Locking Ute Lid please ignore the next page concerning Lock Bracket Installation and Lock Bracket adjustment. C25P Page 10 of 16...
- Page 11 Fasten latch bracket in place with self-tapping screws. Repeat for the opposite side. Part No: 19 Self Tapping Screws C25P Page 11 of 16...
- Page 12 Cut off excess cable making sure to leave 20mm from locking allen key bolt. C25P Page 12 of 16...
- Page 13 C25P Page 13 of 16...
- Page 14 FIGURE 2 NOTE: 2 people are required to lift and re- move the tonneau cover from the vehicle. 2. Remove hinge pins (1) and remove tonneau cover (2). Refer to figure 3. FIGURE 3 C25P Page 14 of 16...
- Page 15 Wash Hard Tonneau Cover using water and normal carwash detergent and polish with an automo- tive polish. Please ensure Lid is kept locked at all times when not being used, for both safety and longevity. NOTE: Having trouble? Call your Supplier. C25P Page 15 of 16...
- Page 16 C25P Holden RG Colorado Space Cab C25P Page 16 of 16...
