Volvo 31428061 Installation Instructions Manual

Volvo 31428061 Installation Instructions Manual

Camera, rear
Hide thumbs

Advertisement

Quick Links

Download this manual
Installation instructions, accessories
Volvo Car Corporation Gothenburg, Sweden
Instruction No
Instruction No
Version
Version
31428063
31428063
1.0
1.0
IMG-258000
IMG-258000
© Volvo Car Corporation
Part. No.
Part. No.
31428061, 31428882
31428061, 31428882

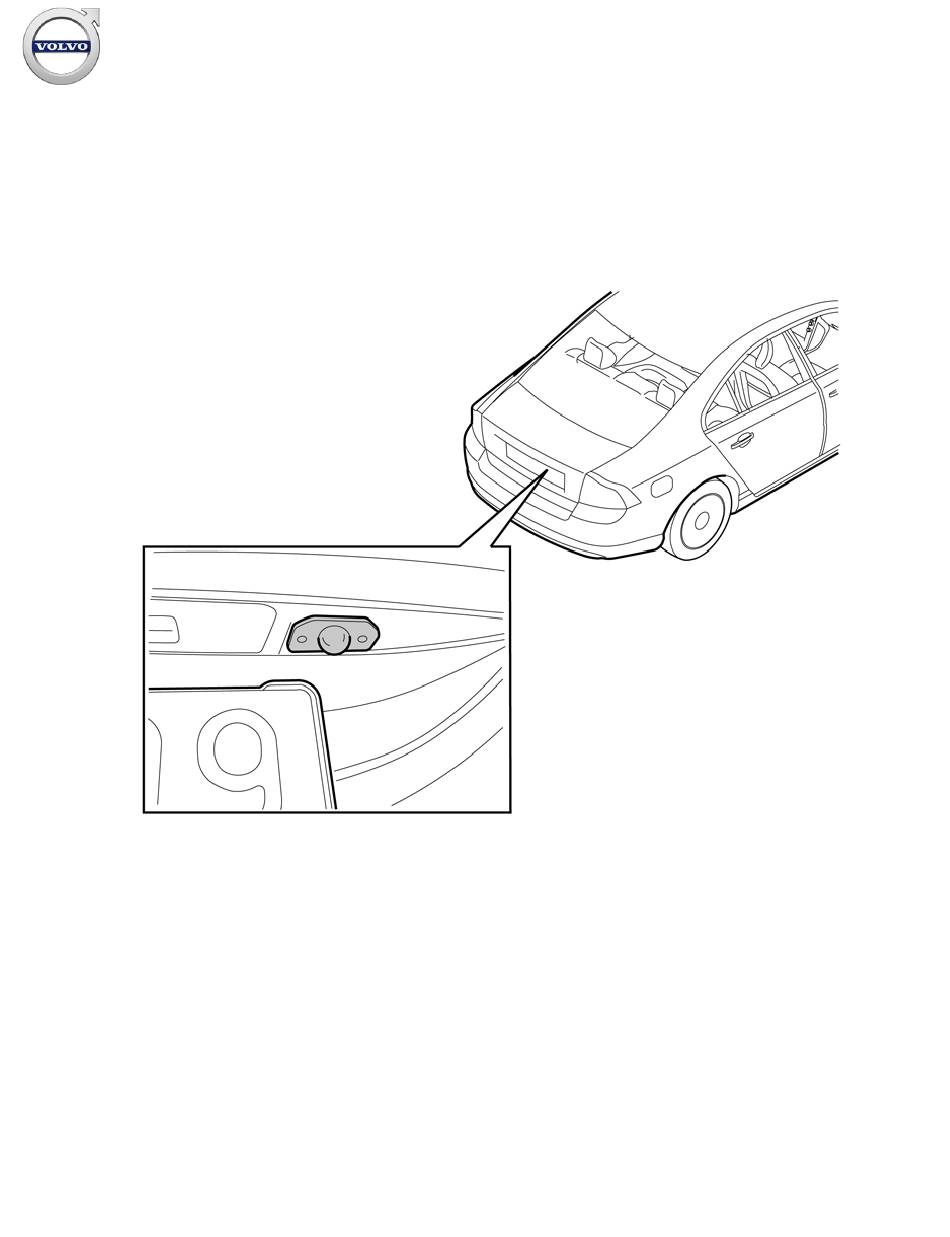

Parking assistance, camera, rear
Parking assistance, camera, rear
Parking assistance, camera, rear- 31428063 - V1.0
Page 1 / 57

Advertisement

loading
Need help?

Need help?

Do you have a question about the 31428061 and is the answer not in the manual?

Questions and answers

Related Manuals for Volvo 31428061

Summary of Contents for Volvo 31428061

  • Page 1 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Instruction No Instruction No Version Version Part. No. Part. No. 31428063 31428063 31428061, 31428882 31428061, 31428882 Parking assistance, camera, rear Parking assistance, camera, rear IMG-258000 IMG-258000 © Volvo Car Corporation Parking assistance, camera, rear- 31428063 - V1.0...
  • Page 2 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Equipment IMG-242205 IMG-345497 IMG-239664 A0000192 IMG-239660 IMG-239446 IMG-332313 IMG-333293 IMG-333288 IMG-353696 © Volvo Car Corporation Parking assistance, camera, rear- 31428063 - V1.0 Page 2 / 57...
  • Page 3 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden IMG-346651 © Volvo Car Corporation Parking assistance, camera, rear- 31428063 - V1.0 Page 3 / 57...
  • Page 4 Explanatory text is also given for more complicated steps. In the event of any problems with the instructions or the accessory, contact your local Volvo dealer. Note! Some steps in these installation instructions are presented with illustration only.
  • Page 5 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Remove the warning triangle from the trunk lid panel. Remove the trunk lid's inner handle by first sliding it upwards and then bending it out at the lower edge using a weatherstrip tool.
  • Page 6 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Remove the clips from the trunk lid's panel and remove the panel. IMG-254045 Fold together the cargo compartment carpet (1, 2) and remove IMG-249177 © Volvo Car Corporation Parking assistance, camera, rear- 31428063 - V1.0...
  • Page 7 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Detach the rubber weatherstrips from the trunk lid opening. IMG-226721 Remove the trunk lid's sill trim panel. It is secured by two clips at the front edge (1) and two at the upper edge (2).
  • Page 8 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Remove the seat cushion (1) by pulling up its front edge, pulling it forwards and then lifting it out. Detach the two connectors for seat heating underneath the seat cushion. IMG-254103 Fold the backrest forward.
  • Page 9 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Remove the three clips at the upper edge of the side panel and the four plastic nuts at the lower edge. Remove the cargo compartment lighting connector. Lift out the side panel.
  • Page 10 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Use holesaw bit, part.no 9997241 (Ø28.6 mm (1 1/8")), and enlarge the hole. File down the edges of the holes. Remove any swarf. Apply primer part no. 9437350 around the hole edges and allow to dry.
  • Page 11 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Use holesaw bit part no. 9997241 (Ø28.6 mm (1 1/8")) and enlarge the hole. File down the edges of the holes. Remove any swarf. Apply primer part no. 9437350 around the hole edges and allow to dry.
  • Page 12 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Remove the trunk lid's trim strip by carefully prying it off from the trunk lid and number plate lighting's panel. It is securely fastened and will eventually break. New strip included in the kit.
  • Page 13 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Remove the rubber strip. IMG-346689 Remove the panel. IMG-338119 © Volvo Car Corporation Parking assistance, camera, rear- 31428063 - V1.0 Page 13 / 57...
  • Page 14 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden IMG-346676 IMG-346681 © Volvo Car Corporation Parking assistance, camera, rear- 31428063 - V1.0 Page 14 / 57...
  • Page 15 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden IMG-346677 IMG-346682 © Volvo Car Corporation Parking assistance, camera, rear- 31428063 - V1.0 Page 15 / 57...
  • Page 16 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Remove the sill panel in the door opening for the left-hand rear door by carefully pulling it upwards until the four clips release. M8502823 Release the catch. IMG-344717 © Volvo Car Corporation Parking assistance, camera, rear- 31428063 - V1.0...

  • Page 17: Remove The Panel

    Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden IMG-344721 Remove the panel. IMG-344722 © Volvo Car Corporation Parking assistance, camera, rear- 31428063 - V1.0 Page 17 / 57...
  • Page 18 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Remove the screws. IMG-341879 Unplug the connector. IMG-341941 © Volvo Car Corporation Parking assistance, camera, rear- 31428063 - V1.0 Page 18 / 57...
  • Page 19 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Remove the panel. IMG-349876 Remove the screws. Remove the panel. IMG-349877 © Volvo Car Corporation Parking assistance, camera, rear- 31428063 - V1.0 Page 19 / 57...
  • Page 20 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Vehicles with 5 inch ICM display Note! If there is no connection, replace the display. IMG-348526 Vehicles with 7 inch display Disconnect the connector, if applicable. Use electrical tape to secure the connector in the existing cable.
  • Page 21 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Note! The number of connectors, cables and cable ties can vary in the vehicle's equipment level. Unplug the connectors. IMG-345776 Installing the parking camera Installing the parking camera Drill/cut out a hole for the camera in the number plate lighting panel.
  • Page 22 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Drill out the holes in the protruding lugs using a Ø2.5 mm (3/32 ") drill bit. Remove any swarf. IMG-255734 Take two screws and the camera with the seal from the kit.
  • Page 23 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Illustration A Take the cable harness with the two rubber grommets from the kit. The rubber grommet (1) with the shorter cable end must go through the trunk lid. Hook the cable holder onto the inner lower edge of the hinge section.
  • Page 24 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Insert a wire into the right-hand hole on the trunk lid where the panel for the number plate lighting is, and pull it forwards in the hole on the trunk lid. IMG-256323 Bind the connector to the shorter cable at the routed wire using tape.
  • Page 25 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Disconnect the cable from the wire. IMG-255740 Press the rubber grommet into the trunk lid securely. Note! Do not damage the rustproofing agent around the hole edges. Take the cable with the edge clip from the oval hole in the trunk lid and press the clip onto the hole edge.
  • Page 26 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Pull the cable down from the rubber grommet in the rear fender and along the existing cable harness to the left-hand tail lamp. Clamp the cable using tie straps from the kit as illustrated.
  • Page 27 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Use isopropanol and clean the marked surface on the boot lid where the chrome strip tape will sit. Wipe dry. IMG-255744 Take the new trim strip from the kit. Remove the protective film from the adhesive tape.
  • Page 28 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Note! During installation the underlying surface must be kept at a temperature of at least +15°C (59°F). Insert the trim strip clips in the corresponding holes on the panel. Ensure that the strip's locating pins align with the holes on the trunk lid.
  • Page 29 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Reinstall the panel on the inside of the trunk lid. IMG-255748 Reinstall the warning triangle's holder and press the middle pins of the clips in. IMG-255749 © Volvo Car Corporation Parking assistance, camera, rear- 31428063 - V1.0...
  • Page 30 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Take the new inner handle from the kit and press it onto the boot lid. Refit the warning triangle holder and the warning triangle on the boot lid. IMG-255750 Installing the parking assistance camera (PAC) Installing the parking assistance camera (PAC) Take the control module from the kit.
  • Page 31 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Take two Velcro strips from the kit and cut them in the middle to create four equal parts. IMG-222282 Press the Velcro strips two and two. IMG-222283 © Volvo Car Corporation Parking assistance, camera, rear- 31428063 - V1.0...
  • Page 32 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Remove the protective film from one side of the two attached Velcro strips. IMG-222285 Press the Velcro strips onto the cleaned surfaces of the control module. IMG-255752 © Volvo Car Corporation Parking assistance, camera, rear- 31428063 - V1.0...
  • Page 33 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Clean the surfaces under the tail lights with isopropanol. Wipe dry. IMG-255754 © Volvo Car Corporation Parking assistance, camera, rear- 31428063 - V1.0 Page 33 / 57...
  • Page 34 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Note! The adapter cable A was included in a previous version of the kit for the parking camera. The adapter cable B was included in a later version of the kit for the parking camera.
  • Page 35 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Remove the protective film from the installed Velcro strips. IMG-255753 Press the control module upwards firmly as high as possible on the flat surface under the tail lamp, according to the measurements illustrated.
  • Page 36 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Applies to cars with a TRM module. Remove the two connectors from the top of the TRM module. Remove the TRM module from the Velcro strips on the plate under the rear lamp and place to one side.
  • Page 37 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Remove the protective film from the Velcro strips. IMG-222285 Press the Velcro strips on to the cleaned surfaces on the parking assistance camera (PAC). IMG-255759 © Volvo Car Corporation Parking assistance, camera, rear- 31428063 - V1.0...
  • Page 38 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Note! The adapter cable A was included in a previous version of the kit for the parking camera. The adapter cable B was included in a later version of the kit for the parking camera.
  • Page 39 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Clean the marked surfaces on the control module with isopropanol. Wipe dry. IMG-273865 Remove the marked Velcro strip from the TRM module. IMG-255763 © Volvo Car Corporation Parking assistance, camera, rear- 31428063 - V1.0...
  • Page 40 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Take two Velcro strips from the kit and cut them in the middle to create four equal parts. IMG-222282 Clean the marked surfaces on the TRM module with isopropanol. Wipe dry. IMG-255764 ©...
  • Page 41 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Remove the protective film from one of the Velcro strips. IMG-222285 Press the Velcro strip on to the TRM module beside the other strip, as illustrated. IMG-255765 © Volvo Car Corporation Parking assistance, camera, rear- 31428063 - V1.0...
  • Page 42 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Press the two Velcro strips onto the TRM module's two existing Velcro strips. IMG-255766 Remove the protective film from the Velcro strips. IMG-255767 © Volvo Car Corporation Parking assistance, camera, rear- 31428063 - V1.0...
  • Page 43 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Press the TRM module onto the control module securely, as illustrated. IMG-273866 Connect the remaining green connector (1) on the adapter cable for the power supply to the corresponding socket in the TRM module.
  • Page 44 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Steps 70-71 only apply to cars with adapter cable B for the power supply Route the long ground lead in the adapter cable to the right- hand side of the rear harness.
  • Page 45 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Route the previously connected cable harness inside the insulation panel at the left-hand rear wheel arch and out through the hole in the body. Take a tie strap from the kit and secure the cable at the fuse holder's cable harness.
  • Page 46 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Remove the protective film from the foam tape. IMG-241925 Apply the foam tape around the wiring to protect the cable from sharp edges. IMG-353731 © Volvo Car Corporation Parking assistance, camera, rear- 31428063 - V1.0...
  • Page 47 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Pull out the B post panel at the lower edge until the two clips release. Continue to route the cable harness inside the B post panel and forwards in the car. Route the cable harness along the left-hand side, in front of the floor and insulation panels, up to the front edge of the door opening.
  • Page 48 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Only applies to right-hand drive vehicles Take a piece of wire and insert it by the air ducts through the hole for the screen. Pull it out to the left, above the glove compartment and out through the left-hand end of the dashboard.
  • Page 49 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Only applies to left-hand drive vehicles Take two tie straps from the kit and clamp the cable at the existing cable harnesses inside the dashboard as illustrated. IMG-255775 Applies to all vehicles with 5 inch ICM display Note! If there is no connection, replace the display.
  • Page 50 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden IMG-348747 Applies to all vehicles Note! The number of connectors, cables and cable ties can vary depending on the vehicle's equipment level. Plug in the connectors. IMG-348748 © Volvo Car Corporation Parking assistance, camera, rear- 31428063 - V1.0...
  • Page 51 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Applies to vehicles with 5 inch ICM display Plug in the connector. IMG-352266 Applies to vehicles with 7 inch ICM display Plug in the connector. IMG-352267 © Volvo Car Corporation Parking assistance, camera, rear- 31428063 - V1.0...
  • Page 52 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Applies to all vehicles Reinstall the panel. Install the screws. Reinstall the detached components in reverse order. IMG-349904 Removal Removal Note! Orientation view IMG-382371 © Volvo Car Corporation Parking assistance, camera, rear- 31428063 - V1.0...
  • Page 53 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden IMG-381005 IMG-381006 © Volvo Car Corporation Parking assistance, camera, rear- 31428063 - V1.0 Page 53 / 57...

  • Page 54: Accessory Installation

    Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden IMG-381020 IMG-380996 Accessory installation © Volvo Car Corporation Parking assistance, camera, rear- 31428063 - V1.0 Page 54 / 57...
  • Page 55 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Accessory installation Install the component from the accessory kit. IMG-382374 Installation Installation Reconnect the battery negative lead IMG-336901 © Volvo Car Corporation Parking assistance, camera, rear- 31428063 - V1.0 Page 55 / 57...
  • Page 56 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Caution! When the ignition is to be switched on for the first time after the battery has been disconnected, this must be done whilst by standing outside the vehicle, stretching your arm in and avoiding the working area for the airbags.
  • Page 57 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Perform a function test as follows: Engage reverse gear. The display is activated. Wait for the message "Update Environment" to appear on the screen. Follow the on-screen instructions. Switch off the ignition for at least 10 seconds.
