Volvo 31296556 Installation Instructions Manual

Volvo 31296556 Installation Instructions Manual

Camera, xc90
Hide thumbs

Advertisement

Quick Links

Download this manual
Installation instructions, accessories
Volvo Car Corporation Gothenburg, Sweden
Instruction No
Instruction No
Version
Version
31270162
31270162
1.2
1.2
IMG-242200
IMG-242200
© Volvo Car Corporation
Part. No.
Part. No.
31296556
31296556

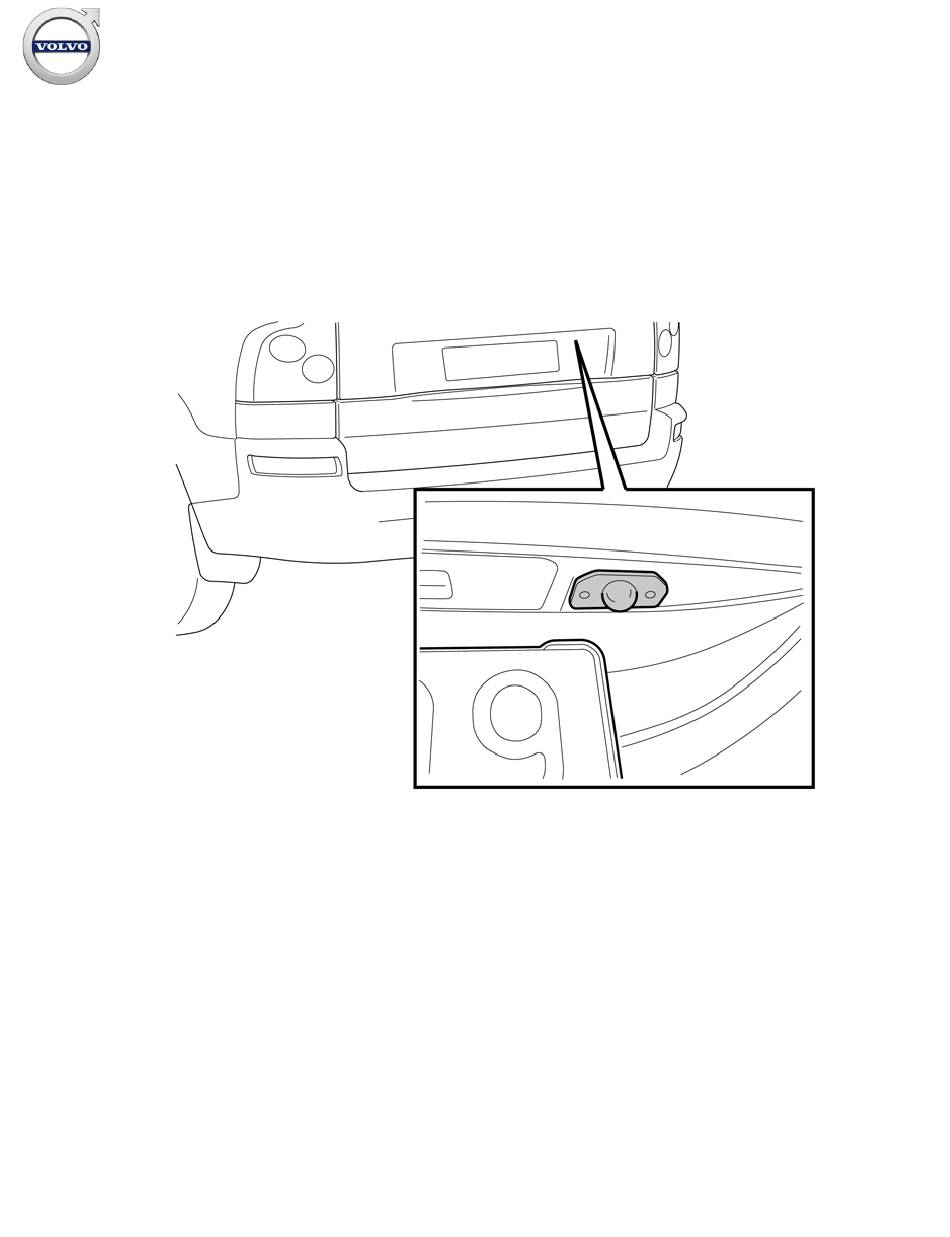

Parking assistance, camera, XC90
Parking assistance, camera, XC90
Parking assistance, camera, XC90- 31270162 - V1.2
Page 1 / 64

Advertisement

loading
Need help?

Need help?

Do you have a question about the 31296556 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Volvo 31296556

Summary of Contents for Volvo 31296556

  • Page 1 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Instruction No Instruction No Version Version Part. No. Part. No. 31270162 31270162 31296556 31296556 Parking assistance, camera, XC90 Parking assistance, camera, XC90 IMG-242200 IMG-242200 © Volvo Car Corporation Parking assistance, camera, XC90- 31270162 - V1.2...
  • Page 2 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Equipment A0000162 IMG-239660 IMG-239942 IMG-240693 IMG-239981 IMG-246925 IMG-240675 IMG-239664 IMG-242205 IMG-274123 © Volvo Car Corporation Parking assistance, camera, XC90- 31270162 - V1.2 Page 2 / 64...
  • Page 3 Explanatory text is also given for more complicated steps. In the event of any problems with the instructions or the accessory, contact your local Volvo dealer. Note! For cars with an accessory electronic module (AEM), the existing cable harness between the accessory electronic module (AEM) and the rear electronic module (REM) must be replaced (steps 51-66).
  • Page 4 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Apply tape to the boot lid to protect the finish. IMG-242208 Position the template as illustrated. IMG-242209 © Volvo Car Corporation Parking assistance, camera, XC90- 31270162 - V1.2 Page 4 / 64...
  • Page 5 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Make a mark according to the template's inner rectangle. IMG-242210 Use a short drill bit and drill holes according to the template. Note! Do not drill through the template. IMG-242211 © Volvo Car Corporation Parking assistance, camera, XC90- 31270162 - V1.2...
  • Page 6 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Drill three overlapping holes as illustrated. Note! Use a short drill bit. IMG-242212 Cut out along the inside of the marking. The marking should still be visible. Clean up the saw cuttings using a vacuum.
  • Page 7 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Open the boot lid fully. IMG-242214 Remove the border around the handle by pressing in the two catches with a screwdriver (1) and at the same time pry up the outer edge using a weatherstrip tool (2).
  • Page 8 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Remove the lamp. Unplug the connector. IMG-242216 Remove the screws. Pull the panel downwards until all the clips release. IMG-242218 © Volvo Car Corporation Parking assistance, camera, XC90- 31270162 - V1.2 Page 8 / 64...
  • Page 9 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Remove the centre panel and the right-hand side panel. IMG-242219 Mark out and drill with the holesaw as illustrated. Vacuum. IMG-242220 © Volvo Car Corporation Parking assistance, camera, XC90- 31270162 - V1.2...
  • Page 10 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Mark out and drill with the holesaw as illustrated. Vacuum. IMG-242221 Applies to cars without vibration damper Mark out and saw out the hole as illustrated. Vacuum. IMG-242222 © Volvo Car Corporation Parking assistance, camera, XC90- 31270162 - V1.2...
  • Page 11 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Applies to cars with vibration damper installed Remove the vibration damper by removing the three screws. IMG-246926 Remove the rear roof panel covers and the screws beneath them. Carefully pry off the panel at the rear edge. Use a plastic weatherstrip tool.
  • Page 12 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Disconnect the washer hose. IMG-242224 Loosen the rubber pass-through and pull out the washer hose. IMG-242225 © Volvo Car Corporation Parking assistance, camera, XC90- 31270162 - V1.2 Page 12 / 64...
  • Page 13 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Take the tail that is foam-covered about 100 mm on the cable to camera lens and thread through the hole. IMG-242226 Insert the cable through the rubber grommet. The end of the grommet that has a lip should sit in the body and the part without a lip should sit in the cargo compartment.
  • Page 14 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Thread a wire or cable through the drilled hole down to the washer hose. IMG-242228 Tape the cable to the camera on the wire or cable that has been threaded through the hole.
  • Page 15 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Route the cable out through the hole. IMG-242231 Press the cable clip in the hole. If the hole is being used, secure it by the existing cable with a cable tie. IMG-242232 ©...
  • Page 16 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Refit the rubber pass-through and adjust the length of the cable from the clip to the rubber pass-through. IMG-242233 Route the cable between the rear window and lid as illustrated. IMG-242234 © Volvo Car Corporation Parking assistance, camera, XC90- 31270162 - V1.2...
  • Page 17 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Thread the cable through the hole. IMG-242235 Place the template over the hole for the camera lens (inside the lid). Note! Position it the same way/direction as when marking the hole in section 4.
  • Page 18 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Route the cable through the template and hole. IMG-242237 Fit the cable connector on the camera lens. IMG-242238 © Volvo Car Corporation Parking assistance, camera, XC90- 31270162 - V1.2 Page 18 / 64...
  • Page 19 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Screw the right-hand screw fully in the camera. Align the template so that the right-hand hole in the template is directly above the right-hand hole in the lid. Hold the template in position (inside the hole in the lid) and, at the same time, tighten the camera's right-hand screw so it holds.
  • Page 20 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Slide the driver's seat fully forwards and then fully upwards from the rear edge. Remove the three screws in the battery holder. Lift the battery holder out. Remove the battery cover. R3100130 Turn the ignition key to position 0.
  • Page 21 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Remove the hatch on the left-hand side of the cargo compartment. IMG-242241 Remove the panel. IMG-242242 © Volvo Car Corporation Parking assistance, camera, XC90- 31270162 - V1.2 Page 21 / 64...
  • Page 22 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Pull off the rubber strip on the rear edge of the door opening for the left-hand rear door opposite the left C-post panel. Carefully pry off the left-hand C-post panel sides at the top. Use a plastic weatherstrip tool.
  • Page 23 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Fold out the load securing eyelet. Take a scriber or special tool part no.9995919 and insert the angled tip in the hole in the top edge of the cover. Twist the scriber so it grips the rear of the cover (1) and pull it loose.
  • Page 24 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Fold up the left-hand seat in the third row of seats. Remove the screws (2) on the load securing eyelets. Remove the cover (3), by prying off using a weatherstrip tool or a small screw driver.
  • Page 25 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Preparations, passenger compartment Insert a screwdriver through the hole (1) on the seat link and press in the catch. Move the link backwards by prizing with a screwdriver between the seat runner and the link.
  • Page 26 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Pull loose the sill molding on the front edge then straight up. Angle out the sill molding from the B-post panel. IMG-242246 Press the catch (1) in and remove the front seat link.
  • Page 27 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Press in the catches (1) and remove the seat link as illustrated. Remove the screw. R8504310 Fold down the backrest. Remove the seat links and bolts. Lift out the seat. Caution! Exercise care when doing this so that the trim or door panels are not damaged.
  • Page 28 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Loosen the upper part of the sill moulding on the rear edge and loosen the seat belt from the end fitting. The belt is loosened by carefully pressing with a weatherstrip tool on the lock lug so that the seat belt releases from the end fitting.
  • Page 29 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Steps 51-66 apply to cars with an accessory electronic module (AEM) installed Removal, cable harness Remove the right-hand side floor hatch (1) in the cargo compartment. R8504158 Remove the lower folding side panel on the right-hand side.
  • Page 30 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Illustration A Remove the two screws in the bracket for the accessory electronic module (AEM). Illustration B Tilt the module so that the 4-pin black connector can be disconnected. Illustration C Unplug the connector.
  • Page 31 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Remove the cable ties from around the cable harness to the accessory electronic module (AEM) along the rear member. Disconnect the ground lead. IMG-274171 Remove the Rear Electronic Module (REM) by opening the lock (1) on the top of the unit.
  • Page 32 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Press in the catch on the rear brown connector in the fuse holder in the cargo compartment, turn the lock arm up as far as it will go and pull out the connector.
  • Page 33 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Remove the red (R) cable from terminal 22. R3703512 Press in the catch on the gray connector on the rear of the fuse holder in the cargo compartment. Turn the lock arm up as far as it will go and pull out the connector.
  • Page 34 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Carefully prise apart the sides of the connector holder in the ends so that the connector can pass by the retaining hooks. Pull out the connector. M3703366 Remove the green (GN) cable from terminal 19 and white (W) from terminal 30 in the connector.
  • Page 35 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Installing the cable harness Take the new cable harness (purchased separately), marked A in the kit image and place it behind the battery. Pull the cable end with black 4-pin connector through the hole in the rear edge of the right-hand cargo floor support, up to the accessory electronic module (AEM).
  • Page 36 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Illustration A Connect the black 4-pin connector to the accessory electronic module (AEM). Illustration B Illustration C Reinstall the module and tighten using the two screws. IMG-274224 IMG-274225 IMG-274226 © Volvo Car Corporation Parking assistance, camera, XC90- 31270162 - V1.2...
  • Page 37 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Take five cable ties from the kit and secure the wiring harness to the existing wiring harness as illustrated. Remove the ground screw and connect the ground lead (1) of the new wiring harness. Tighten the ground screw securely.
  • Page 38 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Connect the green (GN) cable to terminal 19 in the gray connector that was disconnected from the fuse holder, and the white (W) to terminal 30. Note! Make a note of the position number of the connector. The position numbers are located on the ends of the connector and in the bottom of the electronic control module.
  • Page 39 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Take a Velcro fastener and cut it off 90 mm (3 1/2") from the edge. R3603615 Remove the protective tape from the Velcro fasteners. A0000335 © Volvo Car Corporation Parking assistance, camera, XC90- 31270162 - V1.2...
  • Page 40 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Attach both Velcro fasteners to the embossing as illustrated. IMG-242249 Clean the underneath of the parking assistance camera (PAC) using isopropanol. IMG-242250 © Volvo Car Corporation Parking assistance, camera, XC90- 31270162 - V1.2...
  • Page 41 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Take a Velcro fastener and cut it off 75 mm (3) from the edge. R3603612 Remove the protective tape from the Velcro fasteners. R3603616 © Volvo Car Corporation Parking assistance, camera, XC90- 31270162 - V1.2...
  • Page 42 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Secure the Velcro fasteners on the control module as illustrated. IMG-242251 Connect the three connectors to the control module. IMG-242252 © Volvo Car Corporation Parking assistance, camera, XC90- 31270162 - V1.2 Page 42 / 64...
  • Page 43 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Secure the control module on the newly attached Velcro fasteners. Press hard so that sits firmly. IMG-242253 Steps 77-85 apply to cars with a trailer module (TRM) installed Clean the surfaces, as illustrated, on the trailer module (TRM) using isopropanol.
  • Page 44 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Clean the underneath of the parking assistance camera (PAC) using isopropanol. Wipe dry. IMG-242255 Remove the two Velcro fasteners from the kit and cut them in the middle. IMG-222282 © Volvo Car Corporation Parking assistance, camera, XC90- 31270162 - V1.2...
  • Page 45 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Press the Velcro pieces together. IMG-222283 Remove the protective film on one side of the Velcro fasteners. IMG-222285 © Volvo Car Corporation Parking assistance, camera, XC90- 31270162 - V1.2 Page 45 / 64...
  • Page 46 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Press the Velcro fasteners onto the parking assistance camera (PAC) as illustrated. IMG-242256 Remove the protective film from the Velcro fasteners. IMG-242257 © Volvo Car Corporation Parking assistance, camera, XC90- 31270162 - V1.2...
  • Page 47 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Connect the three connectors to the control module. IMG-242258 Place the parking assistance camera (PAC) on the trailer module (TRM). It must be positioned so that the modules are edge-to-edge at the rear edge.
  • Page 48 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Connecting the rear electronic module (REM) Steps 86-89 apply to cars without an accessory electronic module (AEM) Remove the Rear Electronic Module (REM) by opening the lock (1) on the top. Tip the module forward and lift it out of the mountings (2).
  • Page 49 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Carefully prise apart the sides of the connector holder in the ends so that the connector can pass by the retaining hooks. Pull out the connector. M3703366 Note! Make a note of the position number of the connector. The position numbers are located on the ends of the connector and in the bottom of the electronic control module.
  • Page 50 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Steps 90-95 apply to cars with an accessory electronic module (AEM) installed Connect the large black female connector in the pre-routed cable harness, to the connector for towbar wiring in the fuse holder.
  • Page 51 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Connect the large black female connector in the pre-routed cable harness to the fuse holder. Connect the towbar wiring connector, which was disconnected from the fuse holder to the corresponding one in the routed cable harness.
  • Page 52 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Connect the large black female connector in the pre-routed cable harness to the fuse holder. Connect the towbar wiring adapter's connector, which was disconnected from the fuse holder to the corresponding one in the routed cable harness.
  • Page 53 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Connection to multimedia module (MMM) Route both adapter cables (5 way green and 12 way gray connector) along the molding and up to the driver's seat. IMG-242261 Disconnect the two connectors on the multimedia module (MMM).
  • Page 54 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Connect the pre-routed adapter cables to the multimedia module (MMM) and to respective disconnected connectors. Note! Route the new cables under the existing cables. IMG-242263 Place the connectors and excess wiring in the joint under the carpet.
  • Page 55 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Installation, ground strip Insert the tool's hook between the dashboard and the louvre. Turn the tool 90° and pull the louvre straight up. IMG-246927 Remove the five screws. IMG-246928 © Volvo Car Corporation Parking assistance, camera, XC90- 31270162 - V1.2...
  • Page 56 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Applies to cars without a centrally mounted loudspeaker Lift up the monitor unit and place it on the dashboard. Note! Place some protection under the monitor unit so as not to damage the dashboard.
  • Page 57 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Take the earth braid and foam tape bit from the kit. Cut off the foam tape lengthways in two equal pieces. Cover the earth braid with foam tape so that there is no foam tape on the cable terminals.
  • Page 58 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Applies to cars without a centrally mounted loudspeaker Refit the monitor unit and at the same time guide the earth braid up through the hole in front of the monitor. Remove the left-hand screw for the monitor.
  • Page 59 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Steps 108-113 apply to cars with a centrally mounted loudspeaker Remove the three screws for the monitor. Remove the monitor by first angling it backwards at the lower edge and then guiding it out.
  • Page 60 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Measure and mark out two points according to the image. IMG-248725 Pre-drill in the centers of the markings using a Ø 2mm (5/64") diameter drill bit. Then drill out the holes. Use a Ø 8mm " (5/16") drill bit.

  • Page 61: Finishing Work

    Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Reinstall the monitor and tighten using two screws as illustrated. IMG-248727 Take the loose end of the ground strip and thread it through the drilled holes from underneath. Secure the cable terminal using the screw for the monitor and tighten.
  • Page 62 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Finishing work Install: the sill trim panels. panel over the joint between the door sills. seat belt. Note! Check that the seat belt is secure by jerking it hard in an upwards direction.
  • Page 63 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Download software (application) for the accessory's function according to service information in VIDA. See VIDA or accessories catalogue for article number on software. IMG-242268 Perform a function test as follows Engage reverse gear Activate the screen for RTI Wait for the message "Update Environment"...
  • Page 64 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Check the position of the camera using the calibration program. See VIDA under "Diagnostics/Vehicle communication/Advanced". Note! If the camera lens cannot be correctly positioned, remove the lens and drill out the two holes in the tailgate for the screws. If necessary, file the rectangular holes so that the camera lens can be adjusted to the correct position.
