Installation instructions, accessories
Volvo Car Corporation Gothenburg, Sweden
Instruction No
Instruction No
Version
Version
31428626
31428626
1.1
1.1

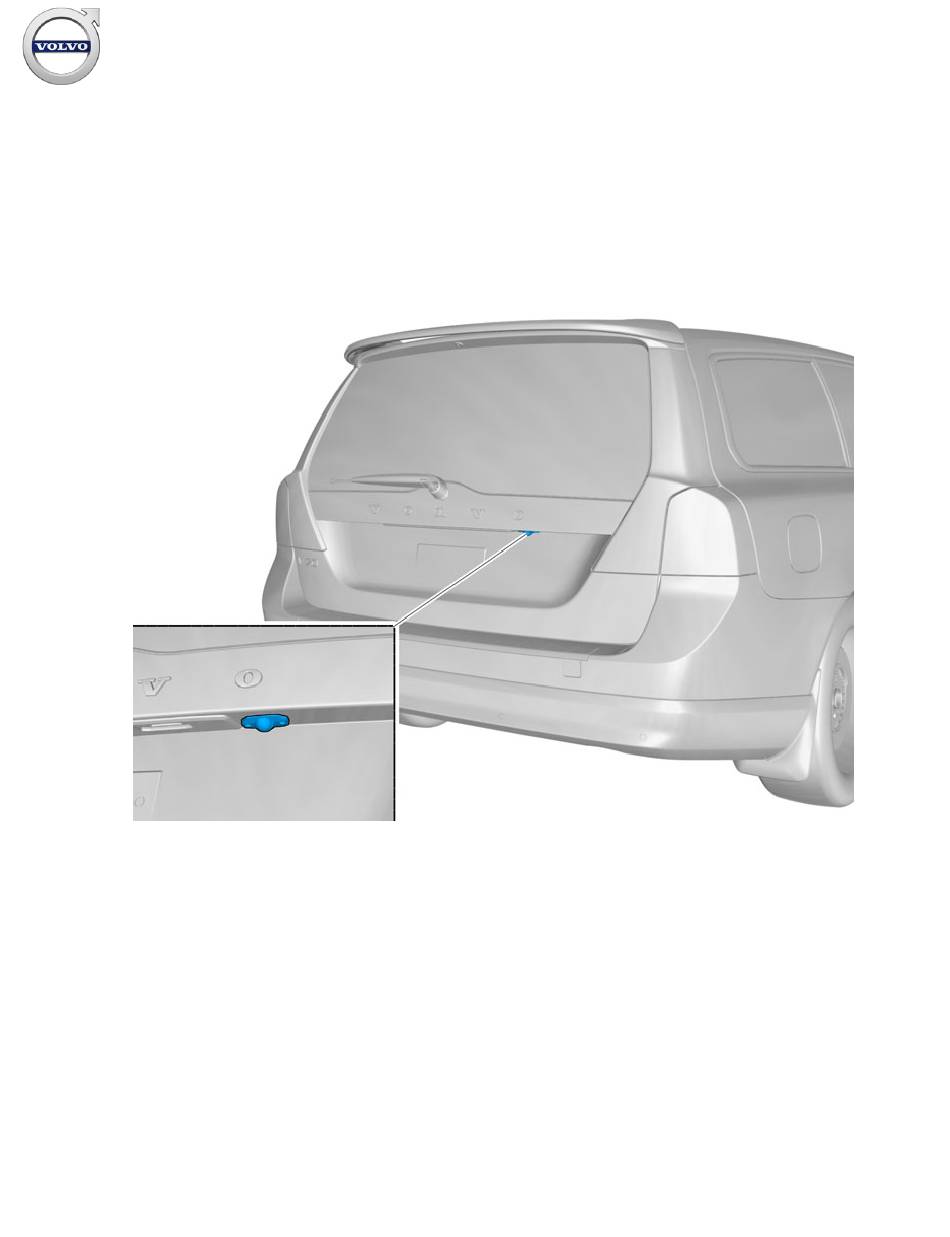

Parking assistance, camera, rear. For Sensus Connect
Parking assistance, camera, rear. For Sensus Connect
IMG-350196
IMG-350196
© Volvo Car Corporation
Part. No.
Part. No.
31428062
31428062
Parking assistance, camera, rear. For Sensus Connect- 31428626 - V1.1
Page 1 / 56

Advertisement

loading
Need help?

Need help?

Do you have a question about the 31428062 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Volvo 31428062

Summary of Contents for Volvo 31428062

  • Page 1 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Instruction No Instruction No Version Version Part. No. Part. No. 31428626 31428626 31428062 31428062 Parking assistance, camera, rear. For Sensus Connect Parking assistance, camera, rear. For Sensus Connect IMG-350196 IMG-350196 © Volvo Car Corporation Parking assistance, camera, rear.
  • Page 2 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Equipment IMG-242205 IMG-345497 IMG-239664 IMG-239660 IMG-240675 IMG-240693 IMG-239981 IMG-317443 IMG-246925 IMG-353611 © Volvo Car Corporation Parking assistance, camera, rear. For Sensus Connect- 31428626 - V1.1 Page 2 / 56...
  • Page 3 Explanatory text is also given for more complicated steps. In the event of any problems with the instructions or the accessory, contact your local Volvo dealer. Note! Some steps in these installation instructions are presented with illustration only.
  • Page 4 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Turn the ignition key to position 0. Disconnect the battery negative lead. Note! Wait at least three minutes before unplugging the connectors or removing other electrical equipment. IMG-335491 Remove the gas strut's lower mounting.
  • Page 5 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden IMG-268004 IMG-268005 © Volvo Car Corporation Parking assistance, camera, rear. For Sensus Connect- 31428626 - V1.1 Page 5 / 56...
  • Page 6 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden IMG-268006 Preparations, trunk lid Preparations, trunk lid Remove the two screws from the opening handle. IMG-268007 © Volvo Car Corporation Parking assistance, camera, rear. For Sensus Connect- 31428626 - V1.1 Page 6 / 56...
  • Page 7 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Remove the screw at the lower edge of the trunk lid's upper panel, on both sides. Unhook the lower edge of the panel from the lower panel, on both sides. IMG-268009 Remove the trunk lid panel by first pulling it loose at the edges and then the upper edge.
  • Page 8 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Remove the lower panel by prying it off around the edge using a weatherstrip tool. Then carefully pull it off so that all the clips on the inside release. If the car is equipped with an electric door closer, remove its connector.
  • Page 9 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Remove the screw holding the ceiling panel and carefully pry it loose. It is attached by thirteen clips. IMG-268013 Pull off the rubber molding on the left-hand side in the cargo compartment opening.
  • Page 10 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Carefully pry off the D-pillar panel at the top edge and pull off/ up from the side panel. It is secured by four clips. IMG-268015 Remove the screws holding the trunk lid's sill at the rear crossmember.
  • Page 11 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Carefully pull off the trunk lid's sill panel, it is secured by six clips. IMG-268016 Remove the seat cushion by pulling it up at the front edge on both sides. It is secured by two holders on the lower side.
  • Page 12 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Fold the left-hand backrest forward. Remove the side cushion on the left by first pulling it backwards at the upper edge until the hooks (1) release. Then pull it inwards slightly until the hook (2) releases, and upwards until the locating pin (3) disengages from the mounting at the rear edge.
  • Page 13 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Carefully pull off the top panel from the side panel, it is secured by a clip at the front edge and a locating pin at the rear edge. Unhook the seat belt and place the panel to one side.
  • Page 14 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden IMG-268027 Installing the camera Installing the camera IMG-353617 © Volvo Car Corporation Parking assistance, camera, rear. For Sensus Connect- 31428626 - V1.1 Page 14 / 56...
  • Page 15 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Remove the license plate and holder. Take the template from the kit. Place it to the right of the plate lighting panel, so that it is against it and against the trunk lid's vertical section.
  • Page 16 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden First drill a hole for the saw blade. Carefully saw out the hole following the inside of the marking. The marking should remain visible. Adjust the size of the hole using a file if necessary.
  • Page 17 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Take the cable harness marked A in the kit image. Insert the cable end with the yellow marking through the drilled hole in the trunk lid. Place the template over the hole inside the trunk lid. The template must be turned with the arrow markings towards the trunk lid.
  • Page 18 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Screw the right-hand screw fully in the camera. Align the template so that the right-hand hole in the template is directly above the right-hand hole in the lid. Hold the template in position (inside the hole in the trunk lid) and, at the same time, tighten the camera's right-hand screw so it holds.
  • Page 19 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Remove the holders for the rubber grommet in the car body and trunk lid. They are secured by four surrounding catches. IMG-268036 Tape around the hole edges in the car body and on the trunk lid to avoid damaging the cable harness when working with it.
  • Page 20 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Illustrations A and B Secure the cable harness from the camera using a cable tie (1) in the usual cable tie for the cable harness (2). IMG-287103 IMG-287104 Insert the cable into the hole in the trunk lid and the rubber grommet's holder.
  • Page 21 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Apply three pieces of butyl tape to the trunk lid's right end as illustrated. IMG-268041 Place the cable harness from the camera inside the contact strip to the rear window's heating elements.
  • Page 22 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden In previous installation kits the receptacle housings are around the connector on the section of cable that is not equipped with chafe protection. Carefully poke up the four mounting brackets and remove the receptacle housings from the connector.
  • Page 23 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Carefully pull the connector through with the cable. Remove the tape and wire. IMG-268045 Insert the cable harness through the holder to the rubber grommet and the hole at the upper edge of the trunk lid opening.
  • Page 24 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Illustration A Take the receptacle housing section of the connector with the two metal strips from the kit. Carefully place the connector in the receptacle housing section with the round section (1) of the connector aligned in the corresponding cut-out (1) in the receptacle housing section.
  • Page 25 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Snap the clamp into place again around the rubber grommet with the lug (1) aligned in the hole (2). Do the same with the other clamp. IMG-268050 Press the rubber grommet into the car body at both ends.
  • Page 26 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Close the trunk lid and check that the rubber grommet is correctly positioned, it should be at the bottom of the trunk lid's frame. IMG-268052 Route the cable harness to the left towards the D pillar.
  • Page 27 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Continue to route the cable harness along the existing cable harness, under the rail, and forward between the brackets to the rail and wheel housing. Secure at the existing cable harness using two cable ties.
  • Page 28 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Remove the foam rubber from the insulation at the perforation. IMG-287223 Clean the area of the cargo compartment floor as illustrated. Use isopropanol. Wipe dry. IMG-287123 © Volvo Car Corporation Parking assistance, camera, rear. For Sensus Connect- 31428626 - V1.1...
  • Page 29 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Take the control module from the kit. Use isopropanol and clean the two polished surfaces on the control module. Wipe dry. IMG-255751 Take two Velcro straps from the kit and press them together edge to edge.
  • Page 30 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Cut off the Velcro straps in the center. IMG-222282 Remove the protective film from one side of the two attached Velcro strips. IMG-241925 © Volvo Car Corporation Parking assistance, camera, rear. For Sensus Connect- 31428626 - V1.1...
  • Page 31 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Press the Velcro strips onto the cleaned surfaces of the control module. IMG-255752 Remove the protective film from the installed Velcro strips. IMG-255753 © Volvo Car Corporation Parking assistance, camera, rear. For Sensus Connect- 31428626 - V1.1...
  • Page 32 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Position the control module on the floor so that it fits in the cut- out in the insulation. Secure the control module to the floor. Connect the routed cable connector to the control module.
  • Page 33 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Take the ground lead from the prerouted adapter cable. Route it backwards along the cable duct and the thin cable harness to the rear crossmember. IMG-353733 Pull the cable over to the right-hand side of the crossmember and connect it to the existing ground terminal.
  • Page 34 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Clamp the cable using cable ties in the existing cable harnesses. IMG-353735 Wash the rear crossmember using isopropanol where the ground lead is to be taped. Wipe dry. Use a wide piece of tape, silver tape/duct tape or similar.
  • Page 35 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Preparations, passenger compartment Remove the rubber strip. IMG-346689 Remove the panel. IMG-338119 © Volvo Car Corporation Parking assistance, camera, rear. For Sensus Connect- 31428626 - V1.1 Page 35 / 56...
  • Page 36 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden IMG-346676 IMG-346681 © Volvo Car Corporation Parking assistance, camera, rear. For Sensus Connect- 31428626 - V1.1 Page 36 / 56...
  • Page 37 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden IMG-346677 IMG-346682 © Volvo Car Corporation Parking assistance, camera, rear. For Sensus Connect- 31428626 - V1.1 Page 37 / 56...
  • Page 38 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Only applies to left-hand drive vehicles Release the catch. IMG-344717 IMG-344721 © Volvo Car Corporation Parking assistance, camera, rear. For Sensus Connect- 31428626 - V1.1 Page 38 / 56...
  • Page 39 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Remove the panel. IMG-344722 Remove the screws. IMG-341879 © Volvo Car Corporation Parking assistance, camera, rear. For Sensus Connect- 31428626 - V1.1 Page 39 / 56...

  • Page 40: All Vehicles

    Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Unplug the connector. IMG-341941 All vehicles Take the remaining cable harness and connect it to the control module. Route it under the member at the wheel housing, under the insulation and up to the door opening at the left-hand rear door.
  • Page 41 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Remove the foam tape from the kit and split it in the centre. IMG-354975 Remove the protective film from the foam tape. IMG-241925 © Volvo Car Corporation Parking assistance, camera, rear. For Sensus Connect- 31428626 - V1.1...
  • Page 42 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Apply the foam tape around the wiring to protect the cable from sharp edges. IMG-353731 Pull out the B pillar panel at the lower edge until the two clips release. Continue to route the cable harness inside the B pillar panel and forwards in the car.
  • Page 43 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Only applies to left-hand drive vehicles Route the cable harness inside the floor and insulation panels, up on the A pillar slightly, and then at an angle upwards, between the A pillar and the end panel, towards the dashboard.
  • Page 44 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Applies to all vehicles Take a tie strap from the kit and secure the cable in the hole on the end as illustrated. IMG-353636 Removal Removal Remove the panel. IMG-349804 © Volvo Car Corporation Parking assistance, camera, rear.
  • Page 45 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Remove the screws. IMG-349806 Remove the screws. IMG-345282 © Volvo Car Corporation Parking assistance, camera, rear. For Sensus Connect- 31428626 - V1.1 Page 45 / 56...
  • Page 46 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Cars with manual transmissions Release the lock, which is located inside the gear shift gaiter IMG-345747 IMG-347222 © Volvo Car Corporation Parking assistance, camera, rear. For Sensus Connect- 31428626 - V1.1 Page 46 / 56...
  • Page 47 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Cars with automatic transmissions IMG-345283 Release the shift-lock function. Place the gear lever in position D. IMG-345284 © Volvo Car Corporation Parking assistance, camera, rear. For Sensus Connect- 31428626 - V1.1 Page 47 / 56...
  • Page 48 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Remove the panel. IMG-341878 Remove the panel. IMG-346036 © Volvo Car Corporation Parking assistance, camera, rear. For Sensus Connect- 31428626 - V1.1 Page 48 / 56...
  • Page 49 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Detach the following components: 1. Fold back the mat 2. Unhook the clip 3. Unplug the connector IMG-340599 IMG-353601 © Volvo Car Corporation Parking assistance, camera, rear. For Sensus Connect- 31428626 - V1.1...
  • Page 50 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Remove the screws. IMG-353602 Remove the panel. IMG-347139 © Volvo Car Corporation Parking assistance, camera, rear. For Sensus Connect- 31428626 - V1.1 Page 50 / 56...
  • Page 51 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Vehicles with the 4C system IMG-345317 All vehicles Caution! Do not damage the hooks. Remove the panel. IMG-349826 © Volvo Car Corporation Parking assistance, camera, rear. For Sensus Connect- 31428626 - V1.1...

  • Page 52: Remove The Screws

    Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Remove the screws. IMG-340605 IMG-345296 © Volvo Car Corporation Parking assistance, camera, rear. For Sensus Connect- 31428626 - V1.1 Page 52 / 56...
  • Page 53 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden IMG-380815 Accessory installation Accessory installation IMG-380816 Accessory installation © Volvo Car Corporation Parking assistance, camera, rear. For Sensus Connect- 31428626 - V1.1 Page 53 / 56...

  • Page 54: Accessory Installation

    Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Accessory installation Connect the routed cable to the DVD unit as illustrated. IMG-384929 Installation Installation IMG-349948 Reinstall the detached components in reverse order. © Volvo Car Corporation Parking assistance, camera, rear. For Sensus Connect- 31428626 - V1.1...
  • Page 55 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Reconnect the battery negative lead IMG-336901 Warning! When the ignition is to be switched on for the first time after the battery has been disconnected, this must be done whilst by standing outside the vehicle, stretching your arm in and avoiding the working area for the airbags.
  • Page 56 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Download software (application) for the accessory's function according to service information in VIDA. See VIDA or accessories catalogue for article number on software. IMG-242268 Check Check Perform a function test as follows Engage reverse gear.
